What AC output should buyers and installers expect from Felicity IVGM16KLP3G1?

Felicity IVGM16KLP3G1 has a rated AC output of 16kW on 3L+N+PE output, with 220/380,230/400Vac(-20%~+15%) and 50/60 Hz(45~55Hz/55~65Hz) grid frequency. Use the 2/2+2 and 800V for inverter matching, and pair it with 40V~60V battery systems. It is built for battery-backed sites that need stable AC delivery, RS485/CAN communication, WiFi/4G monitoring, and 5 Years/10 Years.

Does this product support hire purchase in Uganda?

Some sellers provide in-house hire purchase plans for this product. Available plans, monthly installments, upfront payment, and terms are shown on this product page.

How do I apply for a solar loan or installment plan in Uganda?

Select an available financing plan on the product page, review payment schedule and terms, then continue with the application flow.

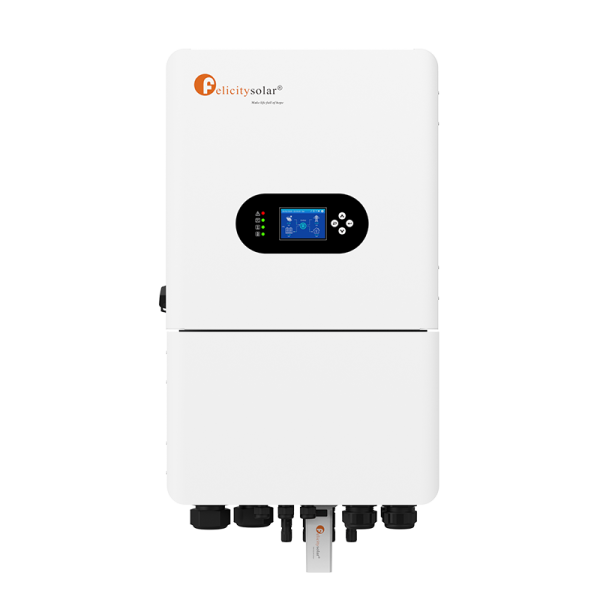

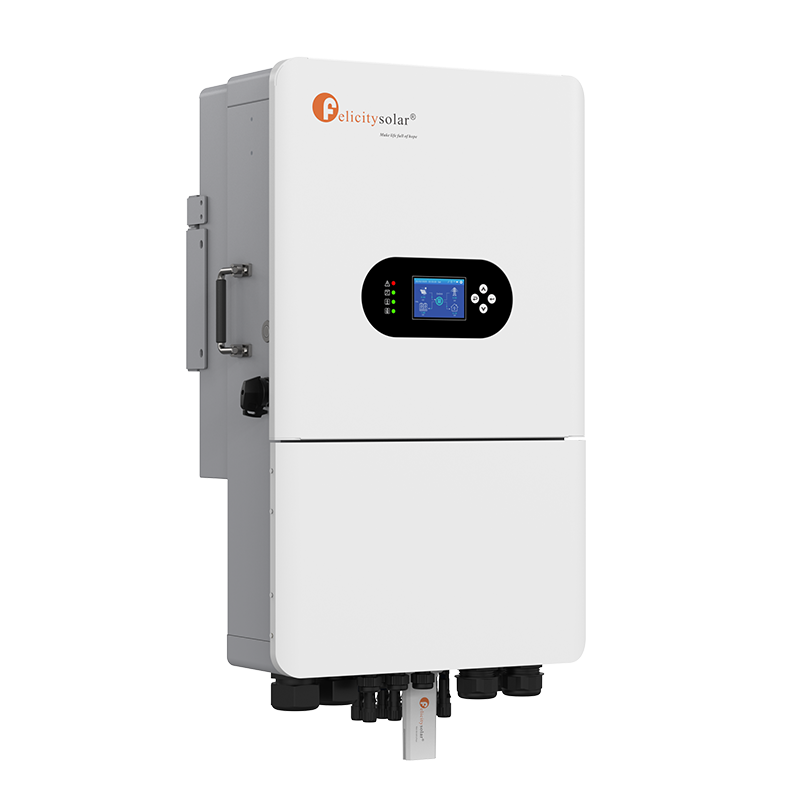

Felicity IVGM16KLP3G1 16kW Hybrid Inverter, Three Phase, 800V, Max MPPT 800V, Supports up to 25.6kW PV Input, 2 MPPTs, RS485/CAN, WiFi Monitoring, For Three-phase homes, Commercial offices, 5 Years/10 Years

Name: Felicity IVGM16KLP3G1 16kW Hybrid Inverter, Three Phase, 800V, Max MPPT 800V, Supports up to 25.6kW PV Input, 2 MPPTs, RS485/CAN, WiFi Monitoring, For Three-phase homes, Commercial offices, 5 Years/10 Years
Brand: Felicity
SKU: SM-CAT-GEN-00589
Price: 7969500.00 UGX
Availability: InStock

Felicity

0 out of 5 | 0 Ratings | Q&A

About this item

Product spotlights

Highlights: Felicity IVGM16KLP3G1 is a 16kW 800V Three Phase hybrid inverter in Uganda. It supports up to 25.6kW PV input and is built for Three-phase homes, Commercial offices, Retail premises where battery-backed continuity and stable AC output matter

UGX7,969,500 /Pcs

1 Days

VAT incl.

3 available

Minimum order qty 1

QTY

Order on WhatsApp

Compare With Similar capacity Hybrid Inverters

Estimate Shipping Time 1 Days

Sold by Masrcorp Solar Uganda

Message Seller

Brand Felicity

Products from this brand

Product Information

Technical specifications

Brand	Felicity	Model	IVGM16KLP3G1
Rated Power	16000	Max PV Input Power	25.6 W
Max Charging Current	300A	MPPT Voltage Range	160V-650V
Nominal Output Frequency	50/60 Hz(45~55Hz/55~65Hz)	Nominal Voltage	40 V
Number of MPPT Trackers	36+36(A)	Surge Power	15KW
Product Dimensions	750x450x268MM	Product Weight	(KG),60.2KG
Communication	RS485/CAN	Warranty	5 Years/10 Years
AC Output Rated Current	16.5 A	AC Wiring Mode	3L+N+PE
Anti-Islanding Protection	Yes	Arc Fault Circuit Interrupter (AFCI)	Yes
Battery Type	Li-Ion / Lead-acid	Chemistry	Li-Ion / Lead-acid
Current Rating	330	DC Component Monitoring	Yes
DC Polarity Reverse Connection Protection	Yes	DC Terminal insulation impedance Monitoring	Yes
Earth Fault Detection	Yes	Float Charge Voltage	40–60
Full Load DC Voltage Range	416V-800V	Ground Fault Current Monitoring	Yes
Ingress Protection	IP65	Input AC Voltage Range	220/380,230/400Vac(-20%~+15%)
Max AC Input Voltage	800V	Max PV Input Current	22.4kW
Max. AC Input/Output Apparent Power (VA)	17.6kVA	Max. Continuous AC Passthrough	21.8A
Min. DC Input Voltage	550V	Monitor Module	WiFi/4G
Output Over Current Protection	23.9A	Output Short Circuit Protection	Yes
Overcharge Protection	Yes	Peak Current (15s)	300
Protection	Yes	PV Start-up Voltage	160V
Rated AC Input/Output Active Power (W)	16 W	Residual Current (RCD) Detection	Yes
Safety	EMC/Standard,"IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2"	Safety Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Scalability (Parallel Units)	Max 10 units	SKU	SM-CAT-GEN-00589
Start Voltage	up Voltage,160V

Notice a wrong or outdated datasheet? Help us fix it.

Freelancers

Verified

Verified Solar Installers for this Product

View All

ETIENE MAATE

ElectroMechanical Engineer

Kampala

Project Management Solar Water heater Solar System Design

View Profile

Kizito Vincent

I am a technician dealing in hydro and solar power, security systems, networking...

Kampala

IT Support Electrical Repairs Battery Wiring

View Profile

Okitwi Francis

Certified solar technician based in Tororo

Tororo

Solar Installation Inverter Setup Solar System Design

View Profile

Ndawula Muhamadi

Hybrid Solar Wholesale Supplier & Installer Expert

Masaka

Solar Installation Solar System Design Solar Energy Audits

View Profile

Tamale Muhamad

Expert Solar Systems Designer & Installer – Powering Your Future!

Kampala

Solar Installation Solar Panel Cleaning Solar Water heater

View Profile

Osama Mathew

Solar | water pumps | Backup systems

Kampala

Lighting Troubleshooting CAD Design

View Profile

Francis Ekapuloni

Professional Solar Expert

Kampala

Solar Installation Solar Energy Audits

View Profile

ANITA

Solar system installation

Kampala

Electrical Repairs Appliance Repair Solar Installation

View Profile

Kibozeeyi John

Skilled Solar Installer – Expertise in Felicity, CWorth, & other quality brands

Kampala

Solar Installation Solar Panel Cleaning Solar System Design

View Profile

WASSWA Emmy

Solar installer

Bugiri

Electrical Repairs Solar System Design Electrical Installation

View Profile

Swipe/scroll to see more →

Description

Specs & details

Overview

Felicity IVGM16KLP3G1 is a 16kW 800V Three Phase hybrid inverter for Uganda power conditions. It supports up to 25.6kW PV input and is suitable for Three-phase homes, Commercial offices, Retail premises where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

SYSTEM TOPOLOGY: Three Phase architecture for compliant solar system design.
THREE-PHASE OUTPUT: Supports 220/380Vac or 230/400Vac operation with 3L+N+PE wiring for three-phase installations.
16KW RATED POWER: Delivers 16kW rated AC input/output active power for medium to large solar loads.
HIGH-VOLTAGE PV INPUT: Accepts PV strings up to 800V with MPPT range from 160V to 650V for flexible array design.
BATTERY COMPATIBILITY: Works with Li-ion and lead-acid batteries in the 40V to 60V range.
BMS AND MONITORING: Supports RS485/CAN communication with BMS and remote monitoring through WiFi or 4G.

Applications

Three-phase homes with higher daytime and backup power demand
Commercial offices requiring grid support and battery backup
Retail premises with three-phase loads and solar self-consumption
Small workshops and light industrial sites using 380V or 400V supply
Solar systems that combine high-voltage PV strings with low-voltage battery storage
Installations needing remote monitoring through WiFi or 4G

Product FAQs

Felicity IVGM16KLP3G1 is a 16kW Three Phase hybrid inverter in Uganda. Key specs include battery voltage range 40V~60V, MPPT layout 2 MPPTs, max PV input voltage 800V, max PV input power 25.6kW, rated AC output 16kW, communication RS485/CAN, monitoring WiFi/4G, warranty 5 Years/10 Years.

Browse live offers

For Felicity IVGM16KLP3G1, use max PV input voltage 800V, MPPT layout 2 MPPTs when designing strings.

Browse live offers Find technicians

Felicity IVGM16KLP3G1 allows up to 25.6kW PV input power. Use max PV input voltage 800V, MPPT layout 2 MPPTs for string sizing checks.

Browse live offers

Felicity IVGM16KLP3G1 is built for 40V~60V battery systems. The battery voltage range is 40V~60V, with maximum charging current 330A and maximum discharging current 330A.

Browse live offers

Felicity IVGM16KLP3G1 has a rated AC output of 16kW on 3L+N+PE output, with 220/380,230/400Vac(-20%~+15%) and 50/60 Hz(45~55Hz/55~65Hz) grid frequency.

Browse live offers Request quotes Find technicians

Compare verified seller pricing, warranty terms, authenticity, and installer support for Felicity IVGM16KLP3G1. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.

Browse live offers Compare models Request quotes
