Sosen 3.6kW Hybrid Inverter for Home and Small Business Backup 24VDC 100A MPPT 40-450VDC 230VAC Output IP20 Indoor (SSA-HL3K6-P1EU)
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
Sosen · Hybrid Inverters

Sosen 3.6kW Hybrid Inverter for Home and Small Business Backup 24VDC 100A MPPT 40-450VDC 230VAC Output IP20 Indoor (SSA-HL3K6-P1EU)

UGX944,000
☆☆☆☆☆ No reviews yet ·Questions (0)
Delivery in 7 days1-yr warranty
Sold by
Masrcorp Solar Uganda ✓
Delivery in 7 days · 10 In stock
UGX944,000
Want another price?Only one shop lists this right now. Send one request and other shops reply with their prices.
Similar products from other shops
Sukam 2kVA/1800W Hybrid Inverter for Home and Small Business Backup 12VDC 230VAC Output 80A MPPT 170-280VAC UPS Range LCD Display RS485 Communication (FX2000-12S) Sukam 2kVA/1800W Hybrid Inverter for Home and Small Business Backup 12... UGX1,100,000 Auto Solutions plus ltd Sukam 1.2kVA/1200W Hybrid Inverter for Home and Small Business Backup 12VDC 230VAC Output MPPT 20-100VDC 50A Charge Pure Sine Wave LCD Display (FX1000-12S) Sukam 1.2kVA/1200W Hybrid Inverter for Home and Small Business Backup... UGX770,000 Auto Solutions plus ltd SRNE 3kW 24V Hybrid Inverter for Home and Small Business Backup Single-Phase 230VAC Output 1 MPPT 30-90VDC 60A Solar Charging 80A Grid Charging Fan Cooling IP20 2-Year Warranty (HF2430S60-108) SRNE 3kW 24V Hybrid Inverter for Home and Small Business Backup Single... UGX1,062,000 Masrcorp Solar Uganda Sunsynk 36kW 48V Hybrid Inverter Dual MPPT Grid Tie Off Grid Smart Battery Charging Sb Innovations Uganda Sunsynk 36kW 48V Hybrid Inverter Dual MPPT Grid Tie Off Grid Smart Bat... UGX665,500 SB INNOVATIONS LTD
Ways to payAll options
Pay NowBank Transfer
Warranty and returns
Warranty
1 year · this product
Returns
7 Days · unused and not installed.
Refund
Replacement only
The warranty is this product's own (1 year). Returns and refunds follow Masrcorp Solar Uganda's signed policy. If the shop doesn't reply to a claim in 48 hours, SolarMarket steps in.
Complete your systemMatched to 24 V
Solar Panels
UGX429,000
Battery
UGX2,938,000
Cables, mounting and protection
UGX57,750
With this product:
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Brand Sosen Rated Power 3.6 KW
Max PV Input Power 5 KW Max Charging Current 100 A
MPPT Voltage Range 40~450 V Nominal Voltage 24
Number of MPPT Trackers 1/1 Product Dimensions 285*435*100 mm
Product Weight 6.5 KG Operating Temperature -10℃~+50℃
Battery Type Lithium / Lead-acid Chemistry Lithium / Lead-acid
Display LCD Display (Display Running Mode, Loads / Input / Output etc.) Humidity 20%～95% (Non-condensing)
Ingress Protection IP20, Indoor only Inverter Type 92.7%@24V d.c.
Max PV Input Current 18 A Max PV Voltage (DC) 500 V
Max. AC Input/Output Apparent Power (VA) 3.6 Max. continuous load current 20 A
Max. PV short circuit current 22 Maximum Charge Power 100 A
Noise <50 Output Over Current Protection 102%~110% 1min / 110%~130% 10s / 130%～150% 3s / 150% 0.2s
Parallel Operation No Power Factor 1
PV Start-up Voltage 120 V Rated AC Input/Output Active Power (W) 3.6
SKU SM-HYB-GEN-01219 Storage Temperature -15℃~+60℃

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

Sosen SSA-HL3K6-P1EU is a 3.6kW 24V hybrid inverter for Uganda power conditions. It supports up to 5kW PV input and is suitable for Home backup power, Small business solar, Off-grid solar where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

  • RATED POWER: 3.6kW continuous output with pure sine wave waveform, suitable for running lights, fridges, TVs, and small appliances.
  • BATTERY COMPATIBILITY: Works with 24V lithium or lead-acid batteries, with a maximum charge current of 100A for fast recharging.
  • MPPT SOLAR CHARGING: Single MPPT tracker with 40-450VDC input range and 5kW max PV array power, optimizing energy harvest from solar panels.
  • SWITCH TIME: Less than 10ms typical transfer time between grid and battery, ensuring uninterrupted power to connected loads.

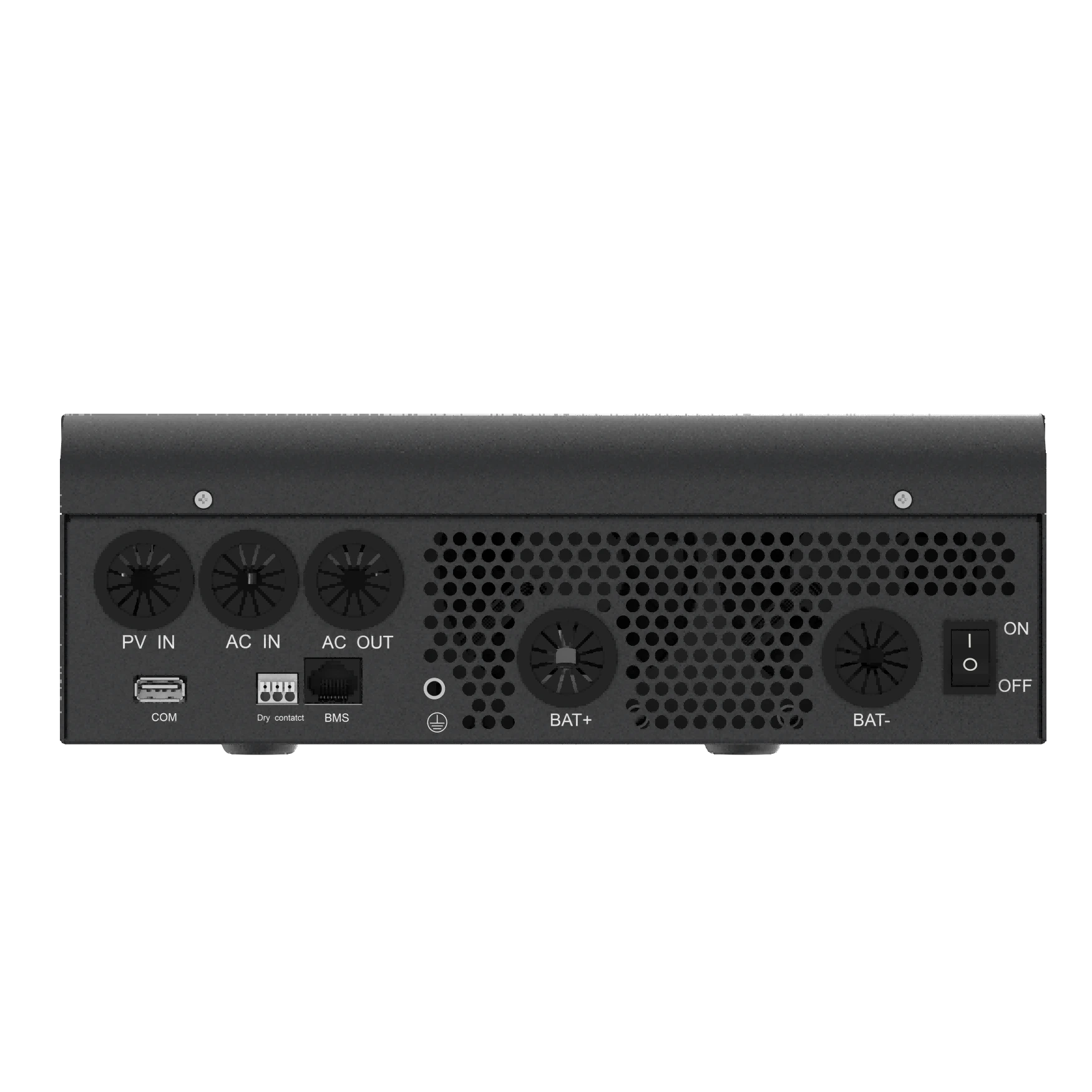

  • COMMUNICATION PORTS: Includes RS485, CAN, and dry contact interfaces; optional WiFi module for remote monitoring.
  • INDOOR INSTALLATION: IP20 protection rating, designed for indoor use only; compact dimensions (285x435x100mm) and lightweight at 6.5kg.

What's Included

  • Sosen SSA-HL3K6-P1EU Hybrid Inverter
  • User manual
  • Mounting brackets (if applicable)

Applications

  • Home backup power during grid outages
  • Small business solar power systems
  • Off-grid solar installations with 24V battery banks
  • Grid-tied solar systems with battery storage
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What are the key specs of Sosen SSA-HL3K6-P1EU in Uganda?
Sosen SSA-HL3K6-P1EU is a 3.6kW hybrid inverter in Uganda. Key specs include battery voltage range 24V, max PV input power 5kW, rated AC output 3.6kW, communication RS485/CAN, monitoring WiFi Monitoring.
What PV voltage limits should technicians use for Sosen SSA-HL3K6-P1EU?
For Sosen SSA-HL3K6-P1EU, use MPPT/operating voltage range the listed range, max PV input voltage the listed max PV voltage, and max PV input power 5kW when designing strings.
How much solar PV can be connected to Sosen SSA-HL3K6-P1EU?
Sosen SSA-HL3K6-P1EU allows up to 5kW PV input power. Use max PV input power 5kW, nominal battery voltage 24V for string sizing checks.
What battery and charge current settings apply to Sosen SSA-HL3K6-P1EU?
Sosen SSA-HL3K6-P1EU is built for 24V battery systems. The battery voltage range is 24V, with maximum charging current the listed charging current.
What AC output should buyers and installers expect from Sosen SSA-HL3K6-P1EU?
Sosen SSA-HL3K6-P1EU has a rated AC output of 3.6kW. It operates with grid frequency the listed grid frequency and AC voltage range 21～30.2. If needed, use the listed input range for compatibility checks.
What should buyers compare before ordering Sosen SSA-HL3K6-P1EU in Uganda?
Compare verified seller pricing, warranty terms, authenticity, and installer support for Sosen SSA-HL3K6-P1EU. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.
