Sukam · Hybrid Inverters

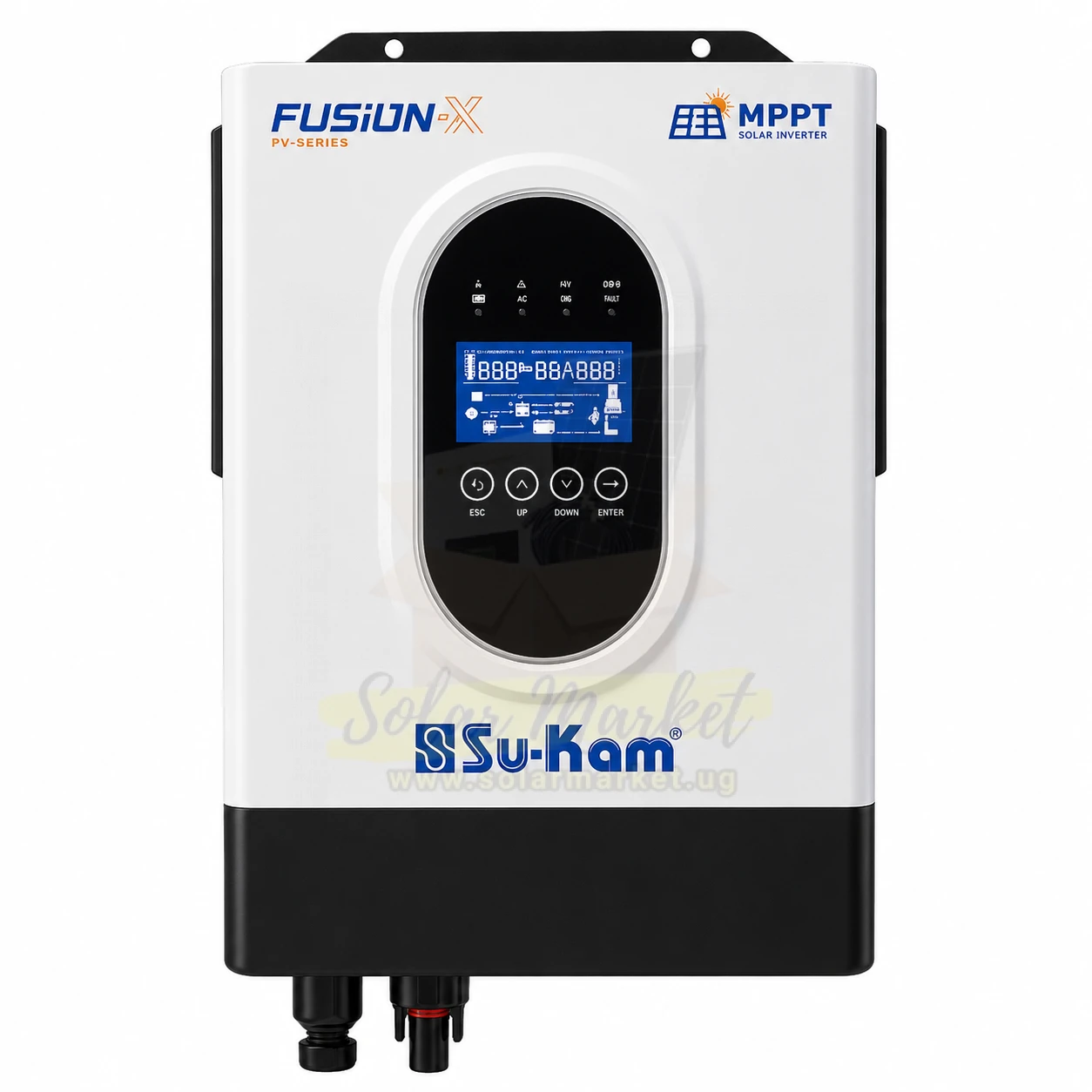

Sukam 6.2kVA/5500W Hybrid Inverter for Home and Small Business Backup 48VDC 230VAC Output 120A MPPT LCD & App Monitoring (FX6200-48H)

UGX2,030,400
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX60,000Cash on Delivery2-yr warranty
Christmas on SolarMarket Power for the holidays A gift that keeps the lights on. Pay safely through SolarMarket. Black Friday → Solar for every Christmas plan –Days–Hours–mins
Sold by
Auto Solutions plus ltd ✓
Kampala · 9 In stock
UGX2,030,400
Ways to payAll options
Cash on DeliveryOrder now, pay Auto Solutions plus ltd in cash
Pay NowBank Transfer · Cash on Delivery
Warranty and returns
Warranty
2 years · this product
Returns
7 Days · unused and not installed.
Refund
Replacement only
The warranty is this product's own (2 years). Returns and refunds follow Auto Solutions plus ltd's signed policy. If the shop doesn't reply to a claim in 48 hours, SolarMarket steps in.
Complete your systemPick one of each. They go in your cart with this product.
Matched to 48 V
Solar PanelsUGX429,000

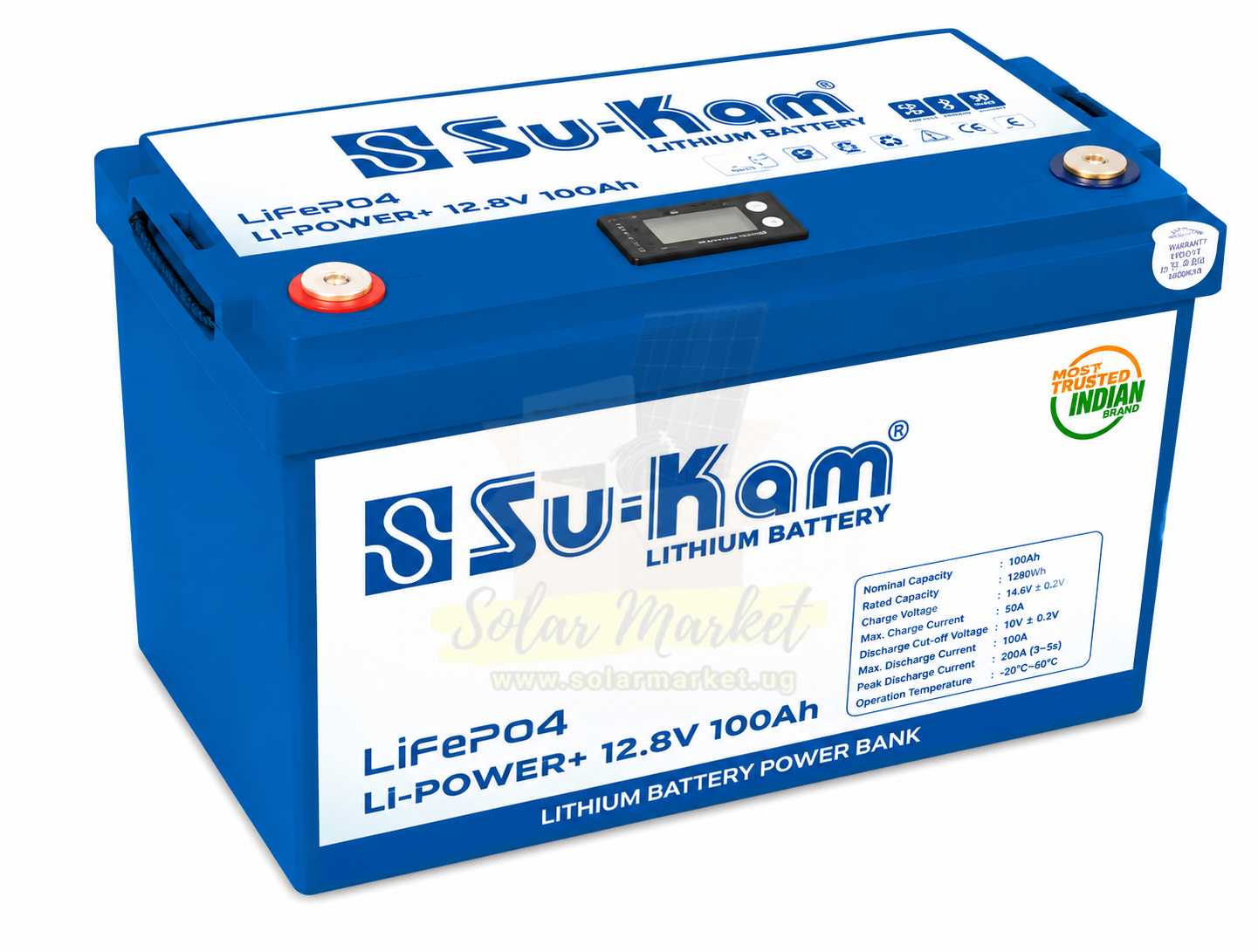

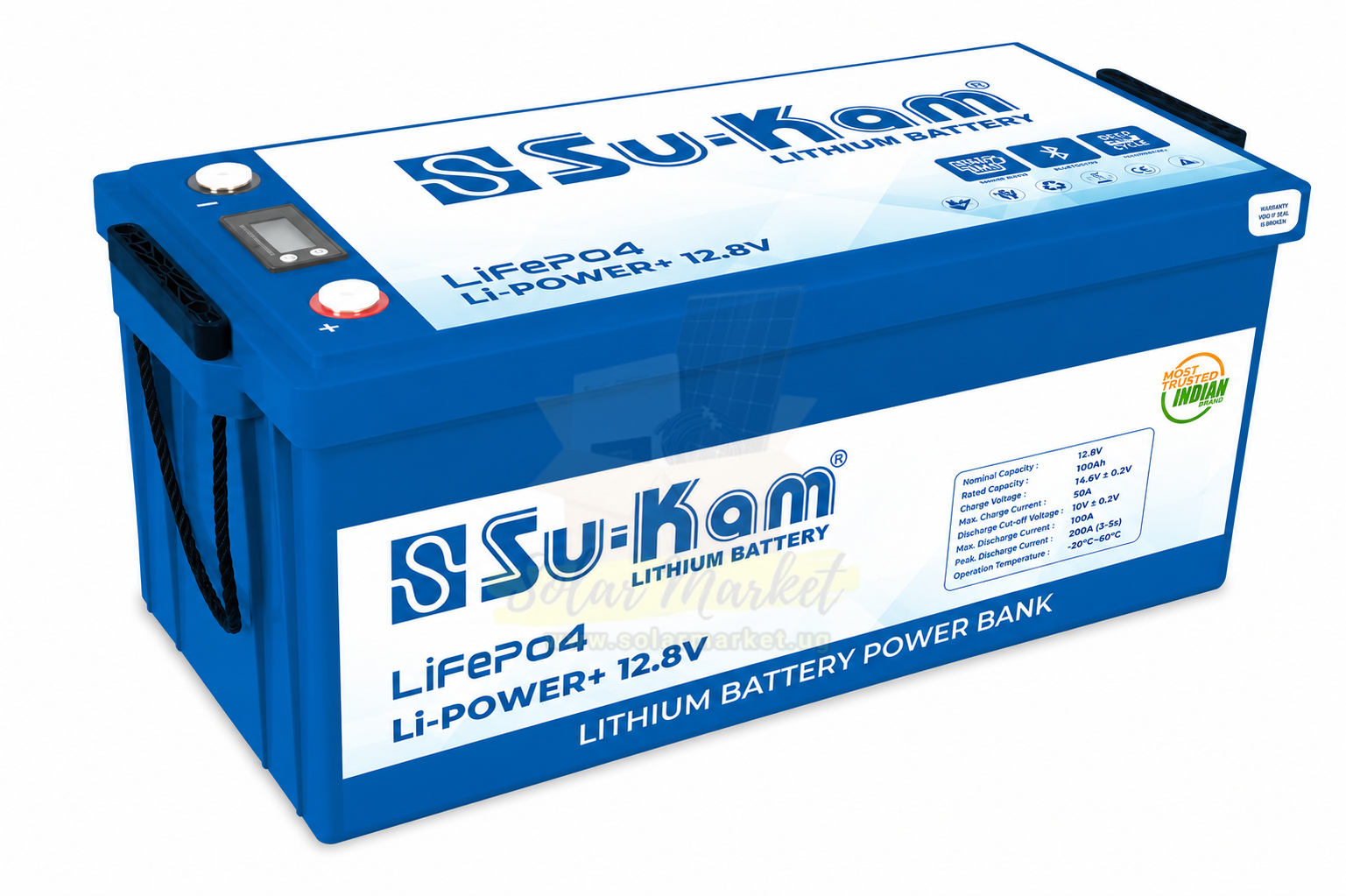

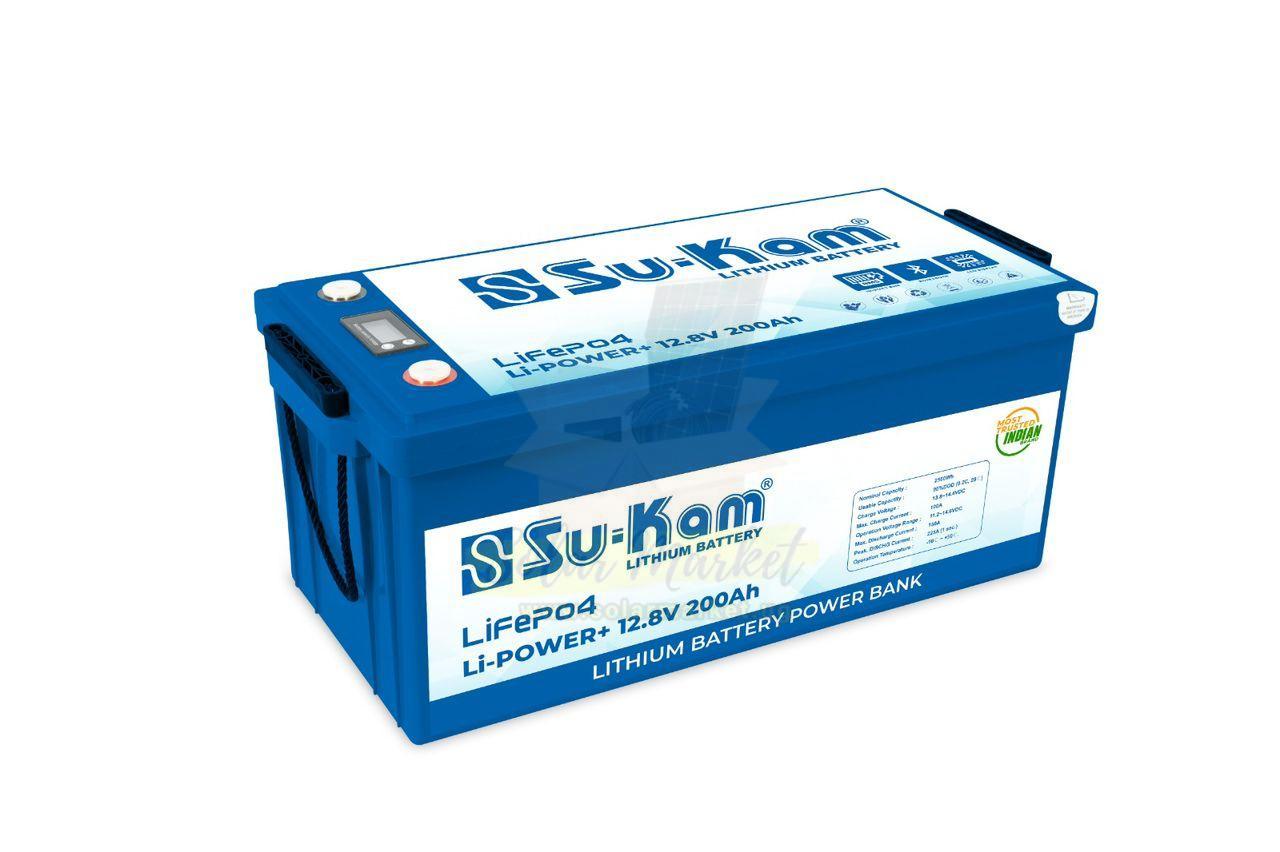

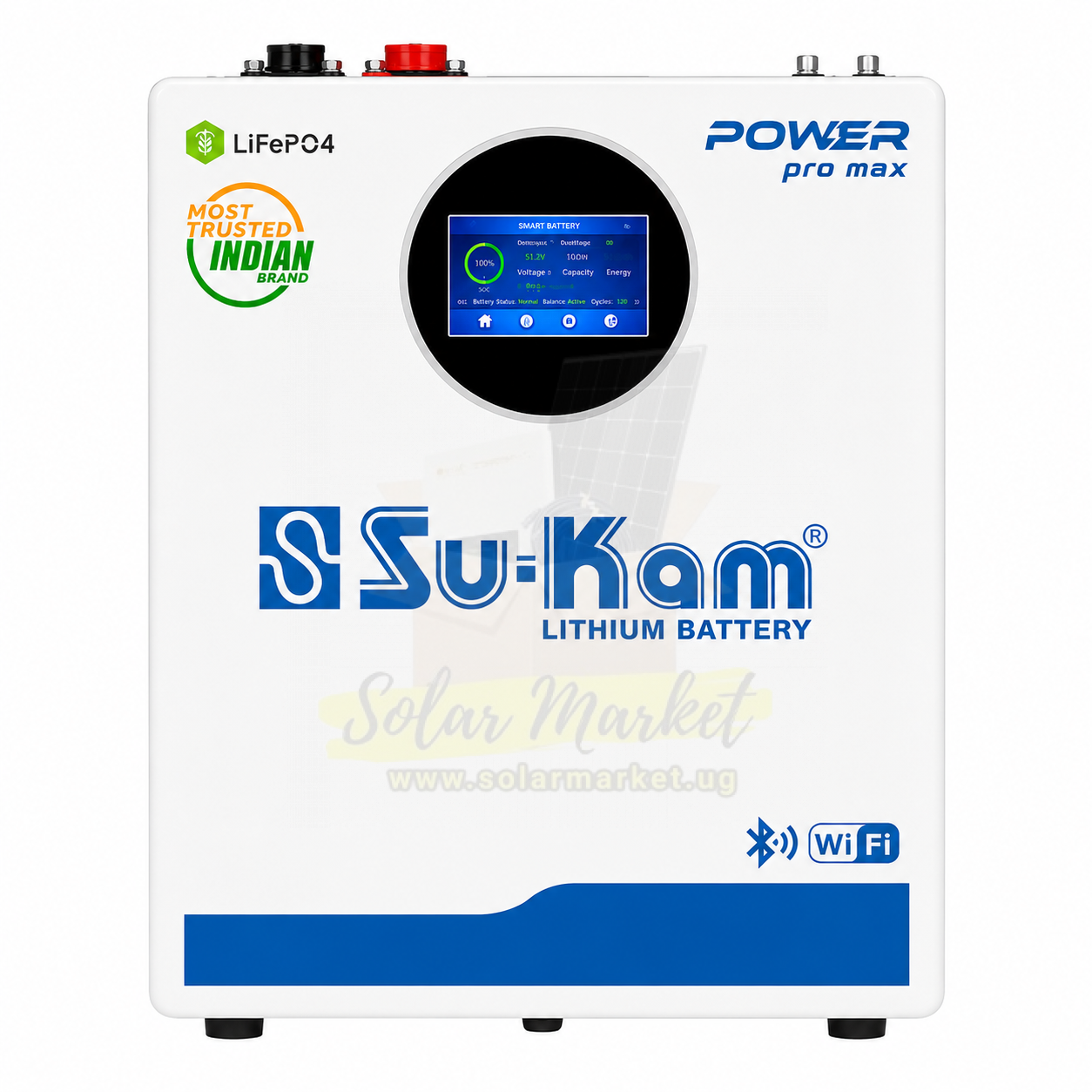

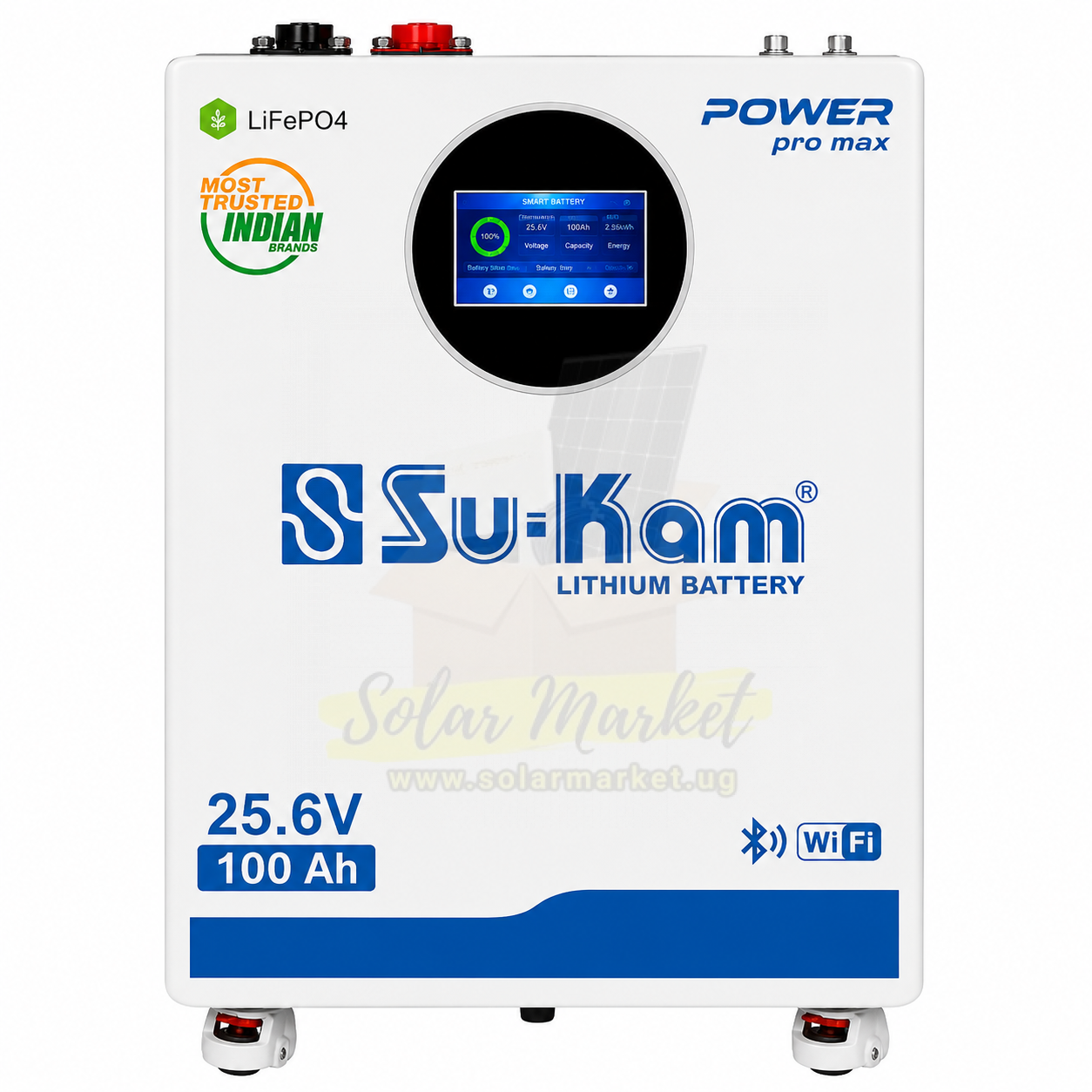

BatteryUGX3,334,760
Cables, mounting and protectionUGX8,833
With this product
Technicians who install this
Swipe/scroll to see more →
Key specs
Brand Sukam Model 230VAC ± 5%
Rated Power 6200VA/5500W Max PV Input Power 6000 W
Max Charging Current 100A Nominal Output Voltage 230VAC
Nominal Voltage 170-280 V Number of MPPT Trackers 120A
Surge Power 12400VA Product Dimensions 550mm*393mm*196mm
Product Weight 9.7kg Waveform Pure Sine Wave
AC Output Rated Current 120A Current Rating 120 A
Display LCD & App Float Charge Voltage 56.0VDC
Input Voltage Range 170-280VAC (UPS), 90-280VAC (Appliances) Max PV Voltage (DC) 500VDC
Max. AC Input/Output Apparent Power (VA) 6200VA/5500W Over Discharging Voltage 44.0VDC
Overcharge Protection 64.0VDC Parallel Operation W/O
Power Factor 1 SKU SM-HYB-SUK-01340
Zero load power (W) <40W

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

Sukam FX6200-48H is a 6.2kW hybrid inverter for Uganda power conditions. It supports up to 6kW PV input and is suitable for Home backup power, Small business power, Solar self-consumption where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

  • RATED POWER: 6.2kVA/5500W continuous output with 12.4kVA surge capacity for handling startup loads of appliances and tools.
  • BATTERY VOLTAGE: Operates on a 48VDC battery bank, with low battery alarm at 44.0VDC and recovery at 46.0VDC for system protection.
  • MPPT SOLAR CHARGING: Integrated 120A MPPT charge controller supports up to 6000W PV array with a maximum open circuit voltage of 500VDC.
  • AC INPUT RANGE: Selectable voltage range of 170-280VAC for UPS mode and 90-280VAC for appliance mode, accommodating unstable grid conditions common in Uganda.
  • MONITORING: LCD display and RS485 communication port for BMS integration, plus app-based monitoring for remote system management.
  • PURE SINE WAVE: Delivers clean 230VAC ±5% pure sine wave output at 50/60Hz auto-sensing, suitable for sensitive electronics.

What's Included

  • Sukam FX6200-48H Hybrid Inverter unit
  • User manual
  • RS485 communication cable
  • Mounting brackets and screws

Applications

  • Home backup power during grid outages
  • Small business power backup for shops and offices
  • Solar self-consumption systems with battery storage
  • Off-grid or hybrid residential solar installations
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What are the key specs of Sukam FX6200-48H in Uganda?
Sukam FX6200-48H is a 6.2kW hybrid inverter in Uganda. Key specs include max PV input voltage 500VDC, max PV input power 6kW, rated AC output 6.2kW, communication RS485.
What PV voltage limits should technicians use for Sukam FX6200-48H?
For Sukam FX6200-48H, use MPPT/operating voltage range 500VDC, max PV input voltage 500VDC, and max PV input power 6kW when designing strings.
How much solar PV can be connected to Sukam FX6200-48H?
Sukam FX6200-48H allows up to 6kW PV input power. Use max PV input voltage 500VDC for string sizing checks.
What battery and charge current settings apply to Sukam FX6200-48H?
Sukam FX6200-48H is built for the listed battery voltage battery systems. The battery voltage range is the listed battery voltage, with maximum charging current the listed charging current.
What AC output should buyers and installers expect from Sukam FX6200-48H?
Sukam FX6200-48H has a rated AC output of 6.2kW. It operates with grid frequency 50Hz/60Hz (Auto Sensing) and AC voltage range 170-280VAC (UPS), 90-280VAC (Appliances). If needed, use 170-280VAC (UPS), 90-280VAC (Appliances) for compatibility checks.
What should buyers compare before ordering Sukam FX6200-48H in Uganda?
Compare verified seller pricing, warranty terms, authenticity, and installer support for Sukam FX6200-48H. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.
