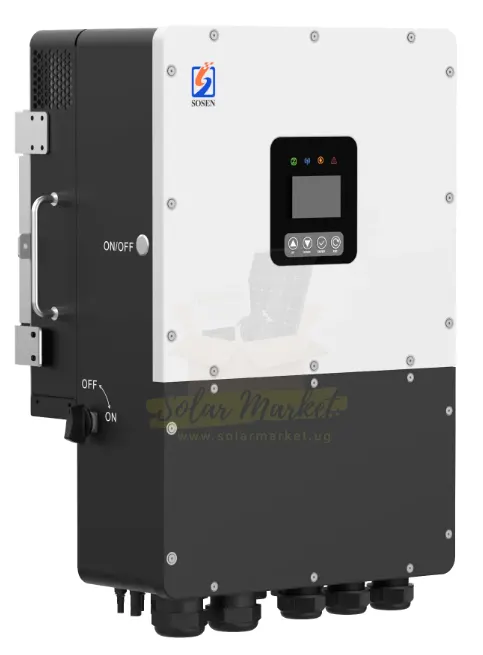

Sosen HL15K-P3EU 15kW Three-Phase Hybrid Inverter for Home and Small Business Backup 51.2V Battery 380/400VAC Output Dual MPPT 30kW PV IP66
⇄ Compare ♡ Save ↗ Share ⬇ Datasheet
Sosen · Hybrid Inverters

Sosen HL15K-P3EU 15kW Three-Phase Hybrid Inverter for Home and Small Business Backup 51.2V Battery 380/400VAC Output Dual MPPT 30kW PV IP66

UGX8,411,100 VAT incl.
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX168,222Cash on Delivery
Updates about this
Sold by
Collective Energy Africa ✓
Kampala · 1 In stock
UGX8,411,100
Want another price?Only one shop lists this right now. Send one request and other shops reply with their prices.
Similar products from other shops
SRNE 12kW 24kVA Max Surge Hybrid Inverter for Home and Small Business Backup 48Vdc 230Vac Single-Phase Dual MPPT 125-425Vdc Parallel up to 6 Units IP20 Indoor (ASP48120S200-H) SRNE 12kW 24kVA Max Surge Hybrid Inverter for Home and Small Business... UGX8,946,718 BLISON ENERGY Felicity IVGM20KLP3G1 20kW Hybrid Inverter, Three Phase, 800V, Max MPPT 800V, Supports up to 32kW PV Input, 2 MPPTs, RS485/CAN, WiFi Monitoring, For Commercial buildings, Institutions, 5 Years/10 Years Felicity IVGM20KLP3G1 20kW Hybrid Inverter, Three Phase, 800V, Max MPP... UGX8,358,100 Masrcorp Solar Uganda SRNE 12kW Hybrid Inverter for Three-Phase Commercial Backup 48V 230/400Vac Dual MPPT 800Vdc 6-Parallel RS485/CAN (ASP48120H3) SRNE 12kW Hybrid Inverter for Three-Phase Commercial Backup 48V 230/40... UGX8,045,400 BLISON ENERGY SRNE 10kW Single Phase Hybrid Inverter for Home solar backup and Small business power 48V Battery MPPT 425V 2-Year Warranty (ASP48100S200-H) SRNE 10kW Single Phase Hybrid Inverter for Home solar backup and Small... UGX6,879,400 BLISON ENERGY
Ways to payAll options
Cash on DeliveryOrder now, pay Collective Energy Africa in cash
Pay NowBank Transfer · Cash on Delivery
Complete your systemMatched to 48 V
Solar Panels
UGX429,000
Battery
UGX2,862,000
Cables, mounting and protection
UGX49,809
With this product:
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Brand Sosen Model HL15K-P3EU
Rated Power 15 / 15 kW Max PV Input Power 30 kW
Max Charging Current 315 Adc MPPT Voltage Range 150 ~950 Vdc
Nominal Output Voltage 380 / 400 V a.c., 3W+N+PE Nominal Output Frequency 50/60 Hz
Nominal Voltage 40~60 V Number of MPPT Trackers 2/2+2
Product Dimensions 448x660x265 mm Product Weight 40 kg
Communication RS485 / WiFi / CAN / DRM (Optional: Bluetooth / LAN / Meter) Efficiency 98.00%
Operating Temperature -25°C to +60°C (linearly derating to 60% when exceed +45°C to +60°C) Battery Type Lithium / Lead-acid
Certification EN IEC 62477-1, EN IEC 62109-1/2, EN IEC 61000-6-2, EN IEC 61000-6-4, EN50549-1/10 (planned) Chemistry Lithium / Lead-acid
Current Rating 43/22 A Display LCD + App
Humidity 0-95% (non-condensing) Ingress Protection IP66
Inverter Type Hybrid Max PV Input Current 4*20 Adc
Maximum input voltage 1000 Vdc Maximum output current 43/22 Aac
Noise <40 dB Parallel Operation Yes
Permissible Altitude 4000 m (>2000 Derating) Phase Three phase
Power Factor 0.8 leading ~ 0.8 lagging Protection Degree IP66
SKU SM-HYB-SOS-01394 Start Voltage 180 Vdc
Storage Temperature -25°C to +60°C Transfer Time <20 ms

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

The Sosen HL15K-P3EU is a three-phase hybrid inverter rated 15kW in and 15kW out at 380/400 Vac (3W+N+PE, 50/60Hz). It works with either lithium or lead-acid batteries at a nominal 51.2V (40~60V range) and can charge or discharge at up to 315A. Two MPPT trackers with 2+2 strings accept up to 30kW of PV, with an MPPT window of 150~950 Vdc and a 1000 Vdc maximum DC voltage.

It is built for homes, shops and small businesses that want solar with battery backup on a three-phase supply, and for retrofit sites where an existing grid-tied system needs storage added (AC coupling is supported, and up to 8 units can run in parallel). For Uganda, where grid outages are common and three-phase loads such as pumps, freezers and workshop machinery are widely used, the off-grid overload of 200% for 10s, 150% three-phase unbalanced output and IP66 enclosure make it practical for dusty, hot and sometimes wet sites; 0-95% non-condensing humidity and derating above +45°C. Monitoring is via LCD and app over RS485/WiFi/CAN, with optional Bluetooth, LAN or meter.

About this item

  • 15kW / 15kVA three-phase hybrid inverter, 380/400 Vac 3W+N+PE, 50/60Hz output
  • 51.2V nominal low-voltage battery (40~60V range), lithium or lead-acid, 315A max charge and 315A max discharge
  • Dual MPPT (2/2+2 strings), up to 30kW PV array, 150~950 Vdc MPPT range, 1000 Vdc max DC voltage, 180 Vdc start-up
  • 99.90% MPPT efficiency and 98.00% max efficiency (97.00% Euro-efficiency)
  • Off-grid overload 200% for 10s, 2x load surge for 10s, 150% three-phase unbalanced output
  • IP66 enclosure, <40 dB noise, LCD + App display, RS485 / WiFi / CAN / DRM interfaces, parallel function up to 8 units with AC coupling

Applications

  • Home backup power on a three-phase supply
  • Shops and small businesses with three-phase loads
  • Retrofit of existing grid-tied solar with battery storage
  • Off-grid or weak-grid premises needing battery backup
  • Farms and light commercial sites (pumps, freezers, workshop machinery)
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What battery voltage does the Sosen HL15K-P3EU need?
It uses a low-voltage battery with a nominal voltage of 51.2V and a battery voltage range of 40~60V. Both lithium and lead-acid batteries are supported.
How much solar PV can it take?
Maximum PV array power is 30kW, with a maximum DC voltage of 1000 Vdc, an MPPT operating range of 150~950 Vdc and a start-up voltage of 180 Vdc. There are 2 MPPT trackers with 2+2 strings, max input current 4*20 Adc and Isc PV absolute maximum 4*30 Adc.
Is it single phase or three phase?
Three phase: 380 / 400 V a.c., 3W+N+PE, 50/60 Hz output, 15kW / 15kVA rated, with a maximum continuous current of 43/22 Aac.
Can I parallel several units?
Yes. The parallel function is supported for up to 8 units, and AC coupling is supported for retrofit onto an existing system.
How much surge can it handle off-grid?
Overload capacity off-grid is 200% for 10s, with 2x load surge for 10s and 150% three-phase unbalanced output.
Can it be installed outdoors in hot or dusty conditions?
The enclosure is IP66 and operating ambient temperature is -25°C to +60°C, linearly derating to 60% when exceeding +45°C to +60°C, with 0-95% non-condensing humidity, permissible altitude 4000 m (>2000 m derating) and noise below 40 dB.
How is the inverter monitored?
It has an LCD + App display, and interfaces for RS485 / WiFi / CAN / DRM, with optional Bluetooth, LAN or meter.
