What AC output should buyers and installers expect from Felicity IVGM20KLP3G1?

Felicity IVGM20KLP3G1 has a rated AC output of 20kW on 3L+N+PE output, with 220/380,230/400Vac(-20%~+15%) and 50/60 Hz(45~55Hz/55~65Hz) grid frequency. Use the 2/2+2 and 800V for inverter matching, and pair it with 40V~60V battery systems. It is built for battery-backed sites that need stable AC delivery, RS485/CAN communication, WiFi/4G monitoring, and 5 Years/10 Years.

Does this product support hire purchase in Uganda?

Some sellers provide in-house hire purchase plans for this product. Available plans, monthly installments, upfront payment, and terms are shown on this product page.

How do I apply for a solar loan or installment plan in Uganda?

Select an available financing plan on the product page, review payment schedule and terms, then continue with the application flow.

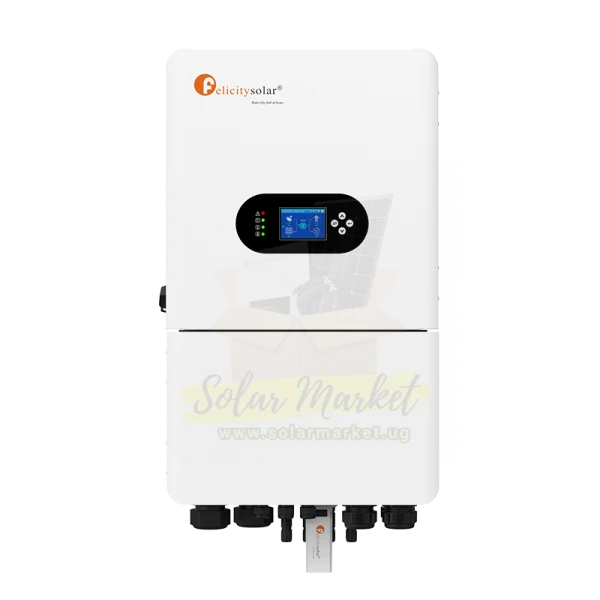

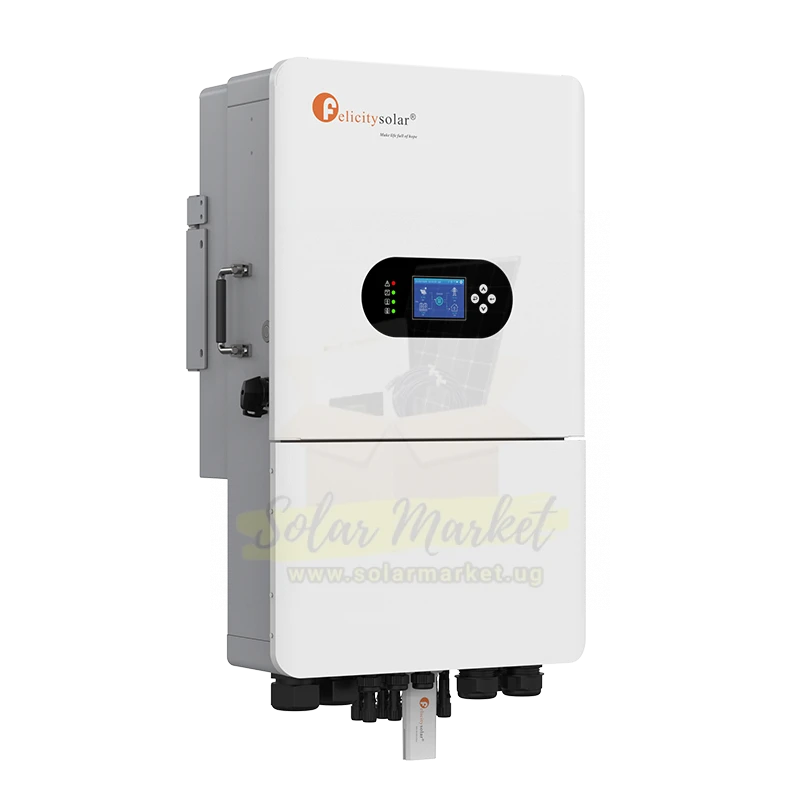

Felicity IVGM20KLP3G1 20kW Hybrid Inverter, Three Phase, 800V, Max MPPT 800V, Supports up to 32kW PV Input, 2 MPPTs, RS485/CAN, WiFi Monitoring, For Commercial buildings, Institutions, 5 Years/10 Years

Name: Felicity IVGM20KLP3G1 20kW Hybrid Inverter, Three Phase, 800V, Max MPPT 800V, Supports up to 32kW PV Input, 2 MPPTs, RS485/CAN, WiFi Monitoring, For Commercial buildings, Institutions, 5 Years/10 Years
Brand: Felicity
SKU: SM-CAT-GEN-00590
Price: 8085000.00 UGX
Availability: InStock

Felicity

0 out of 5 | 0 Ratings | Q&A

About this item

Product spotlights

Highlights: Felicity IVGM20KLP3G1 is a 20kW 800V Three Phase hybrid inverter in Uganda. It supports up to 32kW PV input and is built for Commercial buildings, Institutions, Large homes where battery-backed continuity and stable AC output matter

UGX8,085,000 /Pcs

VAT incl. Presale enabled

2 available

Minimum order qty 1

QTY

Order on WhatsApp

Compare With Similar capacity Hybrid Inverters

Sold by Masrcorp Solar Uganda

Message Seller

Brand Felicity

Products from this brand

Product Information

Technical specifications

Brand	Felicity	Model	IVGM20KLP3G1
Rated Power	20000	Max PV Input Power	32 W
Max Charging Current	350A	MPPT Voltage Range	160V-650V
Nominal Output Frequency	50/60 Hz(45~55Hz/55~65Hz)	Nominal Voltage	40 V
Number of MPPT Trackers	2/2+2	Surge Power	2 Times of Rated Power, 10s
Product Dimensions	750x450x268MM	Product Weight	(KG),60.2KG
Communication	RS485/CAN	Warranty	5 Years/10 Years
AC Output Rated Current	28.9 A	AC Wiring Mode	3L+N+PE
Anti-Islanding Protection	Yes	Arc Fault Circuit Interrupter (AFCI)	Yes
Battery Type	Li-Ion / Lead-acid	Chemistry	Li-Ion / Lead-acid
Current Rating	28.9	DC Component Monitoring	Yes
DC Polarity Reverse Connection Protection	Yes	DC Terminal insulation impedance Monitoring	Yes
Earth Fault Detection	Yes	Float Charge Voltage	40
Full Load DC Voltage Range	416V-800V	Ground Fault Current Monitoring	Yes
Ingress Protection	IP65	Input AC Voltage Range	220/380,230/400Vac(-20%~+15%)
Max AC Input Voltage	800V	Max PV Input Current	36+36(A)
Max. AC Input/Output Apparent Power (VA)	31.9 A	Max. Continuous AC Passthrough	300A
Min. DC Input Voltage	550V	Monitor Module	WiFi/4G
Output Over Current Protection	240A	Output Short Circuit Protection	Yes
Overcharge Protection	Yes	Peak Current (15s)	28.9
Protection	Degree,IP65	PV Start-up Voltage	160V
Rated AC Input/Output Active Power (W)	20 W	Residual Current (RCD) Detection	Yes
Safety	EMC/Standard,"IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2"	Safety Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
SKU	SM-CAT-GEN-00590	Start Voltage	up Voltage,160V

Notice a wrong or outdated datasheet? Help us fix it.

Freelancers

Verified

Verified Solar Installers for this Product

View All

Tamale Muhamad

Expert Solar Systems Designer & Installer – Powering Your Future!

Kampala

Solar Installation Solar Panel Cleaning Solar Water heater

View Profile

ETIENE MAATE

ElectroMechanical Engineer

Kampala

Project Management Solar Water heater Solar System Design

View Profile

Osama Mathew

Solar | water pumps | Backup systems

Kampala

Lighting Troubleshooting CAD Design

View Profile

Kizito Vincent

I am a technician dealing in hydro and solar power, security systems, networking...

Kampala

IT Support Electrical Repairs Battery Wiring

View Profile

Kibozeeyi John

Skilled Solar Installer – Expertise in Felicity, CWorth, & other quality brands

Kampala

Solar Installation Solar Panel Cleaning Solar System Design

View Profile

WASSWA Emmy

Solar installer

Bugiri

Electrical Repairs Solar System Design Electrical Installation

View Profile

Ndawula Muhamadi

Hybrid Solar Wholesale Supplier & Installer Expert

Masaka

Solar Installation Solar System Design Solar Energy Audits

View Profile

Okitwi Francis

Certified solar technician based in Tororo

Tororo

Solar Installation Inverter Setup Solar System Design

View Profile

ANITA

Solar system installation

Kampala

Electrical Repairs Appliance Repair Solar Installation

View Profile

Francis Ekapuloni

Professional Solar Expert

Kampala

Solar Installation Solar Energy Audits

View Profile

Swipe/scroll to see more →

Description

Specs & details

Overview

Felicity IVGM20KLP3G1 is a 20kW 800V Three Phase hybrid inverter for Uganda power conditions. It supports up to 32kW PV input and is suitable for Commercial buildings, Institutions, Large homes where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

SYSTEM TOPOLOGY: Three Phase architecture for compliant solar system design.
20kW THREE-PHASE OUTPUT: Supports 220/380V and 230/400Vac operation for commercial and multi-load installations requiring three-phase power.
HIGH-VOLTAGE PV INPUT: Accepts up to 32kW of solar input with an 800V maximum PV input voltage and 160V start-up voltage for string-based arrays.
DUAL MPPT DESIGN: Uses 2 MPPT trackers with 2+2 strings to improve array flexibility and support different roof orientations or string groupings.
BATTERY INTEGRATION: Works with Li-ion and lead-acid batteries in the 40V–60V range and supports up to 350A charging/discharging current.
PROTECTION AND SAFETY: Includes AFCI, DC reverse polarity protection, overcurrent protection, overvoltage protection, thermal protection, RCD detection, and surge protection on DC and AC sides.

Applications

Commercial buildings with three-phase loads
Institutions and offices requiring backup and solar support
Large homes with three-phase distribution
Solar-plus-battery systems with HV string arrays
Sites needing remote monitoring via WiFi or 4G
Installations requiring AFCI and strong protection features

Product FAQs

Felicity IVGM20KLP3G1 is a 20kW Three Phase hybrid inverter in Uganda. Key specs include battery voltage range 40V~60V, MPPT layout 2 MPPTs, max PV input voltage 800V, max PV input power 32kW, rated AC output 20kW, communication RS485/CAN, monitoring WiFi/4G, warranty 5 Years/10 Years.

Browse live offers

For Felicity IVGM20KLP3G1, use max PV input voltage 800V, MPPT layout 2 MPPTs when designing strings.

Browse live offers Find technicians

Felicity IVGM20KLP3G1 allows up to 32kW PV input power. Use max PV input voltage 800V, MPPT layout 2 MPPTs for string sizing checks.

Browse live offers

Felicity IVGM20KLP3G1 is built for 40V~60V battery systems. The battery voltage range is 40V~60V, with maximum charging current 350A and maximum discharging current 350A.

Browse live offers

Felicity IVGM20KLP3G1 has a rated AC output of 20kW on 3L+N+PE output, with 220/380,230/400Vac(-20%~+15%) and 50/60 Hz(45~55Hz/55~65Hz) grid frequency.

Browse live offers Request quotes Find technicians

Compare verified seller pricing, warranty terms, authenticity, and installer support for Felicity IVGM20KLP3G1. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.

Browse live offers Compare models Request quotes
