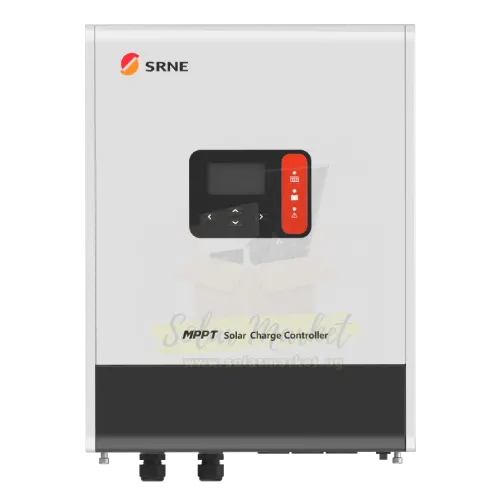

SRNE 6kW Dual MPPT 48V 100A MPPT Charge Controller for Off-Grid Solar Systems 500VOC+500VOC 80-450V MPPT Range 1-16 Units Parallel Bluetooth RS485 CAN (MF48100N50)
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
SRNE · Charge Controllers

SRNE 6kW Dual MPPT 48V 100A MPPT Charge Controller for Off-Grid Solar Systems 500VOC+500VOC 80-450V MPPT Range 1-16 Units Parallel Bluetooth RS485 CAN (MF48100N50)

UGX1,591,000
☆☆☆☆☆ No reviews yet ·Questions (0)
Delivery in 7 days1-yr warranty
Sold by
Masrcorp Solar Uganda ✓
Delivery in 7 days · 10 In stock
UGX1,591,000
Want another price?Only one shop lists this right now. Send one request and other shops reply with their prices.
Similar products from other shops
SRNE 60A MPPT Charge Controller for Off-Grid Solar Systems 100Vdc Open Circuit Voltage 12/24/36/48Vdc Battery (Shiner2460) SRNE 60A MPPT Charge Controller for Off-Grid Solar Systems 100Vdc Open... UGX462,000 Masrcorp Solar Uganda SRNE 20A MPPT Charge Controller for Off-Grid Solar Systems 12/24V 60VOC 260-1600W PV Input IP32 (Shiner2420) SRNE 20A MPPT Charge Controller for Off-Grid Solar Systems 12/24V 60VO... UGX19,000 Masrcorp Solar Uganda SRNE 20A MPPT Charge Controller 12V/24V Auto-Detect Battery 260W at 12V, 520W at 24V PV Input (DM200-W(G4)-B0) SRNE 20A MPPT Charge Controller 12V/24V Auto-Detect Battery 260W at 12... UGX209,000 Renewable Uganda Limited SRNE 30A MPPT Charge Controller for Off-Grid Solar Systems 100Vdc Open Circuit Voltage 12/24/36/48Vdc Battery (Shiner2430) SRNE 30A MPPT Charge Controller for Off-Grid Solar Systems 100Vdc Open... UGX27,000 Masrcorp Solar Uganda
Ways to payAll options
Pay NowBank Transfer
Warranty and returns
Warranty
1 year · this product
Returns
7 Days · unused and not installed.
Refund
Replacement only
The warranty is this product's own (1 year). Returns and refunds follow Masrcorp Solar Uganda's signed policy. If the shop doesn't reply to a claim in 48 hours, SolarMarket steps in.
Complete your systemMatched to 48 V
Solar Panels
UGX429,000
Battery
UGX7,790,000
With this product:
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Brand SRNE Model RS485
Rated Power 6000 W Max PV Input Power 3,000W+3,000W
Max Charging Current 100 A MPPT Voltage Range 80 V
Max PV Open Circuit Voltage 500Vdc+500Vdc Nominal Voltage 80 V
Number of MPPT Trackers 2 Product Dimensions 440*340*124 mm
Product Weight 11 KG Communication Built-in Bluetooth, TTL(connect to WiFi)，RS485
Efficiency 96% Warranty 3 Years
Battery Type USE / FLD / GEL / LI / SLD(default) Chemistry Gel
Cooling Method Intelligent fan Current Rating 100 A
Ingress Protection IP21 Max Charging Voltage 120V
Max PV Input Current 20A+20A Number of Cells 1~16 units
Programmable Relay NO, C, NC -current limit: DC: 10A,30VDC/ AC: 10A,250VAC Protection Degree,IP21
Safety Standard Built-in Bluetooth, TTL(connect to WiFi)，RS485 SKU SM-CHA-SRN-01329
Start Voltage up Charging Voltage,120V

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

SRNE MF48100N50 is a charge controller for Uganda operating conditions. It is suitable for Off-grid residential, Remote telecom, Solar water pumping, Commercial. Buyers should also confirm Num. of MPPT Trackers: 2; Max. Open Circuit Voltage: 500Vdc+500Vdc; MPPT Voltage Range: 80V~ 450V; Max. Input Current: 20A+20A, verified seller pricing, warranty terms, and installer compatibility before ordering

About this item

  • DUAL MPPT TRACKERS: Two independent MPPT channels each rated at 3000W maximum input power and 50A charging current, enabling simultaneous optimization of two PV arrays with different orientations or shading conditions.
  • INPUT: Each MPPT tracker accepts up to 500V open-circuit voltage, with a working MPPT range of 80V to 450V, allowing series panel strings that reduce wiring losses.
  • 48V 100A CHARGING: Delivers up to 100A total charging current to a 48V battery bank, supporting battery types including USE, FLD, GEL, LI, and SLD with a voltage range of 36V to 64V.
  • SCALABLE PARALLEL OPERATION: Up to 16 units can be connected in parallel to increase total charging capacity for large off-grid systems, with coordinated MPPT and battery management.
  • BUILT-IN COMMUNICATION: Integrated Bluetooth for local monitoring via mobile app, plus TTL (WiFi) and RS485 ports for remote data logging and system integration; optional CAN (RV-C protocols) available.
  • INTELLIGENT COOLING AND PROTECTION: IP21-rated enclosure with intelligent fan cooling ensures stable operation in ambient temperatures from -20°C to 65°C; programmable relay supports auxiliary load control.

What's Included

  • 1x SRNE MF48100N50 MPPT Charge Controller
  • 1x User Manual
  • 1x Bluetooth module (built-in)
  • 1x Communication cable (TTL/RS485)
  • Mounting brackets and screws

Applications

  • Off-grid residential solar systems
  • Remote telecom and rural power stations
  • Solar water pumping systems
  • Commercial and industrial off-grid installations
  • Backup power for small businesses and farms
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What are the key specs of SRNE MF48100N50 in Uganda?
SRNE MF48100N50 is a charge controller in Uganda. Key datasheet specs include Num. of MPPT Trackers: 2; Max. Open Circuit Voltage: 500Vdc+500Vdc; MPPT Voltage Range: 80V~ 450V; Max. Input Current: 20A+20A.
Which technical limits should installers verify for SRNE MF48100N50?
Installers should verify Num. of MPPT Trackers (2), Max. Open Circuit Voltage (500Vdc+500Vdc), and MPPT Voltage Range (80V~ 450V) before commissioning SRNE MF48100N50.
What should buyers compare before ordering SRNE MF48100N50 in Uganda?
Compare verified seller price, warranty, authenticity, and after-sales support for SRNE MF48100N50. Match all offers against the same datasheet values: Num. of MPPT Trackers: 2; Max. Open Circuit Voltage: 500Vdc+500Vdc; MPPT Voltage Range: 80V~ 450V; Max. Input Current: 20A+20A.
What installation details matter most for SRNE MF48100N50?
Installers should verify Max. Input Current (20A+20A), ensure the mounting or system fit matches the site, and confirm any protection or operating limits listed for SRNE MF48100N50.
How should buyers judge durability or service life for SRNE MF48100N50?
Durability should be judged using Max. Input Power (3,000W+3,000W) and Start-up Charging Voltage (120V), plus the warranty term and the way the product is mounted or used.
Why is SRNE MF48100N50 a practical fit for local solar projects?
It is practical where the site needs Num. of MPPT Trackers (2), Max. Open Circuit Voltage (500Vdc+500Vdc), and MPPT Voltage Range (80V~ 450V), because those are the model's core operating limits.
