SRNE · Charge Controllers

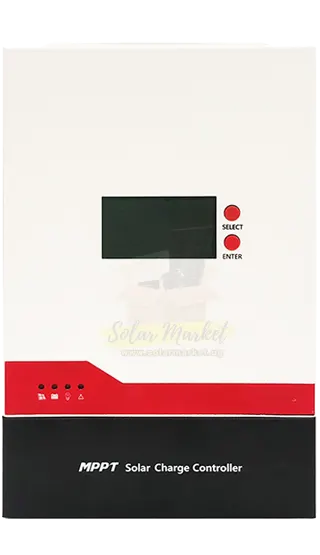

SRNE 60A MPPT Charge Controller for Off-Grid Solar Systems 150VOC 12/24/36/48V Auto-Detect RS485 Communication IP32 (MF4860N15)
UGX624,000
Sold by
Masrcorp Solar Uganda ✓
Delivery in 7 days · 10 In stock
UGX624,000
Want another price?Only one shop lists this right now. Send one request and other shops reply with their prices.
Similar products from other shops
SRNE 60A MPPT Charge Controller for Off-Grid Solar Systems 100Vdc Open...
UGX462,000
Masrcorp Solar Uganda
SRNE 20A MPPT Charge Controller for Off-Grid Solar Systems 12/24V 60VO...
UGX19,000
Masrcorp Solar Uganda
SRNE 20A MPPT Charge Controller 12V/24V Auto-Detect Battery 260W at 12...
UGX209,000
Renewable Uganda Limited
SRNE 30A MPPT Charge Controller for Off-Grid Solar Systems 100Vdc Open...
UGX27,000
Masrcorp Solar Uganda
Ways to payAll options
Pay NowBank Transfer
Warranty
1 year · this product
Returns
7 Days · unused and not installed.
Refund
Replacement only
The warranty is this product's own (1 year).
Returns and refunds follow Masrcorp Solar Uganda's signed policy.
If the shop doesn't reply to a claim in 48 hours, SolarMarket steps in.
Complete your systemMatched to 48 V
Solar Panels
UGX429,000
Battery
UGX7,790,000
With this product:
Technicians who install this
Kibozeeyi
Skilled Solar Installer – Expertise in Felicity, CWorth, & other quality brands
Kampala
Solar Installation
Solar Panel Cleaning
Solar System Design
View Profile
Kizito
I am a technician dealing in hydro and solar power, security systems, networking...
Kampala
IT Support
Electrical Repairs
Battery Wiring
View Profile
Ndawula
Hybrid Solar Wholesale Supplier & Installer Expert
Masaka
Solar Energy Audits
Solar Installation
Solar System Design
View Profile
Tumuhimbise
EXPERT IN DIESEL GENERATORS, SOLAR SYSTEMS,ISO(QHES) AUDITS, ENERGY AUDITS AND...
Automotive Repair
Solar Energy Audits
Solar Installation
View Profile
Anita
Solar system installation
Kampala
Electrical Repairs
Appliance Repair
Solar Installation
View Profile
Wasswa
Solar installer
Bugiri
Electrical Repairs
Solar System Design
Electrical Installation
View Profile
Okitwi
Certified solar technician based in Tororo
Tororo
Solar Installation
Inverter Setup
Solar System Design
View Profile
Etiene
ElectroMechanical Engineer
Kampala
Project Management
Solar Energy Audits
Solar Water heater
View Profile
Swipe/scroll to see more →
Key specs
| Brand | SRNE | Model | RS485 |
|---|---|---|---|
| Max PV Input Power | 800W/12V、1600W/24V、2400W/36V、3200W/48V | Max Charging Current | 60A |
| MPPT Voltage Range | （Battery voltage+2V）~ 120V | Max PV Open Circuit Voltage | 150Vdc |
| Nominal Voltage | 2 V | Product Dimensions | 275*167*90 mm |
| Product Weight | 3.6 KG | Communication | RS485 |
| Efficiency | ≤98% | Operating Temperature | -10°C~65°C (14°F~149°F) |
| Battery Type | Lead-acid / Li-ion / User Defined | Chemistry | Lead-acid |
| Current Rating | 60 A | Full Load DC Voltage Range | Equal to battery voltage 12V/24V/36V/48V |
| Ingress Protection | IP32 | Max. continuous load current | 40A |
| Safety Standard | BTS temperature sensors | SKU | SM-CHA-SRN-01330 |
Notice a wrong or outdated datasheet? Help us fix it.
Overview
SRNE MF4860N15 is a charge controller for Uganda operating conditions. It is suitable for Off-grid residential, Small commercial solar, water pumping, Remote telecom. Buyers should also confirm Max.Voltage of Open Circuit: 150Vdc; MPPT Voltage Range: （Battery voltage+2V）~ 120V; Max.PV Input Power: 800W/12V、1600W/24V、2400W/36V、3200W/48V; Battery Type: Lead-acid / Li-ion / User Defined, verified seller pricing, warranty terms, and installer compatibility before ordering
About this item
- MPPT TRACKING EFFICIENCY: Exceeds 99% for maximum energy harvest from solar panels under varying sunlight conditions.
- BATTERY COMPATIBILITY: Supports lead-acid, lithium-ion, and user-defined battery types with a rated voltage range of 12V to 48V DC.
- MAXIMUM PV INPUT: Accepts up to 3200W of solar panel power at 48V system voltage, with a maximum open-circuit voltage of 150V DC.
- COMMUNICATION: Equipped with RS485 port for remote monitoring and integration with system management software.
- TEMPERATURE COMPENSATION: Includes a standard BTS temperature sensor to optimize charging based on battery temperature.
- PROTECTION RATING: IP32 enclosure protects against dust ingress and dripping water, suitable for indoor or sheltered outdoor installation.
What's Included
- 1x SRNE MF4860N15 MPPT Charge Controller
- 1x BTS Temperature Sensor
- 1x User Manual
Applications
- Off-grid residential solar systems
- Small commercial solar installations
- Solar water pumping systems
- Remote telecom and monitoring stations
- Backup power systems for rural clinics and schools
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
What are the key specs of SRNE MF4860N15 in Uganda?
SRNE MF4860N15 is a charge controller in Uganda. Key datasheet specs include Max.Voltage of Open Circuit: 150Vdc; MPPT Voltage Range: （Battery voltage+2V）~ 120V; Max.PV Input Power: 800W/12V、1600W/24V、2400W/36V、3200W/48V; Battery Type: Lead-acid / Li-ion / User Defined.
Which technical limits should installers verify for SRNE MF4860N15?
Installers should verify Max.Voltage of Open Circuit (150Vdc), MPPT Voltage Range (（Battery voltage+2V）~ 120V), and Max.PV Input Power (800W/12V、1600W/24V、2400W/36V、3200W/48V) before commissioning SRNE MF4860N15.
What should buyers compare before ordering SRNE MF4860N15 in Uganda?
Compare verified seller price, warranty, authenticity, and after-sales support for SRNE MF4860N15. Match all offers against the same datasheet values: Max.Voltage of Open Circuit: 150Vdc; MPPT Voltage Range: （Battery voltage+2V）~ 120V; Max.PV Input Power: 800W/12V、1600W/24V、2400W/36V、3200W/48V; Battery Type: Lead-acid / Li-ion / User Defined.
What installation details matter most for SRNE MF4860N15?
Installers should verify Battery Type (Lead-acid / Li-ion / User Defined), ensure the mounting or system fit matches the site, and confirm any protection or operating limits listed for SRNE MF4860N15.
How should buyers judge durability or service life for SRNE MF4860N15?
Durability should be judged using Rated Battery Voltage (12/24/36/48Vdc) and Battery Voltage Range (9~64Vdc), plus the warranty term and the way the product is mounted or used.
Why is SRNE MF4860N15 a practical fit for local solar projects?
It is practical where the site needs Max.Voltage of Open Circuit (150Vdc), MPPT Voltage Range (（Battery voltage+2V）~ 120V), and Max.PV Input Power (800W/12V、1600W/24V、2400W/36V、3200W/48V), because those are the model's core operating limits.
