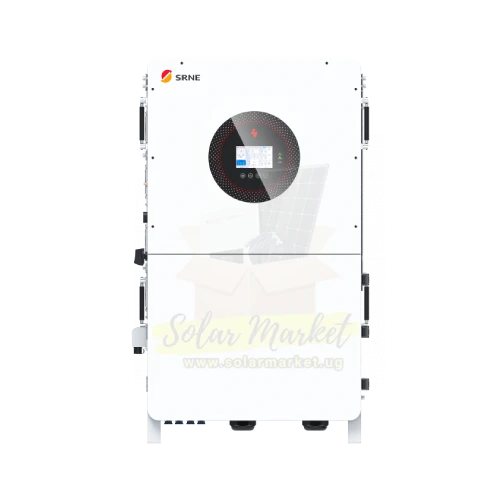

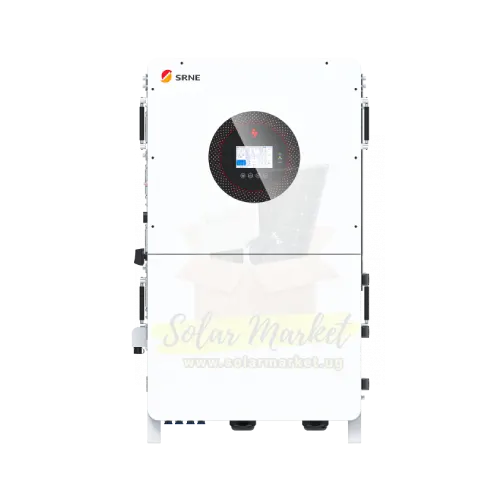

SRNE 60kW 66kVA Three Phase High Voltage Hybrid Inverter for Commercial and Industrial Solar Backup 150-820V Battery 4 MPPT 1000V PV IP65 9-Unit Parallel RS485/CAN (IESP600SH3)
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
SRNE · Hybrid Inverters

SRNE 60kW 66kVA Three Phase High Voltage Hybrid Inverter for Commercial and Industrial Solar Backup 150-820V Battery 4 MPPT 1000V PV IP65 9-Unit Parallel RS485/CAN (IESP600SH3)

UGX20,730,320
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX414,606Delivery in 7 days1-yr warranty
Sold by
Masrcorp Solar Uganda ✓
Delivery in 7 days · 10 In stock
UGX20,730,320
Want another price?Only one shop lists this right now. Send one request and other shops reply with their prices.
Similar products from other shops
Sosen 40kW Three Phase Hybrid Inverter for Commercial and Industrial Solar Backup 380/400VAC 4 MPPT 150-850VDC Range 8 Units Parallel IP66 (SSE-HH40K-P3EU) Sosen 40kW Three Phase Hybrid Inverter for Commercial and Industrial S... UGX17,331,600 Collective Energy Africa SRNE 12kW Hybrid Inverter for Three-Phase Commercial Backup 48V 230/400Vac Dual MPPT 800Vdc 6-Parallel RS485/CAN (ASP48120H3) SRNE 12kW Hybrid Inverter for Three-Phase Commercial Backup 48V 230/40... UGX8,045,400 BLISON ENERGY SRNE 12kW 24kVA Max Surge Hybrid Inverter for Home and Small Business Backup 48Vdc 230Vac Single-Phase Dual MPPT 125-425Vdc Parallel up to 6 Units IP20 Indoor (ASP48120S200-H) SRNE 12kW 24kVA Max Surge Hybrid Inverter for Home and Small Business... UGX8,946,718 BLISON ENERGY SRNE 10kW Single Phase Hybrid Inverter for Home solar backup and Small business power 48V Battery MPPT 425V 2-Year Warranty (ASP48100S200-H) SRNE 10kW Single Phase Hybrid Inverter for Home solar backup and Small... UGX6,879,400 BLISON ENERGY
Ways to payAll options
Pay NowBank Transfer
Warranty and returns
Warranty
1 year · this product
Returns
7 Days · unused and not installed.
Refund
Replacement only
The warranty is this product's own (1 year). Returns and refunds follow Masrcorp Solar Uganda's signed policy. If the shop doesn't reply to a claim in 48 hours, SolarMarket steps in.
Complete your systemMatched to high voltage
Solar Panels
UGX429,000
Battery
UGX34,080,800
Cables, mounting and protection
UGX41,176
With this product:
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Brand SRNE Rated Power 60000W
Max PV Input Power 120 W Max Charging Current 160A(80A+80A)
MPPT Voltage Range 150-850Vdc Nominal Output Voltage 220/380Vac,230/400Vac （3L+N+PE）
Nominal Output Frequency 50/60Hz Nominal Voltage 150-820 V
Number of MPPT Trackers 4 Surge Power 1.5 times of rated power, 10s
Product Dimensions 622x342x1010mm Product Weight 98 KG
Communication RS485 / CAN / USB / Dry Contact Waveform Pure sine wave
Efficiency 98.1% Warranty 16 years
AC Output Rated Current 86.6Aac Anti-Islanding Protection Yes
Battery Type Lithium-ion Battery Chemistry Lithium
Cooling Method Heat sink + intelligent fan cooling Current Rating 86.6 A
DC Polarity Reverse Connection Protection Yes DC Terminal insulation impedance Monitoring Yes
Discharging time 10ms (typical value) Energy 25HP
External Modules (Optional) Wi-Fi/4G Stick (Optional) Ground Fault Current Monitoring Yes
Humidity 0～100% Ingress Protection IP65
Load Motor Capacity 25HP Max Head circuit Current,60A*4
Max PV Input Current 40A*4 Max PV Voltage (DC) 600Vdc
Max. AC Input/Output Apparent Power (VA) 60000W Max. Bypass Overload Current 200A
Max. Parallel Capacity 1～9 Units Max. PV short circuit current 160A(80A+80A)
Maximum input voltage 3L/N/PE; 220/380V; 230/400V Maximum output current 95.3Aac
Noise <65dB Number of Battery Modules 2
Number of Cells 4 Output Over Current Protection Yes
Output Short Circuit Protection Yes Overcharge Protection AC type III/DC type II
Power Factor 0.8 leading to 0.8 lagging Protection Degree,IP65
PV Start-up Voltage 160Vdc Rated AC Input/Output Active Power (W) 60000W
Short-circuit Current (Isc) 60A*4 SKU SM-HYB-SRN-01327
Start Voltage 160Vdc Temperature Rating -40 to +60°C, >45°C Derated
THDi <3% (of nominal power)

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

SRNE IESP600SH3 is a 60kW 1000V Three Phase hybrid inverter for Uganda power conditions. It supports up to 120kW PV input and is suitable for Commercial, Large-scale solar, Three phase backup where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

  • SYSTEM TOPOLOGY: Three Phase architecture for compliant solar system design.
  • RATED OUTPUT POWER: 60,000W continuous output with 66, apparent power capacity, suitable for large commercial and industrial loads in Uganda.
  • THREE PHASE OUTPUT: Delivers 220/380V or 230/400V three phase output (3L+N+PE) with pure sine wave waveform and less than 3% total harmonic distortion.
  • FOUR MPPT TRACKERS: Four independent MPPT channels with 150-850V operating range and 1000V maximum input voltage, supporting up to 96kW total PV input power.
  • WIDE BATTERY VOLTAGE RANGE: Operates with 150-820V DC lithium-ion battery systems, featuring dual battery inputs with 160A total charge/discharge current capacity.
  • IP65 WEATHERPROOF DESIGN: Fully sealed enclosure rated IP65 for outdoor installation, with heat sink and intelligent fan cooling operating from -40 to +60 degrees Celsius.

What's Included

  • SRNE IESP600SH3 Hybrid Inverter unit
  • Mounting brackets and hardware
  • Communication cables (RS485, CAN)
  • User manual and installation guide
  • 5-year warranty documentation

Applications

  • Commercial and industrial solar backup power systems
  • Large-scale solar installations for factories and warehouses
  • Three phase backup for office buildings and shopping centers
  • Solar-powered water pumping and irrigation systems
  • Telecommunications and data center backup power
  • Agricultural processing facilities requiring three phase power
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What are the key specs of SRNE IESP600SH3 in Uganda?
SRNE IESP600SH3 is a 60kW Three Phase hybrid inverter in Uganda. Key specs include battery voltage range 820V, max PV input voltage 1000Vdc, max PV input power 96kW, rated AC output 60kW, communication RS485/CAN, warranty 5 yeas.
What PV voltage limits should technicians use for SRNE IESP600SH3?
For SRNE IESP600SH3, use MPPT/operating voltage range 1000Vdc, max PV input voltage 1000Vdc, and max PV input power 96kW when designing strings.
How much solar PV can be connected to SRNE IESP600SH3?
SRNE IESP600SH3 allows up to 96kW PV input power. Use max PV input voltage 1000Vdc for string sizing checks.
What battery and charge current settings apply to SRNE IESP600SH3?
SRNE IESP600SH3 is built for 820V battery systems. The battery voltage range is 820V, with maximum charging current 160A(80A+80A) and maximum discharging current 160A(80A+80A).
What AC output should buyers and installers expect from SRNE IESP600SH3?
SRNE IESP600SH3 has a rated AC output of 60kW on Three Phase output. It operates with grid frequency the listed grid frequency and AC voltage range 220/380Vac,230/400Vac （3L+N+PE）. If needed, use the listed input range for compatibility checks.
What should buyers compare before ordering SRNE IESP600SH3 in Uganda?
Compare verified seller pricing, warranty terms, authenticity, and installer support for SRNE IESP600SH3. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.
