| Brand | Growatt | Model | SPF 5000 ES |
|---|---|---|---|
| Rated Power | 5000 VA | Max PV Input Power | 6000 W |
| Max Charging Current | 80A | MPPT Voltage Range | 120-430 V |
| Nominal Output Voltage | 230 Vac | Nominal Output Frequency | 50/60 Hz |
| Nominal Voltage | 48 V | Number of MPPT Trackers | 1 |
| Surge Power | 10000 VA | Product Dimensions | 330 x 485 x 135 mm (W x H x D) |
| Product Weight | 12 KG | Waveform | Pure sine wave |
| Efficiency | 93 % | Operating Temperature | 0 to 55 C |
| Battery Type | Lithium / Lead-acid | Chemistry | Lead-acid |
| Current Rating | 100 A | Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Ingress Protection | IP20 | Input AC Voltage Range | 170-280 Vac (PC mode), 90-280 Vac (appliance mode) |
| Input Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | Inverter Type | Off-grid |
| Max AC Input Voltage | 230 VAC | Max PV Input Current | 22 A |
| Max PV Short Circuit Current (per tracker) | 22A | Max PV Voltage (DC) | 450 V |
| Max. AC Input/Output Apparent Power (VA) | 5000VA/ 5000W | Max. PV short circuit current | Datasheet SPF 5000 ES |
| Maximum Charge Power | 6000W | Parallel Operation | Yes, up to 6 units |
| Permissible Altitude | <2000m | Phase | Single phase |
| Protection | degree,IP20 | Short-circuit Current (Isc) | Datasheet SPF 5000 ES |
| SKU | SM-HYB-GRO-01198 | Start Voltage | 48 |
| Storage Temperature | -15°C - 60°C | Transfer Time | 10 ms typical, 20 ms max |
Notice a wrong or outdated datasheet? Help us fix it.

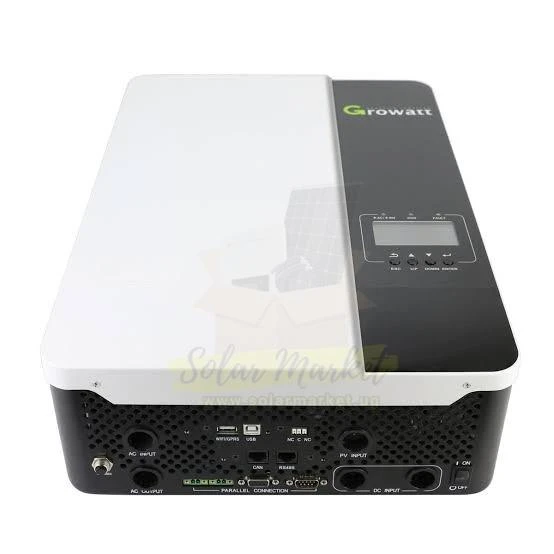

Growatt SPF-5000-ES is a 5kW 48V hybrid inverter for Uganda power conditions. It supports up to 6kW PV input and is suitable for Home solar backup, Small business power, Off-grid solar where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering
