What AC output should buyers and installers expect from Felicity IVGM16KLP3G1?

Felicity IVGM16KLP3G1 has a rated AC output of 16kW on 3L+N+PE output, with 220/380,230/400Vac(-20%~+15%) and 50/60 Hz(45~55Hz/55~65Hz) grid frequency. Use the 2/2+2 and 800V for inverter matching, and pair it with 40V~60V battery systems. It is built for battery-backed sites that need stable AC delivery, RS485/CAN communication, WiFi/4G monitoring, and 5 Years/10 Years.

Does this product support hire purchase in Uganda?

Some sellers provide in-house hire purchase plans for this product. Available plans, monthly installments, upfront payment, and terms are shown on this product page.

How do I apply for a solar loan or installment plan in Uganda?

Select an available financing plan on the product page, review payment schedule and terms, then continue with the application flow.

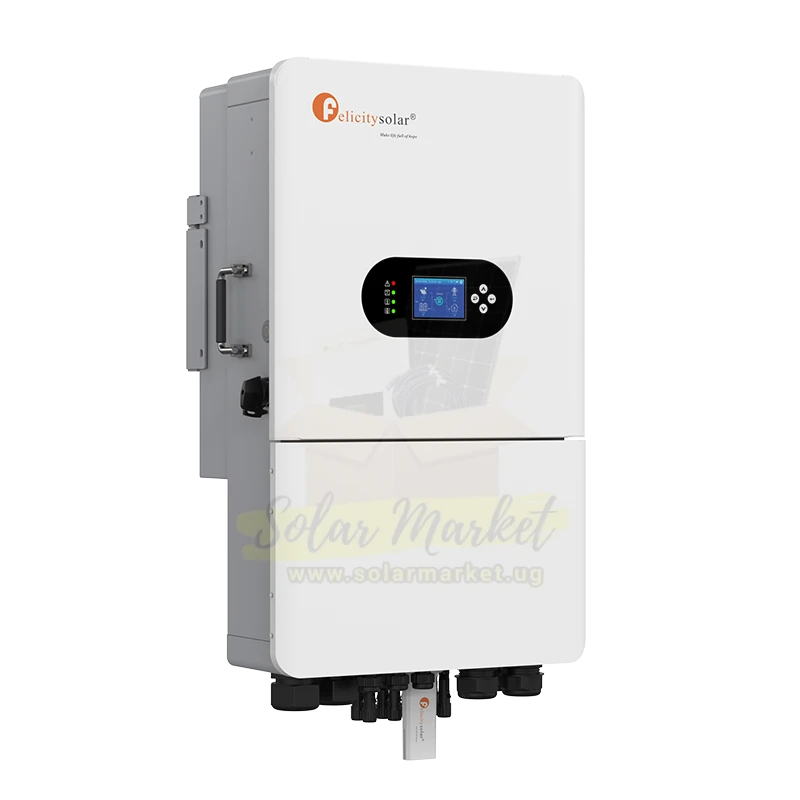

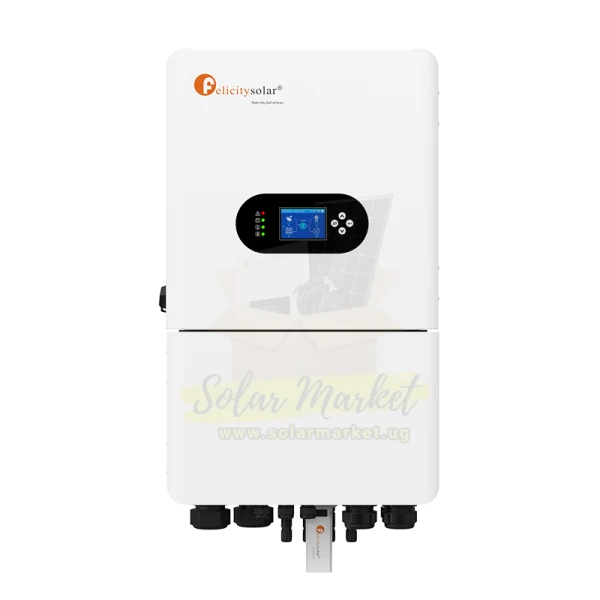

Felicity IVGM16KLP3G1 16kW Hybrid Inverter, Three Phase, 800V, Max MPPT 800V, Supports up to 25.6kW PV Input, 2 MPPTs, RS485/CAN, WiFi Monitoring, For Three-phase homes, Commercial offices, 5

Name: Felicity IVGM16KLP3G1 16kW Hybrid Inverter, Three Phase, 800V, Max MPPT 800V, Supports up to 25.6kW PV Input, 2 MPPTs, RS485/CAN, WiFi Monitoring, For Three-phase homes, Commercial offices, 5
Brand: Felicity
SKU: SM-CAT-GEN-00589
Price: 7514100.00 UGX
Availability: InStock

Felicity

0 out of 5 | 0 Ratings | Q&A

About this item

Product spotlights

Highlights: Felicity IVGM16KLP3G1 is a 16kW 800V Three Phase hybrid inverter in Uganda. It supports up to 25.6kW PV input and is built for Three-phase homes, Commercial offices, Retail premises where battery-backed continuity and stable AC output matter

UGX8,349,000 /Pcs

1 Days

VAT incl.

3 available

Minimum order qty 1

QTY

Order on WhatsApp

Compare With Similar capacity this category

Estimate Shipping Time 1 Days

Sold by Masrcorp Solar Uganda

Message Seller

Brand Felicity

Products from this brand

Product Information

Technical specifications

Brand	Felicity	Model	IVGM16KLP3G1
Rated Power	16k	Max PV Input Power	25.6
Max Charging Current	300	MPPT Voltage Range	160V-650
Nominal DC Input Voltage	550	Nominal Output Frequency	50/60Hz(45~55Hz/55~65Hz)
Nominal Voltage	40V~60V	Number of MPPT Trackers	2 (36A+36A)
Surge Power	15KW	Product Dimensions	750x450x268
Product Weight	48.7	Communication	RS485/CAN
Warranty	10	AC Output Rated Current	16.5A
AC Wiring Mode	3L+N+PE	Anti-Islanding Protection	Yes
Arc Fault Circuit Interrupter (AFCI)	Yes	Battery Type	Li-Ion / Lead-acid
DC Component Monitoring	Yes	DC Polarity Reverse Connection Protection	Yes
DC Terminal insulation impedance Monitoring	Yes	Earth Fault Detection	Yes
Float Charge Voltage	40–60	Full Load DC Voltage Range	416V-800V
Ground Fault Current Monitoring	Yes	Ingress Protection	IP65
Input AC Voltage Range	220/380,230/400Vac(-20%~+15%)	Max AC Input Voltage	800V
Max PV Input Current	36+36(A)	Max. AC Input/Output Apparent Power (VA)	17.6kVA
Max. Continuous AC Passthrough	21.8A	Monitor Module	WiFi/4G
Output Over Current Protection	23.9A	Output Short Circuit Protection	Yes
Overcharge Protection	Yes	Peak Current (15s)	300
Protection	IP65	Protection level	TYPE I\|(DC), TYPE I\|(AC)
PV Start-up Voltage	160	Rated AC Input/Output Active Power (W)	16K W
Residual Current (RCD) Detection	Yes	Safety	EMC/Standard,"IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2"
Safety Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2	Scalability (Parallel Units)	Max 10 units
SKU	SM-CAT-GEN-00589

Notice a wrong or outdated datasheet? Help us fix it.

Freelancers

Verified

Verified Solar Installers for this Product

View All

Kibozeeyi John

Skilled Solar Installer – Expertise in Felicity, CWorth, & other quality brands

Kampala

Solar Installation Solar Panel Cleaning Solar System Design

View Profile

ETIENE MAATE

ElectroMechanical Engineer

Kampala

Project Management Solar Water heater Solar System Design

View Profile

Tamale Muhamad

Expert Solar Systems Designer & Installer – Powering Your Future!

Kampala

Solar Installation Solar Panel Cleaning Solar Water heater

View Profile

Francis Ekapuloni

Professional Solar Expert

Kampala

Solar Installation Solar Energy Audits

View Profile

Kizito Vincent

I am a technician dealing in hydro and solar power, security systems, networking...

Kampala

IT Support Electrical Repairs Battery Wiring

View Profile

Okitwi Francis

Certified solar technician based in Tororo

Tororo

Solar Installation Inverter Setup Solar System Design

View Profile

Ndawula Muhamadi

Hybrid Solar Wholesale Supplier & Installer Expert

Masaka

Solar Installation Solar System Design Solar Energy Audits

View Profile

WASSWA Emmy

Solar installer

Bugiri

Electrical Repairs Solar System Design Electrical Installation

View Profile

Osama Mathew

Solar | water pumps | Backup systems

Kampala

Lighting Troubleshooting CAD Design

View Profile

ANITA

Solar system installation

Kampala

Electrical Repairs Appliance Repair Solar Installation

View Profile

Swipe/scroll to see more →

Description

Specs & details

Overview

Felicity IVGM16KLP3G1 is a 16kW 800V Three Phase hybrid inverter for Uganda power conditions. It supports up to 25.6kW PV input and is suitable for Three-phase homes, Commercial offices, Retail premises where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

SYSTEM TOPOLOGY: Three Phase architecture for compliant solar system design.
THREE-PHASE OUTPUT: Supports 220/380Vac or 230/400Vac operation with 3L+N+PE wiring for three-phase installations.
16KW RATED POWER: Delivers 16kW rated AC input/output active power for medium to large solar loads.
HIGH-VOLTAGE PV INPUT: Accepts PV strings up to 800V with MPPT range from 160V to 650V for flexible array design.
BATTERY COMPATIBILITY: Works with Li-ion and lead-acid batteries in the 40V to 60V range.
BMS AND MONITORING: Supports RS485/CAN communication with BMS and remote monitoring through WiFi or 4G.

Product FAQs

Felicity IVGM16KLP3G1 is a 16kW Three Phase hybrid inverter in Uganda. Key specs include battery voltage range 40V~60V, MPPT layout 2 MPPTs, max PV input voltage 800V, max PV input power 25.6kW, rated AC output 16kW, communication RS485/CAN, monitoring WiFi/4G, warranty 5 Years/10 Years.

Browse live offers

For Felicity IVGM16KLP3G1, use max PV input voltage 800V, MPPT layout 2 MPPTs when designing strings.

Browse live offers Find technicians

Felicity IVGM16KLP3G1 allows up to 25.6kW PV input power. Use max PV input voltage 800V, MPPT layout 2 MPPTs for string sizing checks.

Browse live offers

Felicity IVGM16KLP3G1 is built for 40V~60V battery systems. The battery voltage range is 40V~60V, with maximum charging current 330A and maximum discharging current 330A.

Browse live offers

Felicity IVGM16KLP3G1 has a rated AC output of 16kW on 3L+N+PE output, with 220/380,230/400Vac(-20%~+15%) and 50/60 Hz(45~55Hz/55~65Hz) grid frequency.

Browse live offers Request quotes Find technicians

Compare verified seller pricing, warranty terms, authenticity, and installer support for Felicity IVGM16KLP3G1. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.

Browse live offers Compare models Request quotes
