What AC output should buyers and installers expect from Felicity IVGM15KLP3G1?

Felicity IVGM15KLP3G1 has a rated AC output of 15kW on 3L+N+PE output, with 220/380,230/400Vac(-20%~+15%) and 50/60 Hz(45~55Hz/55~65Hz) grid frequency. Use the 2/2+2 and 800V for inverter matching, and pair it with 40V~60V battery systems. It is built for battery-backed sites that need stable AC delivery, RS485/CAN communication, WiFi/4G monitoring, and 5 Years/10 Years.

Does this product support hire purchase in Uganda?

Some sellers provide in-house hire purchase plans for this product. Available plans, monthly installments, upfront payment, and terms are shown on this product page.

How do I apply for a solar loan or installment plan in Uganda?

Select an available financing plan on the product page, review payment schedule and terms, then continue with the application flow.

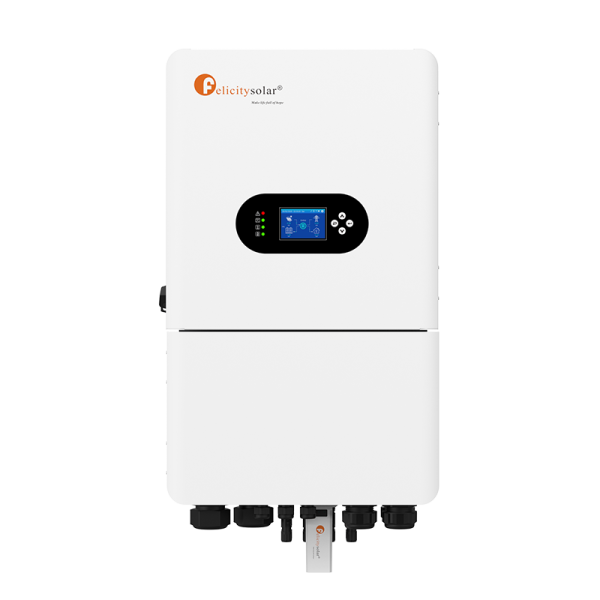

Felicity IVGM15KLP3G1 15kW Hybrid Inverter, Three Phase, 800V, Max MPPT 800V, Supports up to 25.6kW PV Input, 2 MPPTs, RS485/CAN, WiFi Monitoring, For Three-phase homes, Small and medium, 5 Y

Name: Felicity IVGM15KLP3G1 15kW Hybrid Inverter, Three Phase, 800V, Max MPPT 800V, Supports up to 25.6kW PV Input, 2 MPPTs, RS485/CAN, WiFi Monitoring, For Three-phase homes, Small and medium, 5 Y
Brand: Felicity
SKU: SM-CAT-FEL-00896
Price: 7514100.00 UGX
Availability: InStock

Felicity

0 out of 5 | 0 Ratings | Q&A

About this item

Product spotlights

Highlights: Felicity IVGM15KLP3G1 is a 15kW 800V Three Phase hybrid inverter in Uganda. It supports up to 25.6kW PV input and is built for Three-phase homes, Small and medium, Off-grid or weak-grid where battery-backed continuity and stable AC output matter

UGX8,349,000 /Pcs

VAT incl. Presale enabled

1 available

Minimum order qty 1

QTY

Order on WhatsApp

Compare With Similar capacity Three-Phase Inverters

Sold by Masrcorp Solar Uganda

Message Seller

Brand Felicity

Products from this brand

Product Information

Technical specifications

Brand	Felicity	Model	IVGM15KLP3G1
Max PV Input Power	25.6	Max Charging Current	330A
MPPT Voltage Range	160V-650	Nominal DC Input Voltage	550
Nominal Output Frequency	50/60Hz(45~55Hz/55~65Hz)	Nominal Voltage	40V~60V
Number of MPPT Trackers	36+36(A)	Surge Power	2 times Rated Power, 10s
Product Dimensions	750x450x268	Product Weight	48.7
Communication	RS485/CAN	Warranty	10
AC Output Rated Current	16.5A	AC Wiring Mode	3L+N+PE
Anti-Islanding Protection	Yes	Arc Fault Circuit Interrupter (AFCI)	Yes
Battery Type	Li-Ion / Lead-acid	DC Component Monitoring	Yes
DC Polarity Reverse Connection Protection	Yes	DC Terminal insulation impedance Monitoring	Yes
Earth Fault Detection	Yes	Full Load DC Voltage Range	416V-800V
Ground Fault Current Monitoring	Yes	Input AC Voltage Range	220/380,230/400Vac(-20%~+15%)
Max PV Input Current	22.4kW	Max PV Voltage (DC)	800
Max. AC Input/Output Apparent Power (VA)	17.6kVA	Max. Continuous AC Passthrough	21.8A
Monitor Module	WiFi/4G	Output Over Current Protection	23.9A
Output Short Circuit Protection	Yes	Overcharge Protection	Yes
Protection level	TYPE I\|(DC), TYPE I\|(AC)	PV Start-up Voltage	160
Rated AC Input/Output Active Power (W)	15KW W	Residual Current (RCD) Detection	Yes
Safety	EMC/Standard,"IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2"	Safety Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
SKU	SM-CAT-FEL-00896

Notice a wrong or outdated datasheet? Help us fix it.

Freelancers

Verified

Verified Solar Installers for this Product

View All

ETIENE MAATE

ElectroMechanical Engineer

Kampala

Project Management Solar Water heater Solar System Design

View Profile

Kizito Vincent

I am a technician dealing in hydro and solar power, security systems, networking...

Kampala

IT Support Electrical Repairs Battery Wiring

View Profile

Tamale Muhamad

Expert Solar Systems Designer & Installer – Powering Your Future!

Kampala

Solar Installation Solar Panel Cleaning Solar Water heater

View Profile

Kibozeeyi John

Skilled Solar Installer – Expertise in Felicity, CWorth, & other quality brands

Kampala

Solar Installation Solar Panel Cleaning Solar System Design

View Profile

WASSWA Emmy

Solar installer

Bugiri

Electrical Repairs Solar System Design Electrical Installation

View Profile

Ndawula Muhamadi

Hybrid Solar Wholesale Supplier & Installer Expert

Masaka

Solar Installation Solar System Design Solar Energy Audits

View Profile

ANITA

Solar system installation

Kampala

Electrical Repairs Appliance Repair Solar Installation

View Profile

Osama Mathew

Solar | water pumps | Backup systems

Kampala

Lighting Troubleshooting CAD Design

View Profile

Okitwi Francis

Certified solar technician based in Tororo

Tororo

Solar Installation Inverter Setup Solar System Design

View Profile

Francis Ekapuloni

Professional Solar Expert

Kampala

Solar Installation Solar Energy Audits

View Profile

Swipe/scroll to see more →

Description

Specs & details

Overview

Felicity IVGM15KLP3G1 is a 15kW 800V Three Phase hybrid inverter for Uganda power conditions. It supports up to 25.6kW PV input and is suitable for Three-phase homes, Small and medium, Off-grid or weak-grid where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

SYSTEM TOPOLOGY: Three Phase architecture for compliant solar system design.
15KW THREE-PHASE OUTPUT: Rated AC input/output active power is 15kW, with three-phase 220/380V or 230/400V operation for sites that require balanced load support.
LOW-VOLTAGE BATTERY COMPATIBILITY: Works with Li-ion and lead-acid battery banks in the 40V to 60V range, which suits common low-voltage storage configurations.
HIGH-VOLTAGE PV INPUT: Supports up to 25.6kW PV input power, 800V maximum PV input voltage, and 160V to 650V MPPT range for larger solar arrays.
GRID AND BACKUP OPERATION: Designed for hybrid use with grid input/output, off-grid peak power capability of 15kW, and continuous grid-to-load passthrough up to 21.8A.
COMMUNICATION AND MONITORING: Includes RS485/CAN communication with BMS plus WiFi/4G monitoring for system visibility and battery integration.

Product FAQs

Felicity IVGM15KLP3G1 is a 15kW Three Phase hybrid inverter in Uganda. Key specs include battery voltage range 40V~60V, MPPT layout 2 MPPTs, max PV input voltage 800V, max PV input power 25.6kW, rated AC output 15kW, communication RS485/CAN, monitoring WiFi/4G, warranty 5 Years/10 Years.

Browse live offers

For Felicity IVGM15KLP3G1, use max PV input voltage 800V, MPPT layout 2 MPPTs when designing strings.

Browse live offers Find technicians

Felicity IVGM15KLP3G1 allows up to 25.6kW PV input power. Use max PV input voltage 800V, MPPT layout 2 MPPTs for string sizing checks.

Browse live offers

Felicity IVGM15KLP3G1 is built for 40V~60V battery systems. The battery voltage range is 40V~60V, with maximum charging current 330A and maximum discharging current 330A.

Browse live offers

Felicity IVGM15KLP3G1 has a rated AC output of 15kW on 3L+N+PE output, with 220/380,230/400Vac(-20%~+15%) and 50/60 Hz(45~55Hz/55~65Hz) grid frequency.

Browse live offers Request quotes Find technicians

Compare verified seller pricing, warranty terms, authenticity, and installer support for Felicity IVGM15KLP3G1. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.

Browse live offers Compare models Request quotes
