What AC output should buyers and installers expect from Felicity T-rex-50khp3g01?

Rated AC output is 55kW, frequency is <3% (At Rated Power).

Does this product support hire purchase in Uganda?

Some sellers provide in-house hire purchase plans for this product. Available plans, monthly installments, upfront payment, and terms are shown on this product page.

How do I apply for a solar loan or installment plan in Uganda?

Select an available financing plan on the product page, review payment schedule and terms, then continue with the application flow.

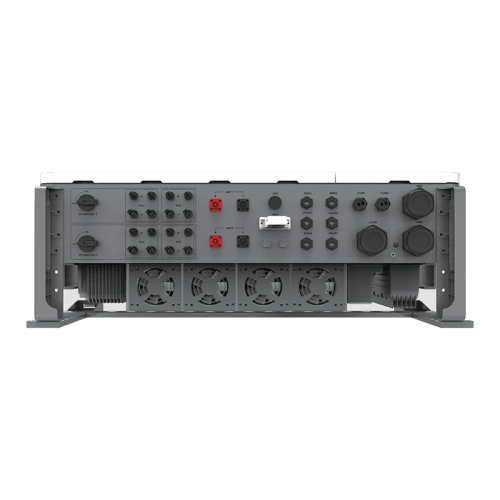

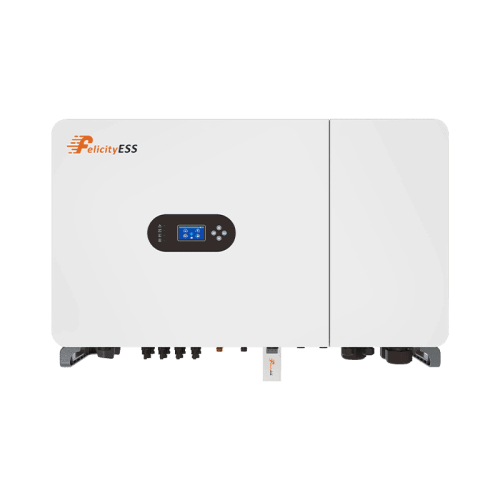

50kW Three Phase HV Hybrid Inverter IVGM50K HP3G01 600V, RS485/CAN, WiFi Monitoring, For Commercial buildings, Schools

Name: 50kW Three Phase HV Hybrid Inverter IVGM50K HP3G01 600V, RS485/CAN, WiFi Monitoring, For Commercial buildings, Schools
Brand: Felicity
SKU: SM-CAT-FEL-00838
Price: 13939200.00 UGX
Availability: InStock

Felicity

0 out of 5 | 0 Ratings | Q&A

About this item

Product spotlights

Highlights: Felicity T-rex-50khp3g01 is a 55kW 1000V hybrid inverter in Uganda. It supports up to 65kW PV input and is built for Commercial buildings, Schools, Hospitals and clinics where battery-backed continuity and stable AC output matter

UGX15,488,000 /Pcs

1 Days

VAT incl.

2 available

Minimum order qty 1

QTY

Order on WhatsApp

Compare With Similar capacity Three-Phase Inverters

Estimate Shipping Time 1 Days

Sold by Masrcorp Solar Uganda

Message Seller

Brand Felicity

Products from this brand

Product Information

Technical specifications

Brand	Felicity	Model	T-rex-50khp3g01,
Rated Power	50K	Max PV Input Power	65K
Max Charging Current	50+50(A)	MPPT Voltage Range	200~850Vd.c
Nominal Voltage	160~800Vd.c	Number of MPPT Trackers	4
Communication	RS485,CAN,WiFi/GPRS	Efficiency	97.6%
Operating Temperature	-25 to 60 °C (> 50 °C derating)	Warranty	10
AC Output Rated Current	79.7A	AC Wiring Mode	3W+N+PE/3W+PE
Anti-Islanding Protection	Integrated	Battery terminals	2
Battery Type	LFP (LiFePO4)	Cooling Method	IEC
DC Polarity Reverse Connection Protection	Integrated	Full Load DC Voltage Range	450~850Vd.c
Grid Regulation	Integrated	Ground Fault Current Monitoring	Integrated
Humidity	0 ~ 95% (No condensation)	Ingress Protection	IP65
Insulation Resistor Detection	Integrated	Lightning protection device	Integrated
Max AC Input Voltage	1000Vd.c.	Max PV Input Current	36+36+36+36(A)
Max. AC Input/Output Apparent Power (VA)	55kW	Min. DC Input Voltage	150Vd.c
Output Over Current Protection	Integrated	Output Short Circuit Protection	Integrated
Power Factor	0.8( leading) to 0.8 (lagging)	PV Start-up Voltage	250Vd.c
Safety	EMC/Standard	Safety Standard	EMC/Standard
SKU	SM-CAT-FEL-00838	THDi	<3% (At Rated Power)

Notice a wrong or outdated datasheet? Help us fix it.

Freelancers

Verified

Verified Solar Installers for this Product

View All

Osama Mathew

Solar | water pumps | Backup systems

Kampala

Lighting Troubleshooting CAD Design

View Profile

Tamale Muhamad

Expert Solar Systems Designer & Installer – Powering Your Future!

Kampala

Solar Installation Solar Panel Cleaning Solar Water heater

View Profile

Okitwi Francis

Certified solar technician based in Tororo

Tororo

Solar Installation Inverter Setup Solar System Design

View Profile

Ndawula Muhamadi

Hybrid Solar Wholesale Supplier & Installer Expert

Masaka

Solar Installation Solar System Design Solar Energy Audits

View Profile

WASSWA Emmy

Solar installer

Bugiri

Electrical Repairs Solar System Design Electrical Installation

View Profile

Kibozeeyi John

Skilled Solar Installer – Expertise in Felicity, CWorth, & other quality brands

Kampala

Solar Installation Solar Panel Cleaning Solar System Design

View Profile

ANITA

Solar system installation

Kampala

Electrical Repairs Appliance Repair Solar Installation

View Profile

Kizito Vincent

I am a technician dealing in hydro and solar power, security systems, networking...

Kampala

IT Support Electrical Repairs Battery Wiring

View Profile

Francis Ekapuloni

Professional Solar Expert

Kampala

Solar Installation Solar Energy Audits

View Profile

ETIENE MAATE

ElectroMechanical Engineer

Kampala

Project Management Solar Water heater Solar System Design

View Profile

Swipe/scroll to see more →

Description

Specs & details

Overview

Felicity T-rex-50khp3g01 is a 50kW 1000V hybrid inverter for Uganda power conditions. It supports up to 65kW PV input and is suitable for Commercial buildings, Schools, Hospitals and clinics where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

HIGH-VOLTAGE BATTERY SUPPORT: Works with LFP battery systems in the 160–800Vd.c range, making it suitable for HV storage architectures.
THREE-PHASE GRID COMPATIBILITY: Supports 220/380Vac and 230/400Vac three-phase operation for commercial and larger residential power systems.
55KW RATED AC OUTPUT: Sized for higher-load applications where a single inverter must support substantial daytime and backup demand.
65KW PV INPUT CAPACITY: Allows larger solar array design with headroom for array sizing and seasonal generation planning.
4 MPPT TRACKERS: Supports multiple array orientations or string groupings to improve design flexibility on complex rooftops or ground mounts.
SMART MONITORING AND BMS COMMUNICATION: Includes RS485, CAN, WiFi, and GPRS communication options for battery management and remote system oversight.

Product FAQs

Felicity T-rex-50khp3g01 is a 55kW hybrid inverter in Uganda. Key specs include battery voltage range 800V, max PV input power 65kW, rated AC output 55kW, communication RS485/CAN, monitoring WiFi Monitoring.

Browse live offers

For Felicity T-rex-50khp3g01, use when designing strings.

Browse live offers Find technicians

Felicity T-rex-50khp3g01 allows up to 65kW PV input power. Use the datasheet voltage limits for string sizing checks.

Browse live offers

Felicity T-rex-50khp3g01 battery type is LFP (LiFePO4), battery voltage range is 800V, maximum charging current is 50+50(A), maximum discharging current is 50+50(A).

Browse live offers

Rated AC output is 55kW, frequency is

Browse live offers Request quotes Find technicians

Compare verified seller pricing, warranty terms, authenticity, and installer support for Felicity T-rex-50khp3g01. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, and warranty against the datasheet.

Browse live offers Compare models Request quotes
