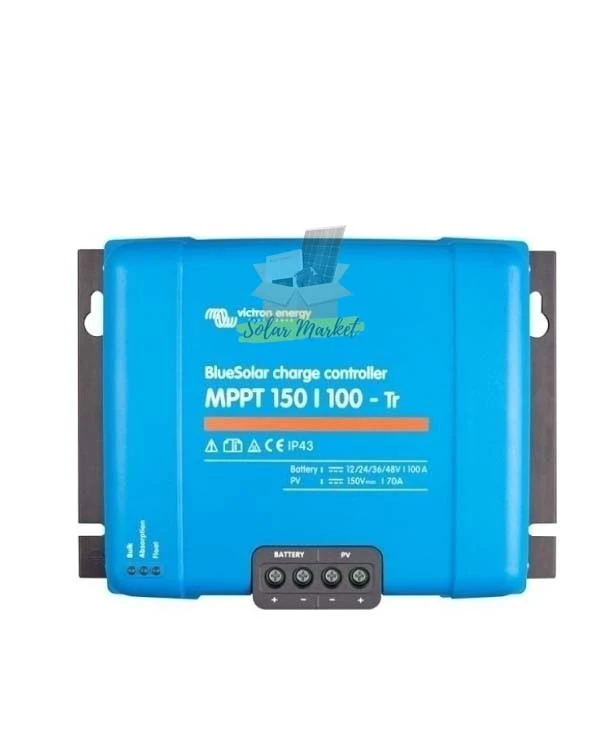

Victron 150/100 VE.Can MPPT Charge Controller 48V HV for Residential solar, Commercial solar, Institutional and

Name: Victron 150/100 VE.Can 48V HV MPPT Charge Controller | Best
Brand: victron
SKU: VICTRONS-300-0

Brand victron

Ask about this product

0 /5.0 (0 reviews)

SKU VICTRONS-300-0

Pricing

UGX3,206,500 /Pc

10 available

Minimum order qty 1

QTY

Receive up to 4 quotations from different suppliers of this product

Estimate Shipping Time 1 Days

Inhouse product

Message Seller

Brand victron

Products from this brand

Product spotlights

Highlights: HV configuration. The Victron 150/100 VE.Can MPPT Charge Controller supports low voltage (LV) battery systems and is compatible with both single and multi-phase solar setups. Designed for Uganda’s diverse solar needs, it offers advanced data communication and high efficiency for reliable off-grid and grid-tied installations.

Brand	Victron	Model	150/100 VE.Can MPPT Charge Controller
Max Charging Current	100	Nominal Voltage	12/24/48V Auto Select (36V: manual)
Product Dimensions	246 x 295 x 103mm	Communication	VE.Can, VE.Direct and Bluetooth
Efficiency	98	Battery terminals	35mm² / AWG2
Charging Algorithm	multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm	Humidity	95 %, non-condensing
Max PV Short Circuit Current (per tracker)	70A (max 30A per MC4 conn.)	Max PV Voltage (DC)	150
Programmable Relay	4,5kg	Protection	PV reverse polarity / Output short circuit / Over temperature
Protection Category (IP)	IP43 (electronic components), IP22 (connection area)	PV terminals	Three pairs of MC4 connectors (MC4 models)
Remote On/Off	Yes (2 pole connector)	Safety	EN/IEC 62109-1, UL 1741, CSA C22.2
Self-consumption	Less than 35 mA @ 12V / 20 mA @ 48V	SKU	SM-MPP-VIC-00251
Temperature Compensation Range	-16 mV / -32 mV / -64 mV / °C

Notice a wrong or outdated datasheet? Help us fix it.

Compare With Similar capacity MPPT Charge Controller

Cash on Delivery Available
Free Shipping

0.0

Average Rating

Verified Reviews

Product Questions

Units In Stock

Freelancers

Verified

Verified Solar Installers for this Product

View All

No freelancers found for this skill.

Description

Specs & details

Overview

HV configuration. The Victron 150/100 VE.Can MPPT Charge Controller is engineered for robust solar installations in Uganda, supporting 12V, 24V, 36V (manual), and 48V battery banks within the low voltage (LV) class. Its 100A charge current and 150V PV input rating enable flexible system design for both single-phase and multi-phase applications. The controller features adaptive multi-stage charging algorithms, extensive data logging, and multiple communication interfaces including VE.Can, VE.Direct, and Bluetooth for seamless integration and remote monitoring. Built to operate reliably in demanding environments, it offers comprehensive protection features and supports parallel operation for scalable systems. This makes it suitable for residential, commercial, and institutional solar projects requiring advanced control and high efficiency.

About this item

SYSTEM TOPOLOGY: HV architecture for compliant solar system design.
MPPT TECHNOLOGY: Tracks maximum power point for optimal solar energy harvest.
MULTI-VOLTAGE SUPPORT: Compatible with 12V, 24V, 36V (manual), and 48V LV battery systems.
HIGH CHARGE CURRENT: Delivers up to 100A for large-scale solar arrays.
ADVANCED COMMUNICATION: VE.Can, VE.Direct, and Bluetooth interfaces for system integration and monitoring.
PARALLEL OPERATION: Supports synchronized operation with up to 25 units via VE.Can.
