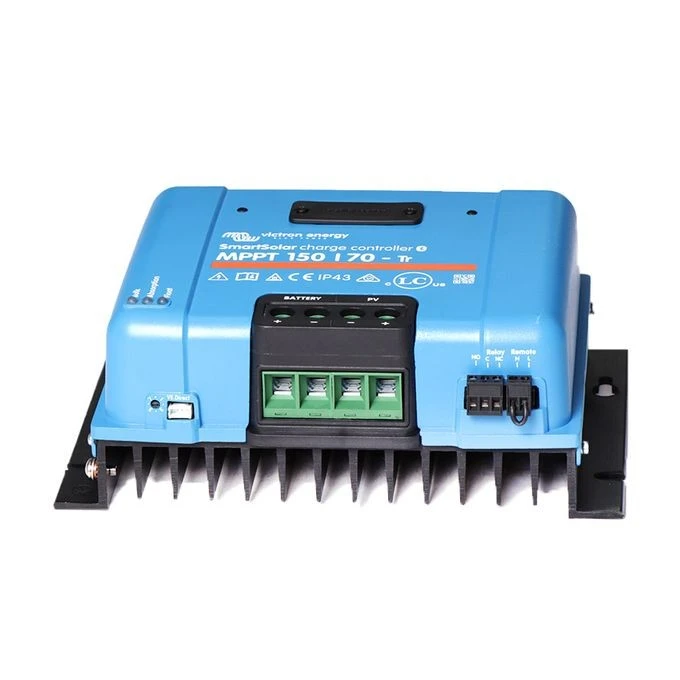

Victron 150/70 MPPT Charge Controler for Residential solar, Small commercial solar, Telecom and remote

Name: Victron 150/70 MPPT Charge Controler | Best Price Uganda
Brand: victron
SKU: 117

Brand victron

Ask about this product

0 /5.0 (0 reviews)

SKU 117

Pricing

UGX2,758,800 /pc

10 available

Minimum order qty 1

QTY

Receive up to 4 quotations from different suppliers of this product

Inhouse product

Message Seller

Brand victron

Products from this brand

Product spotlights

Highlights: HV configuration. The Victron 150/70 is a 4kVA, 48V, low voltage (LV), single phase pure sine wave (PSW) solar inverter with integrated MPPT charge controller. Designed for Uganda’s off-grid and hybrid solar systems, it supports flexible battery voltages and advanced data monitoring via Bluetooth or VE.Direct.

Brand	Victron	Model	Smart 150/70
SKU	117	Nominal DC Input Voltage	2V
Max Charge Current	50 A	Max PV Open Circuit Voltage (VOC)	150 V
Max PV Input Power	1000 W	Operating Temperature	-30 to +60 °C (full rated output up to 40 °C)
Net Weight	3 KG	Product Dimensions	185 x 250 x 95 mm; MC4 models: 215 x 250 x 95 mm
Certifications	EN/IEC 62109-1, UL 1741, CSA C22.2	Charge Algorithm	multi-stage adaptive
Parallel Operation	Yes: up to 10 units can be synchronized with Bluetooth	Programmable Relay	DPST AC rating: 240 VAC / 4 A DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC
brand	Victron	Battery-connection	35 mm² / AWG2
Safety	PV reverse polarity / Output short circuit / Over temperature	Max. efficiency	98 %
Humidity (non-condensing)	95 %, non-condensing	Protection category	IP43 (electronic components), IP22 (connection area)
Data communication port	VE.Direct or Bluetooth	PV terminals	35 mm² / AWG2 (Tr models); Two pairs of MC4 connectors (MC4 models)
Battery voltage	2V	Rated charge current	70 A
Nominal PV power, 12 V	1000 W	Max. PV short circuit current	50 A
Max PV Open Circuit Voltage (Voc)	150 V	Maximum efficiency	98 %
Charge algorithm	multi-stage adaptive	Protection	PV reverse polarity / Output short circuit / Over temperature
Operating temperature	-30 to +60 °C (full rated output up to 40 °C)	Humidity	95 %, non-condensing
Programmable relay	DPST AC rating: 240 VAC / 4 A DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC	Parallel operation	Yes: up to 10 units can be synchronized with Bluetooth
Battery terminals	35 mm² / AWG2	Weight	3 KG
Dimensions (h x w x d)	185 x 250 x 95 mm; MC4 models: 215 x 250 x 95 mm	model	Smart 150/70

Notice a wrong or outdated datasheet? Help us fix it.

Compare With Similar capacity MPPT Charge Controller

0.0

Average Rating

Verified Reviews

Product Questions

Units In Stock

Freelancers

Verified

Verified Solar Installers for this Product

View All

Andrew Kamugisha

Expert Property Search & Valuation in Kampala – Secure Your Ideal Investment

Kampala

Html 5 Html 5 Affiliate Marketing

View Profile

Ssonko David

Commercial and Industrial solar Engineer

Kampala

Solar Installation Solar Water heater Solar System Design

View Profile

Lukeke Daniel

Electrician in solar and electrical installation

Kampala

Electrical Repairs Solar Installation Solar System Design

View Profile

Alan Roggers Okwera

Client satisfaction

Not provided

Feasibility Studies CAD Design Electrical Design

View Profile

Hanifah Najjuma

Solar Energy Auditor & Appliance Installation Pro - Efficient Solutions for Your...

Kampala

Appliance Installation Solar Energy Audits

View Profile

Akol Alice

Data Entry Pro & Public Speaking Maven with AI, Math Tutoring, Solar System & Ne...

Pallisa

Web Design AI Training Network Setup

View Profile

Ndawula Muhamadi

Hybrid Solar Wholesale Supplier & Installer Expert

Masaka

Solar Installation Solar System Design Solar Energy Audits

View Profile

ANITA

Solar system installation

Kampala

Electrical Repairs Appliance Repair Solar Installation

View Profile

Orofino Brian

YOUR GO-TO TECHNICIAN FOR ELECTRICAL AND SOLAR POWER NEEDS

Kampala

Electrical Repairs Solar Installation Computer Literacy

View Profile

Kaswa Tom

Solar and Electrical expert

Mukono

Inverter Repair Generator Repair Solar System Design

View Profile

Swipe/scroll to see more →

Description

Specs & details

Overview

HV configuration. The VVictron 150/70 MPPT Charge Controler is engineered for reliable performance in Uganda’s diverse energy environments. With a maximum PV input of 4kVA at 48V and support for 12, 24, 36, and 48V battery banks (auto-select), this inverter is suitable for both residential and commercial solar installations requiring low voltage (LV), single phase operation. The integrated MPPT charge controller maximizes solar harvest with up to 98% efficiency, while adaptive multi-stage charging algorithms ensure optimal battery management. Advanced protection features guard against PV reverse polarity, output short circuit, and over-temperature conditions. Data communication is enabled via VE.Direct or Bluetooth, allowing for remote monitoring and configuration. The inverter supports parallel operation of up to 10 units, making it scalable for larger systems. Designed for indoor, unconditioned environments, it meets international safety standards and is suitable for installation up to 2000m altitude at full rated output.

About this item

SYSTEM TOPOLOGY: LV architecture for compliant solar system design.
MULTI-VOLTAGE BATTERY SUPPORT: Compatible with 12V, 24V, 36V, and 48V battery banks (auto-select; 36V via software tool).
HIGH CHARGE CURRENT: Delivers up to 70A rated charge current for efficient battery charging.
INTEGRATED MPPT CONTROLLER: Maximizes solar energy harvest with up to 98% conversion efficiency.
DATA MONITORING: VE.Direct and Bluetooth connectivity for real-time system monitoring and configuration.
PARALLEL OPERATION: Supports synchronization of up to 10 units for scalable installations.

Product FAQs

The inverter supports 12V, 24V, 36V (via software tool), and 48V battery banks with automatic voltage selection.

Yes, the Victron 150/70 is designed for low voltage (LV), single phase solar installations, making it suitable for most residential and small commercial applications in Uganda.

Yes, the inverter features VE.Direct and Bluetooth connectivity for remote monitoring and configuration using compatible devices.

Up to 10 Victron 150/70 units can be synchronized in parallel for increased system capacity.

The inverter includes protection against PV reverse polarity, output short circuit, and over-temperature conditions.

The maximum nominal PV input power at 48V is 4kVA (4000W).

No, the Victron 150/70 is designed for indoor, unconditioned environments and should not be installed outdoors.
