Felicity · Off-Grid Inverters

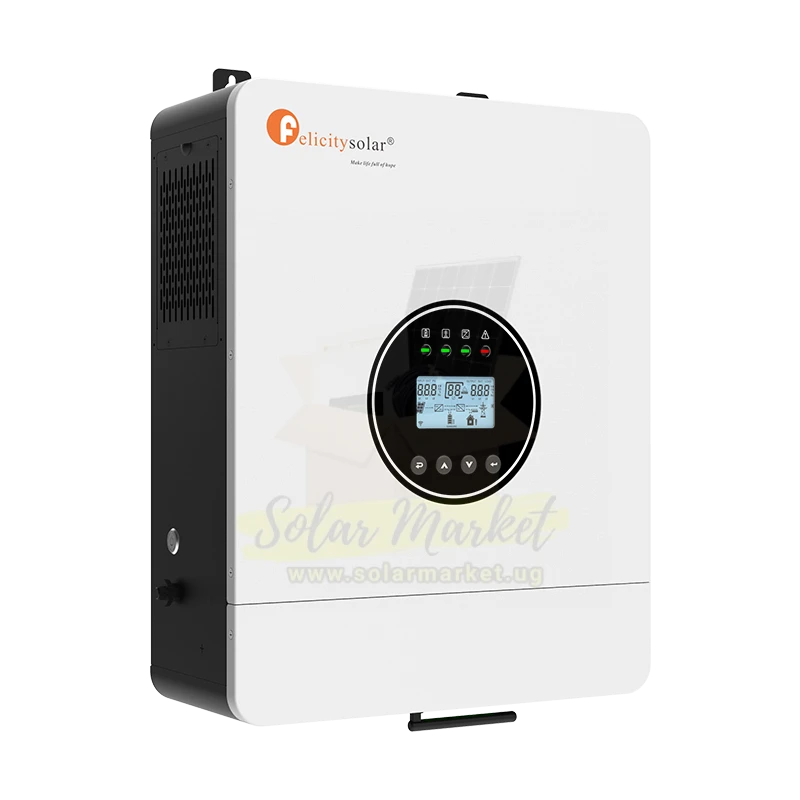

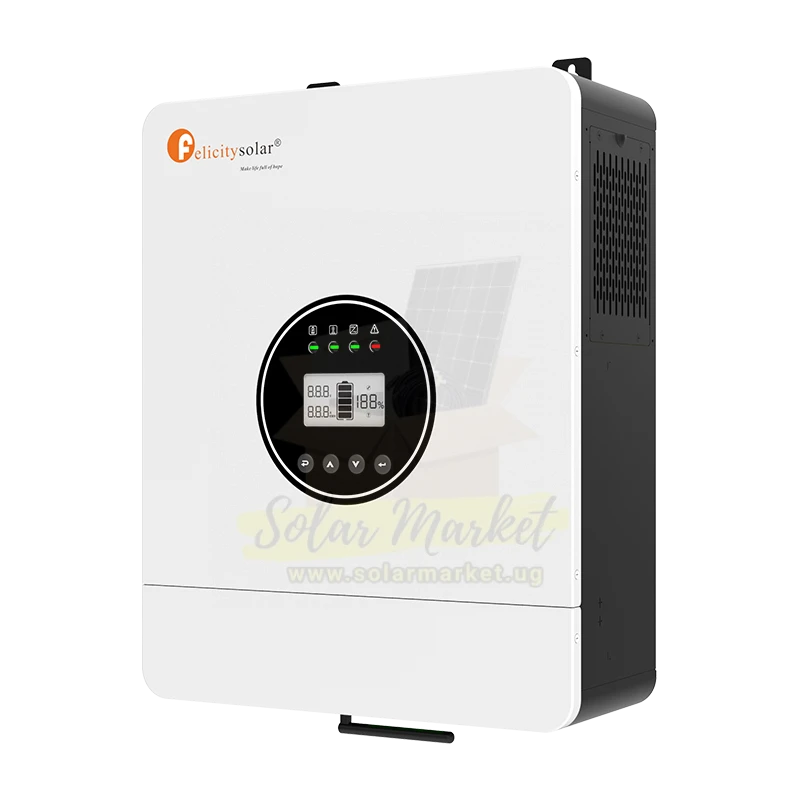

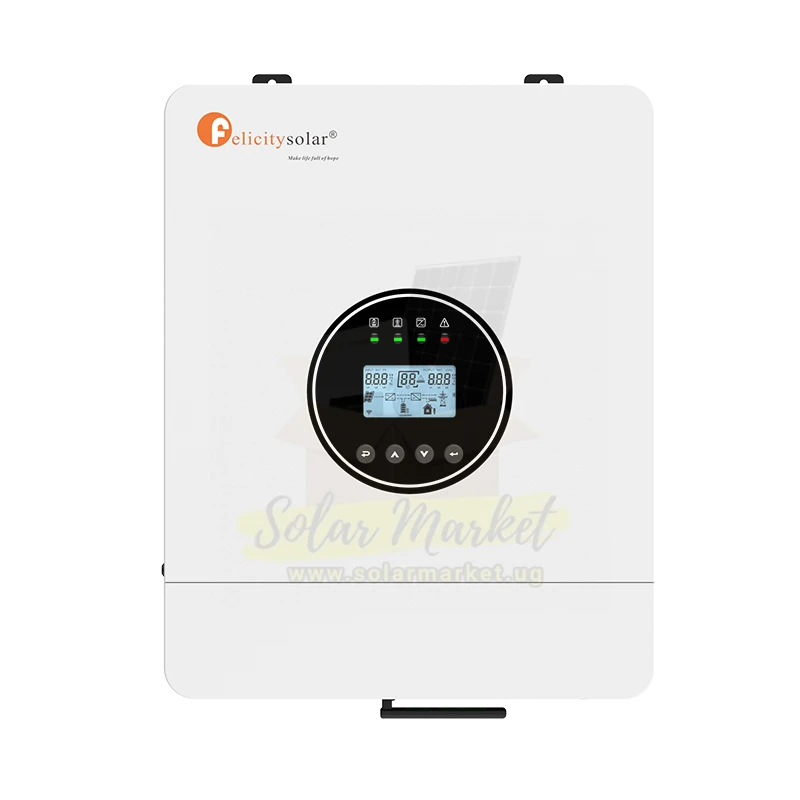

Felicity IVEM6048-II 6kVA 6000W 48V Off-Grid Solar Inverter for Home and Business Backup, 500V PV, 7.5kW PV, 120A Charge, Parallel up to 12

UGX1,656,720 VAT incl.
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX49,702Cash on DeliveryDelivery in 7 days1-yr warranty
Christmas on SolarMarket Power for the holidays A gift that keeps the lights on. Pay safely through SolarMarket. Black Friday → Solar for every Christmas plan –Days–Hours–mins
Sold by
Masrcorp Solar Uganda ✓
Kampala · Delivery in 7 days · 410 In stock
UGX1,656,720
Ways to payAll options
Cash on DeliveryOrder now, pay Masrcorp Solar Uganda in cash
Pay NowBank Transfer · Cash on Delivery
Warranty and returns
Warranty
1 year · this product
Returns
7 Days · unused and not installed.
Refund
Replacement only
The warranty is this product's own (1 year). Returns and refunds follow Masrcorp Solar Uganda's signed policy. If the shop doesn't reply to a claim in 48 hours, SolarMarket steps in.
Complete your systemPick one of each. They go in your cart with this product.
Matched to 48 V
Solar PanelsUGX429,000
BatteryUGX3,334,760
Cables, mounting and protectionUGX41,176
With this product
Technicians who install this
Swipe/scroll to see more →
Key specs
Brand Felicity Model IVEM6048-II
Rated Power 6000 VA Max PV Input Power 7500 W
Max Charging Current 120 A MPPT Voltage Range 90V-450V
Nominal Output Voltage 230 Vac Nominal Output Frequency 50/60 Hz
Nominal Voltage 48 V Surge Power Load >200%, 200ms / Load >150%, 5.5s / Load >120%, 7.5s / Load >105%, 10.5s
Product Dimensions 420 x 335 x 142 mm Product Weight 12.5 KG
Communication Yes Waveform Pure sine wave
Efficiency 93% Operating Temperature -10 to 50 C
Warranty 2 years Built-in WiFi module and charger controller 100A max,Yes
Certification CE-EMC. IEC 62109-1/2. IEC 63027 Chemistry Lithium
Current Rating 100 A Input AC Voltage Range 90-280 Vac
Inverter Type Off-grid Max AC Input Voltage 280Vac
Max PV Input Current 27 A Max PV Voltage (DC) 500 V
Output Short Circuit Protection Yes Overcharge Protection 5s @ >150% load; 10s @ 105%~150% load
Parallel Operation Yes, up to 12 units Pass Through Without Battery Yes
Phase Single phase PV Start-up Voltage 95V
SKU SM-CAT-FEL-00572

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

Felicity IVEM6048-II is a 48V hybrid inverter for Uganda power conditions. It supports the published PV input limit and is suitable for Home backup power, Small business power, Off-grid solar where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

  • POWER RATING: 6kVA/6000W continuous output, suitable for running lights, fridges, TVs, and small office equipment during grid outages.
  • BATTERY VOLTAGE: 48V DC input, compatible with standard 48V lead-acid or lithium battery banks for energy storage.
  • MPPT CHARGE CONTROLLER: Built-in 100A maximum charge current with PV input range of 95-500V, allowing flexible solar panel configurations.
  • COMMUNICATION: Supports lithium battery communication protocols and includes WiFi/4G module connectivity for remote monitoring via mobile app.
  • FREQUENCY: 50/60Hz auto-sensing output, matching Uganda's grid frequency for seamless transition.
  • HIGH FREQUENCY DESIGN: Compact and lightweight compared to low-frequency inverters, making installation easier in space-constrained environments.

What's Included

  • Felicity IVEM6048-II Hybrid Inverter unit, user manual, mounting brackets, communication cable for lithium battery (if applicable). WiFi/4G module sold separately.

Applications

  • Home backup power during load shedding
  • Small business power backup for computers and lighting
  • Off-grid solar systems with battery storage
  • Grid-tied solar systems with battery backup
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What are the key specs of Felicity IVEM6048-II in Uganda?
Felicity IVEM6048-II is a specified hybrid inverter in Uganda. Key specs include battery voltage range 48V, monitoring WiFi Monitoring.
What PV voltage limits should technicians use for Felicity IVEM6048-II?
For Felicity IVEM6048-II, use MPPT/operating voltage range the listed range, max PV input voltage the listed max PV voltage, and max PV input power the listed PV input power when designing strings.
How much solar PV can be connected to Felicity IVEM6048-II?
Felicity IVEM6048-II allows up to the listed limit PV input power. Use nominal battery voltage 48V for string sizing checks.
What battery and charge current settings apply to Felicity IVEM6048-II?
Felicity IVEM6048-II is built for 48V battery systems. The battery voltage range is 48V, with maximum charging current the listed charging current.
What AC output should buyers and installers expect from Felicity IVEM6048-II?
Felicity IVEM6048-II has a rated AC output of the listed AC output. It operates with grid frequency the listed grid frequency and AC voltage range the listed AC voltage. If needed, use the listed input range for compatibility checks.
What should buyers compare before ordering Felicity IVEM6048-II in Uganda?
Compare verified seller pricing, warranty terms, authenticity, and installer support for Felicity IVEM6048-II. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.
