Cworth · Off-Grid Inverters

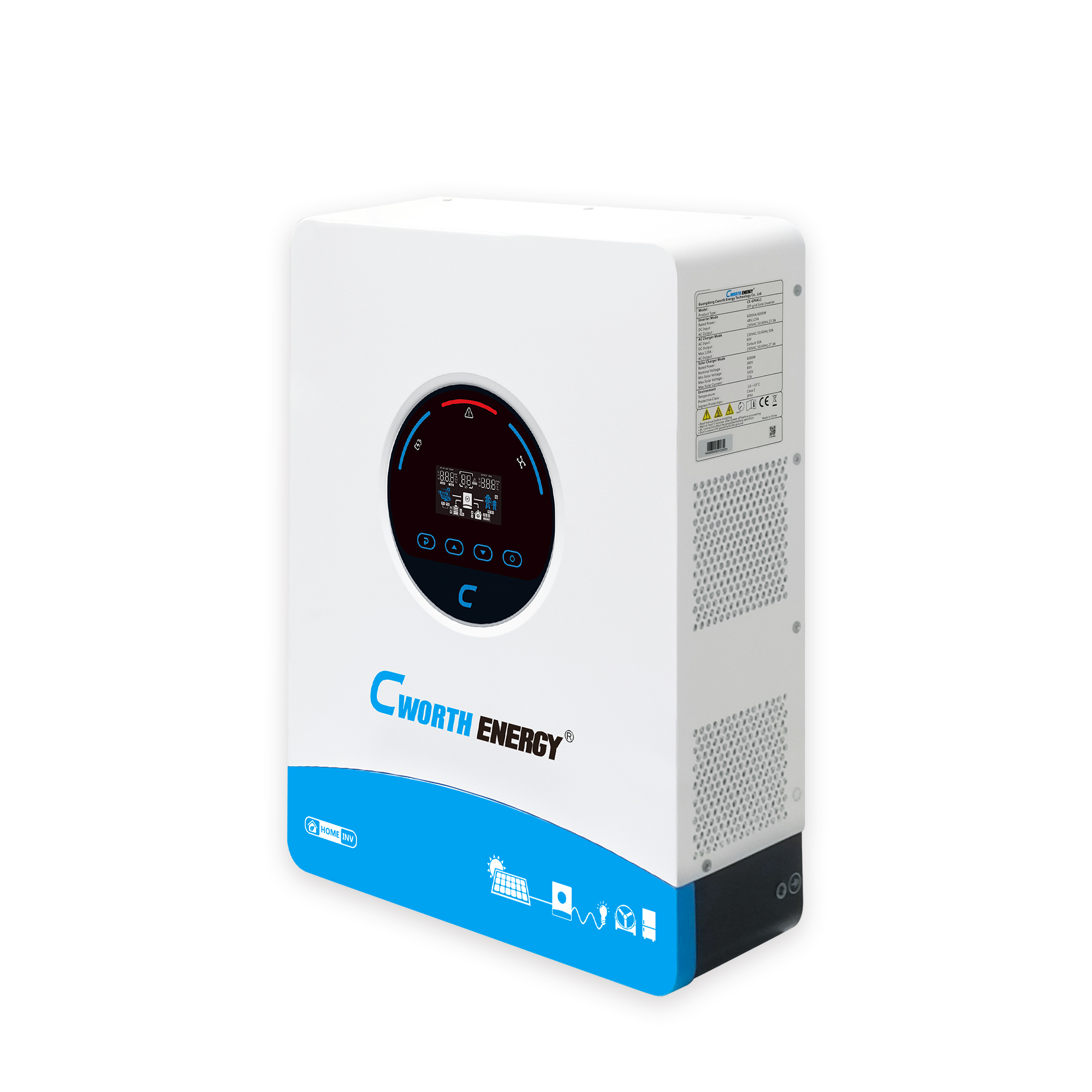

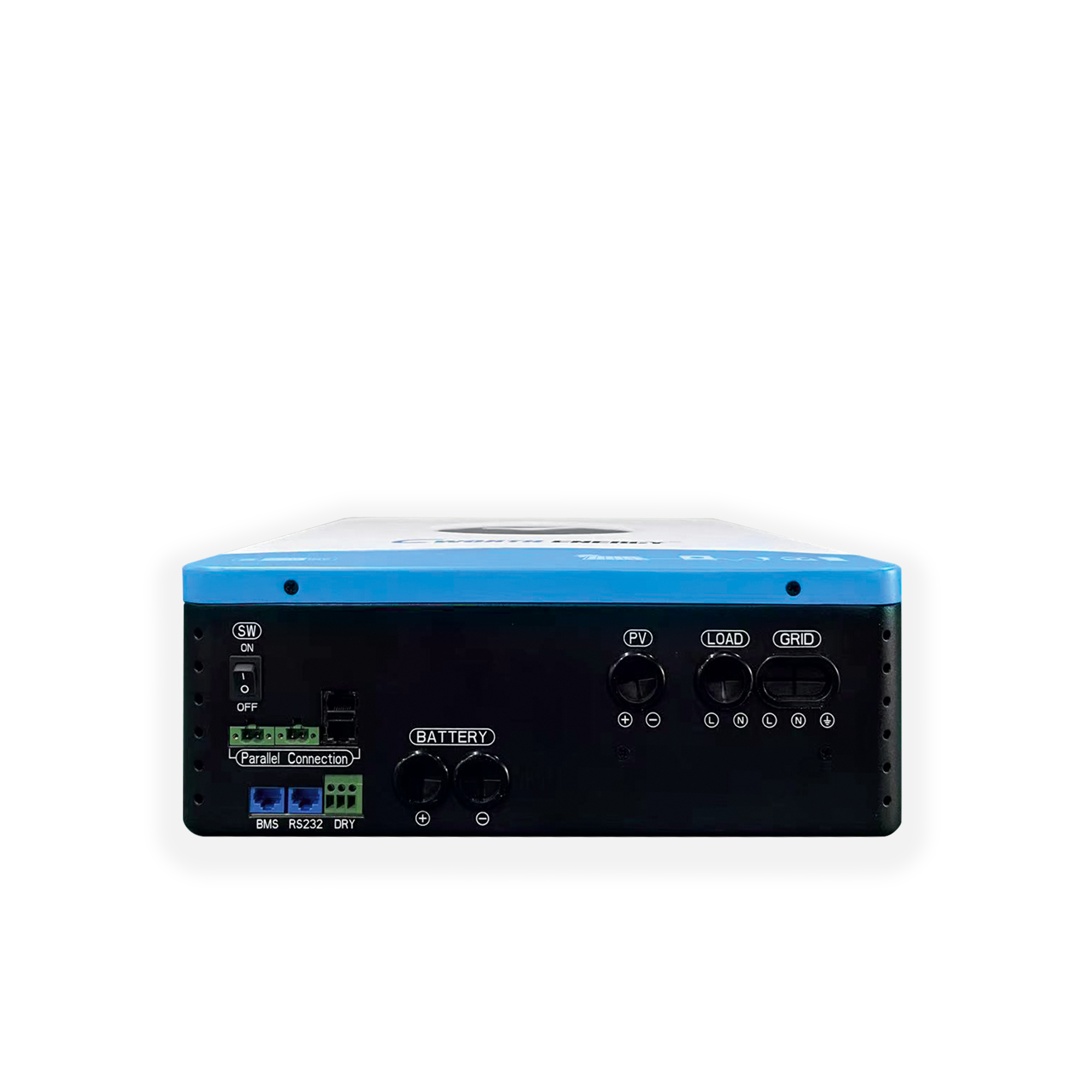

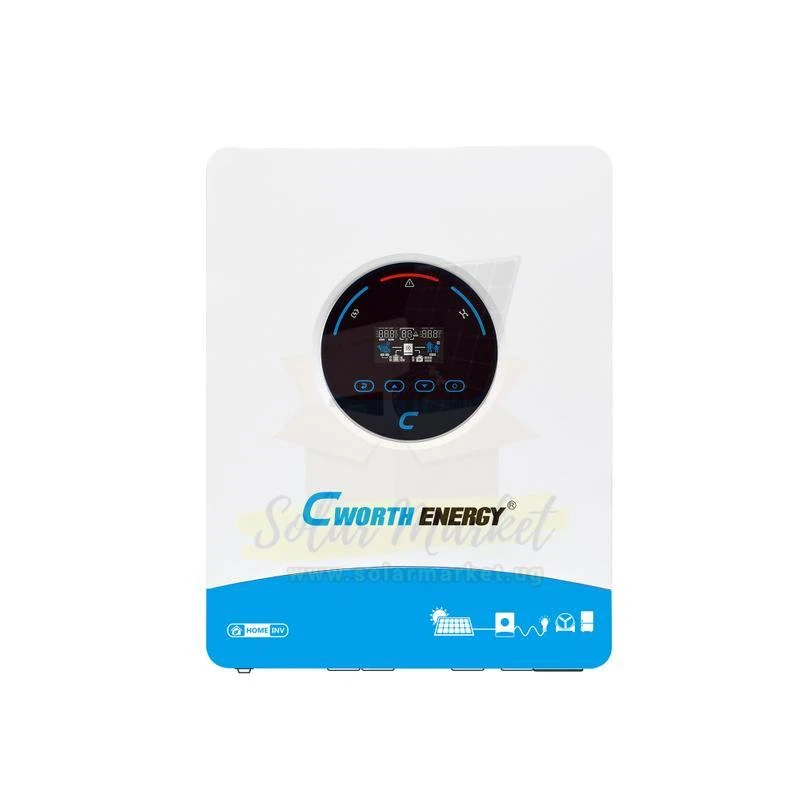

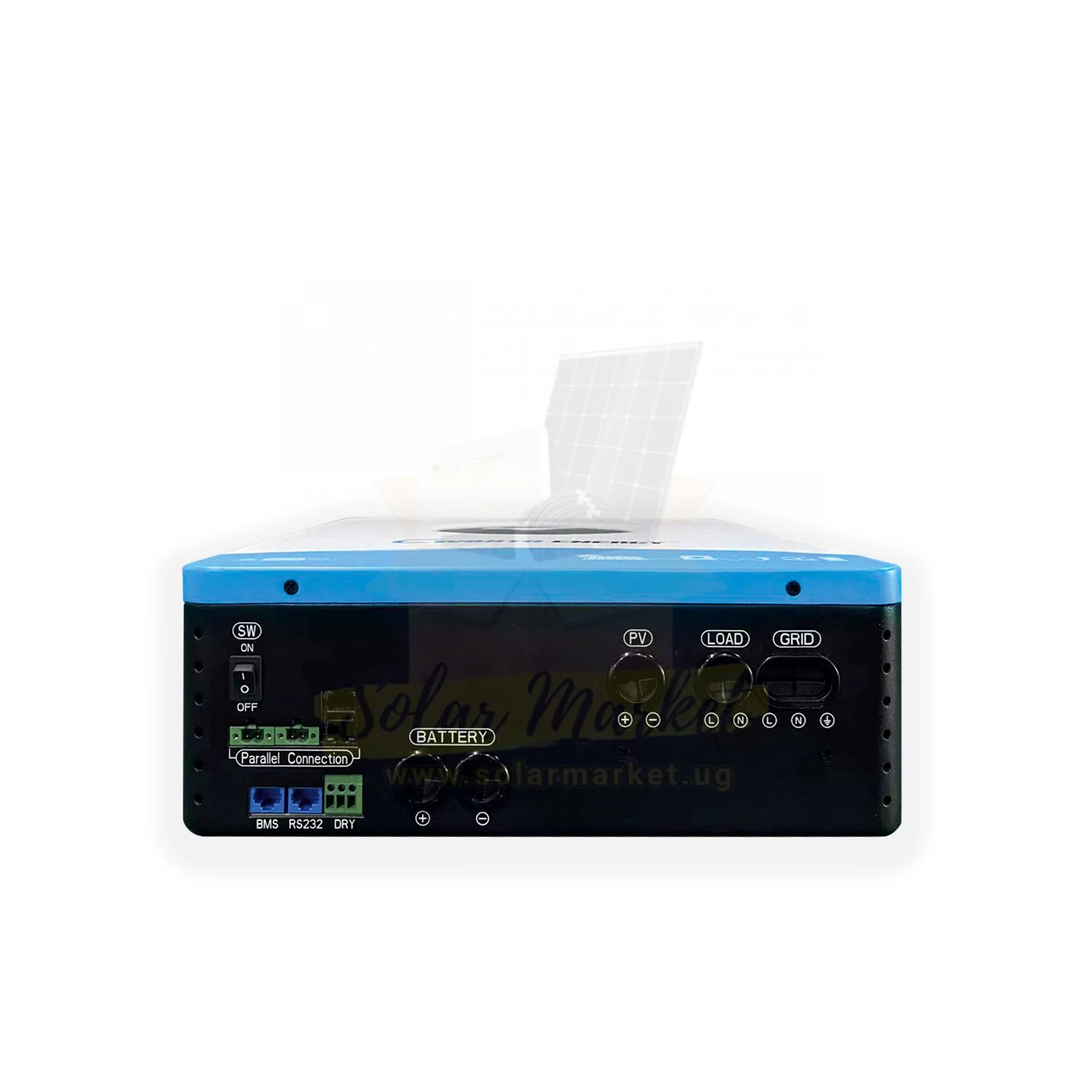

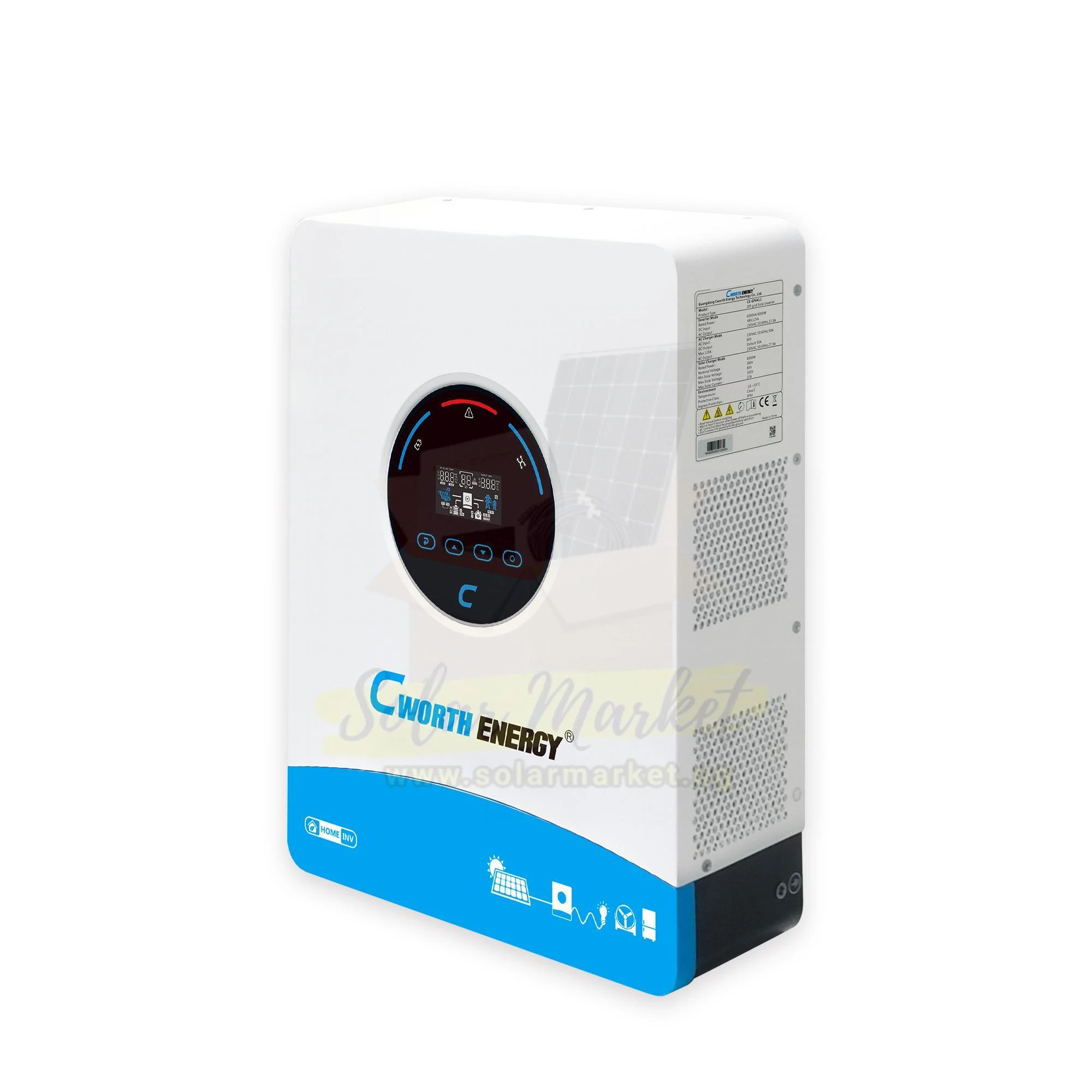

Cworth CE-H4K 4kW 24V Off-Grid Solar Inverter for Home and Small Business Backup, 120A MPPT, 4kW PV, 500V, Pure Sine Wave

UGX2,102,760
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX60,000
Christmas on SolarMarket Power for the holidays A gift that keeps the lights on. Pay safely through SolarMarket. Black Friday → Solar for every Christmas plan –Days–Hours–mins
Sold by
Cworth Energy ✓
100 In stock
UGX2,102,760
Ways to payAll options
Pay NowBank Transfer
Complete your systemPick one of each. They go in your cart with this product.
Matched to 24 V
Solar PanelsUGX429,000
BatteryUGX4,664,000
Cables, mounting and protectionUGX554,040
With this product
Technicians who install this
Swipe/scroll to see more →
Key specs
Brand Cworth Model CE-H4K
Rated Power 4000 W Max PV Input Power 4000 W
Max Charging Current 10A-Max. Grid Charge Curent (Adjustable unit is 1A) MPPT Voltage Range 85V-450V
Nominal Output Voltage 230 Vac Nominal Output Frequency 50/60 Hz
Nominal Voltage 85 V Product Dimensions 347 x 445 x 120 mm (D x W x H as printed)
Product Weight 9.2 KG Waveform Pure sine wave
Efficiency 93 % Operating Temperature -10 to 55 C
AC Output Rated Current 18.2A Battery Type AGM, Flooded, Lithium, user-defined
Chemistry Lithium Current Rating 18.2 A
High DC Input Alarm & Fault 31V+0.2V High Line Voltage Disconnect 280Vact+3V
Input AC Voltage Range 90-280 Vac (170-280 Vac for computers) Inverter Type Off-grid
Low DC Input Shut-down Recovery 29V+40.2V Low voltage load disconnect 170Vac+3V (For Computers)
Max PV Input Current 15 A Max PV Voltage (DC) 500 V
Max. AC Input/Output Apparent Power (VA) AOOOW Max. PV short circuit current 170Vac+3V (For Computers)
Max. Shorted Current 18.2A/4000W Output Short Circuit Protection Yes
Overcharge Protection Yes Parallel Operation No
Pass Through Without Battery Yes Phase Single phase
Self Discharge Adjustable, up to 30V/60V SKU SM-CAT-GEN-00929
Storage Temperature -15°C~60°C Transfer Time 10 ms typical (UPS), 20 ms typical (appliances)

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

Cworth CE-H4K is a 4kW 24V hybrid inverter for Uganda power conditions. It supports the published PV input limit and is suitable for Home backup power, Small business power, Off-grid solar where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

  • RATED OUTPUT POWER: 4000W continuous output at 230VAC with pure sine wave waveform, suitable for sensitive electronics and appliances.
  • SOLAR CHARGING: Integrated 120A MPPT solar charger with a PV voltage range of 85V-450V and maximum input power of 4000W, enabling efficient solar harvesting.
  • BATTERY COMPATIBILITY: Supports AGM, Flooded, and Lithium battery types with adjustable charge voltage up to 30V/60V and a maximum charging current of 100A from the grid.
  • PARALLEL OPERATION: Expandable to 12 units in parallel for increased power capacity, with a transfer time of 10ms typical in UPS mode.
  • PASS-THROUGH FUNCTION: Operates without a battery connected, allowing direct pass-through of utility or generator power to loads.
  • PROTECTION FEATURES: Includes overcharge protection, output short circuit protection, and high DC input alarm and fault at 31V+0.2V.

What's Included

  • 1x Cworth CE-H4K Hybrid Inverter
  • User manual
  • Warranty card (terms vary by seller)

Applications

  • Home backup power during grid outages
  • Small business power backup for computers and lighting
  • Off-grid solar systems with 24V battery banks
  • UPS replacement for sensitive electronic equipment
  • Scalable multi-unit installations for larger loads
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What are the key specs of Cworth CE-H4K in Uganda?
Cworth CE-H4K is a 4kW hybrid inverter in Uganda. Key specs include battery voltage range 24V, max PV input voltage SOOV, rated AC output 4kW.
What PV voltage limits should technicians use for Cworth CE-H4K?
For Cworth CE-H4K, use MPPT/operating voltage range 85V-450V, max PV input voltage SOOV, and max PV input power the listed PV input power when designing strings.
How much solar PV can be connected to Cworth CE-H4K?
Cworth CE-H4K allows up to the listed limit PV input power. Use MPPT range 85V-450V, max PV input voltage SOOV for string sizing checks.
What battery and charge current settings apply to Cworth CE-H4K?
Cworth CE-H4K is built for 24V battery systems. The battery voltage range is 24V, with maximum charging current 100A.
What AC output should buyers and installers expect from Cworth CE-H4K?
Cworth CE-H4K has a rated AC output of 4kW. It operates with grid frequency 50/60Hz (Auto detection) and AC voltage range 230Vact5%. If needed, use the listed input range for compatibility checks.
What should buyers compare before ordering Cworth CE-H4K in Uganda?
Compare verified seller pricing, warranty terms, authenticity, and installer support for Cworth CE-H4K. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.
