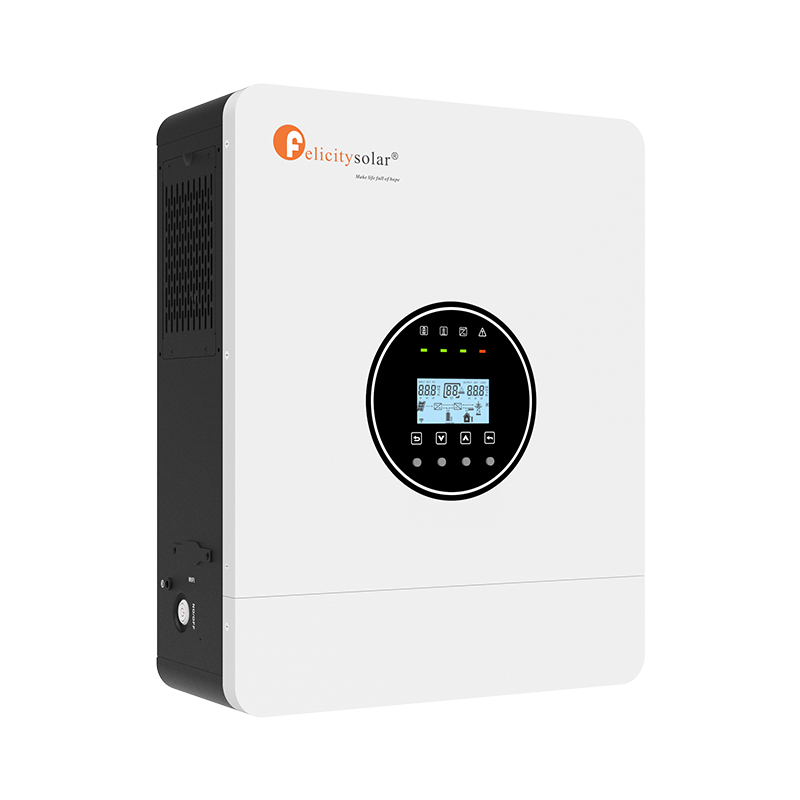

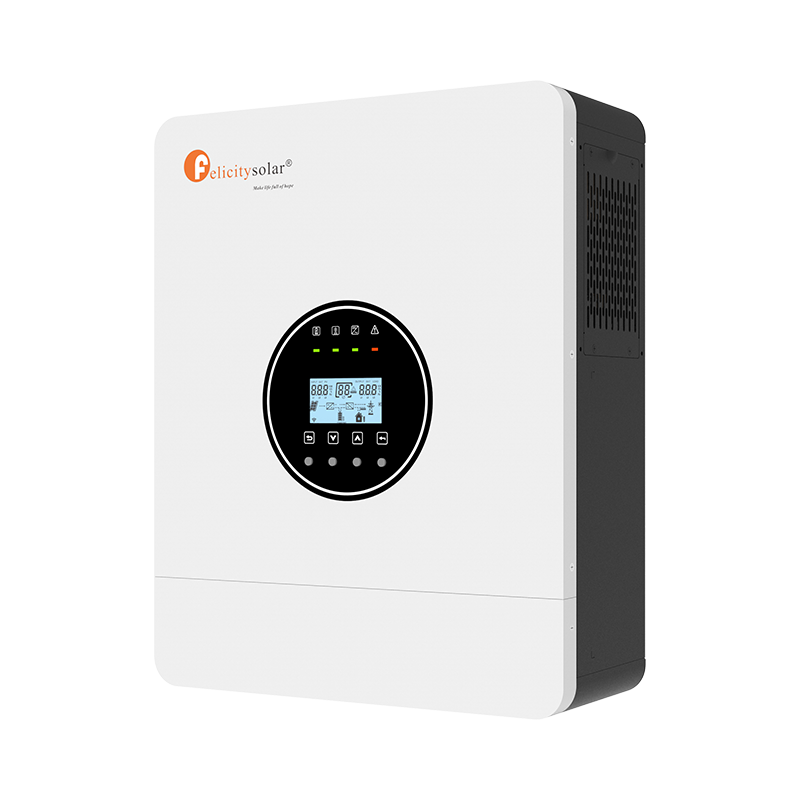

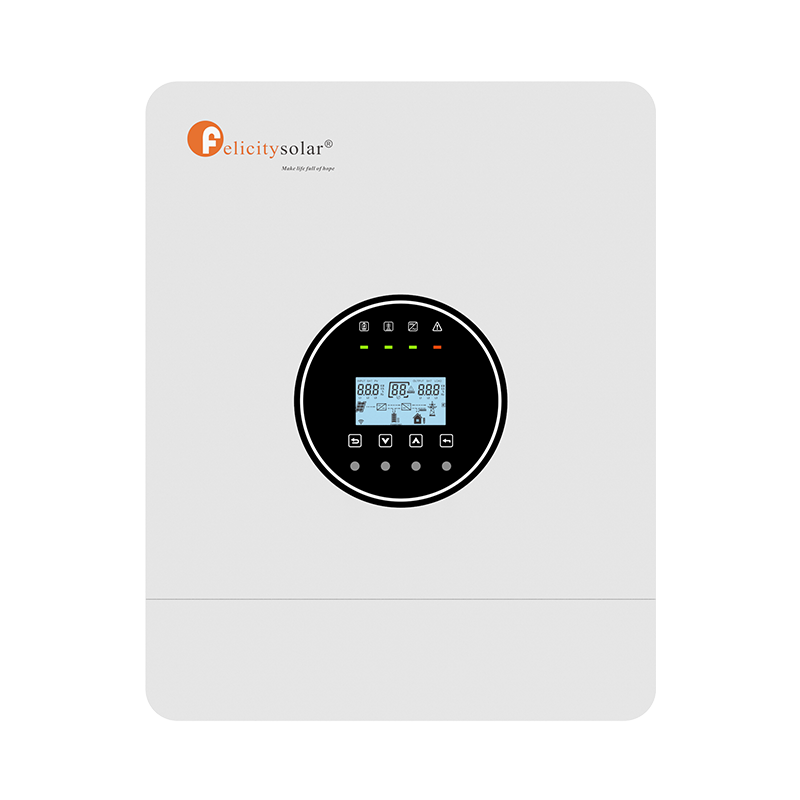

Felicity IVEM6048 Hybrid Inverter 6kVA 48V, 12 Parallel, BMS Communication, for Residential Solar, Small Commercial Solar, Off-grid and Hybrid

About this item

Product spotlights

Highlights: The Felicity IVEM6048 is a 6kVA hybrid inverter for residential and small commercial solar systems. It provides reliable power for off-grid and hybrid applications, ensuring energy independence. It operates on a 48V battery system and is compatible with standard solar arrays.

UGX1,534,000 /PC
7 Days

10 available

Minimum order qty 1

Login required to request quotations from suppliers for this product

Estimate Shipping Time 7 Days

Financing options

Product Information
Technical specifications
Brand Felicity Model IVEM6048
Rated Power 6000VA Max Charging Current 10-120A
MPPT Voltage Range 95Vdc~430Vdc Nominal Output Voltage 220V, 230V, 240V
Nominal Voltage 48 V Product Dimensions 420 x 335 x 142mm
Product Weight 11.5 KG Efficiency 93%
Warranty 2 AC Output Rated Current 40A
Cut-off Voltage 42.0V Float Charge Voltage 54.0V
Input AC Voltage Range 90 V Max PV Input Current 27A
Max PV Voltage (DC) 500V Parallel Capability Yes, up to 12 units
Parallel Operation up to 12 units SKU SM-CAT-FEL-00564

Notice a wrong or outdated datasheet? Help us fix it.

Freelancers
Verified
Verified Solar Installers for this Product
View All
Swipe/scroll to see more →
Description
Specs & details

Overview

The Felicity IVEM6048 is a 6kVA hybrid inverter for 48V systems with parallel support for up to 12 units. It is designed for residential solar, small commercial solar, off-grid and hybrid use where stable power, battery support and scalable system growth are required.

About this item

  • HYBRID OPERATION - Supports both solar and grid input for flexible energy management.
  • 6KVA / 6000W OUTPUT - Suitable for residential and small commercial backup loads.
  • 48V BATTERY SYSTEM - Works with standard 48V battery banks.
  • UP TO 12 PARALLEL UNITS - Supports system expansion when more output is needed.
  • SELECTABLE OUTPUT VOLTAGE - Supports 220V, 230V and 240V output settings for appliance compatibility.
  • BMS COMMUNICATION PORT - Supports battery management communication for compatible setups.

Product FAQs
It is rated at 6kVA / 6000W.
It uses a 48V battery system.
Yes. The specs show support for up to 12 parallel units.
The description shows selectable 220V, 230V and 240V output settings.
Yes. The description includes a BMS communication port.
