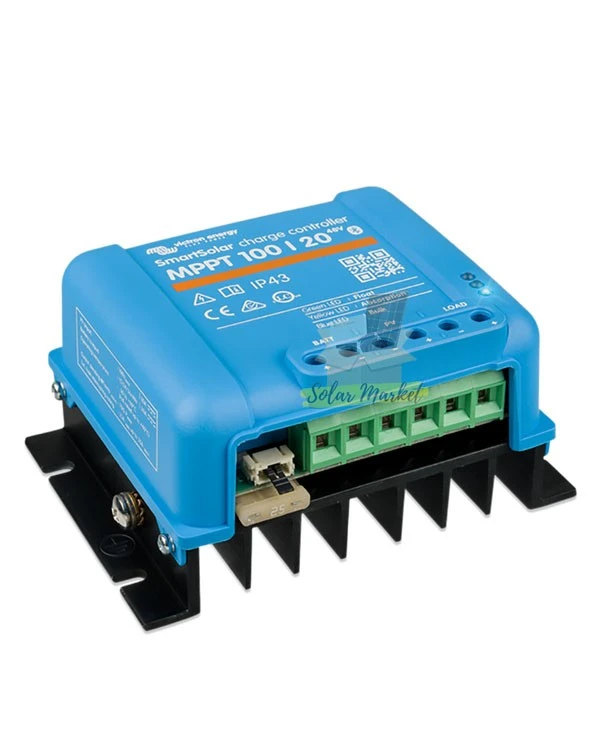

Victron MPPT 100/20-48V MPPT Charge Controller 48V for Residential solar, Small commercial solar, Off-grid and hybrid

Name: Victron MPPT 100/20-48V 48V MPPT Charge Controller | Best Price
Brand: victron
SKU: VICTRONS-293-0

Brand victron

Ask about this product

0 /5.0 (0 reviews)

SKU VICTRONS-293-0

Pricing

UGX665,500 /Pc

9 available

Minimum order qty 1

QTY

Receive up to 4 quotations from different suppliers of this product

Estimate Shipping Time 1 Days

Inhouse product

Message Seller

Brand victron

Products from this brand

Product spotlights

Highlights: The Victron MPPT 100/20-48V is a 20A MPPT charge controller designed for low voltage (LV) solar systems, supporting both single and three phase configurations. It offers adaptive multi-stage charging for 12V, 24V, and 48V batteries, making it suitable for diverse off-grid and hybrid applications in Uganda.

Brand	Victron	Model	MPPT 100:20-48V
Max Charging Current	20	Nominal Voltage	48
Product Dimensions	100 x 131 x 60mm	Product Weight	0,65kg
Communication	VE.Direct	Efficiency	98
Absorption Voltage	14,4V / 28,8V / 57,6V (adj.)	Automatic load disconnect	Yes
Charging Algorithm	multi-stage adaptive	Float Charge Voltage	13,8V / 27,6V / 55,2V (adj.)
Humidity	95 %, non-condensing	Low voltage load disconnect	11,1V / 22,2V / 44,4V or 11,8V / 23,6V / 47,2V or Battery Life algorithm
Max PV Short Circuit Current (per tracker)	20	Max PV Voltage (DC)	100
Max. continuous load current	20A / 20A / 1A	Power terminals	6mm² / AWG10
Protection	Output short circuit / Over temperature	Protection Category (IP)	IP43 (electronic components), IP22 (connection area)
Safety	EN/IEC 62109-1, UL 1741, CSA C22.2	Self-consumption	26 / 20 / 19
SKU	SM-PWM-VIC-00244	Temperature Compensation Range	-16 mV / °C resp. -32 mV / °C

Notice a wrong or outdated datasheet? Help us fix it.

Compare With Similar capacity PWM Charge Controllers

Cash on Delivery Available
Free Shipping

0.0

Average Rating

Verified Reviews

Product Questions

Units In Stock

Freelancers

Verified

Verified Solar Installers for this Product

View All

No freelancers found for this skill.

Description

Specs & details

Overview

The Victron MPPT 100/20-48V MPPT Charge Controller is engineered for reliable solar energy management in Uganda’s residential, commercial, and institutional settings. Supporting low voltage (LV) systems with both single and three phase compatibility, this controller automatically selects 12V, 24V, or 48V battery banks and delivers up to 20A charge current. Its advanced multi-stage adaptive charging algorithm ensures optimal battery health and system efficiency. The unit features robust protection against short circuits and over-temperature, and is equipped with a VE.Direct communication port for system monitoring. Designed for demanding environments, it operates efficiently across a wide temperature and humidity range, and complies with international safety standards. Multiple vendors offer this model on SolarMarket Uganda, enabling easy comparison and selection from verified sellers.

About this item

MULTI-VOLTAGE SUPPORT: Automatically detects and manages 12V, 24V, or 48V battery banks for flexible system integration.
20A CHARGE CURRENT: Delivers up to 20 amps for efficient charging in small to medium solar installations.
MPPT TECHNOLOGY: Maximizes energy harvest from solar panels with up to 98% peak efficiency.
ADAPTIVE CHARGING: Multi-stage charging algorithm optimizes battery performance and longevity.
ROBUST PROTECTION: Includes output short circuit and over-temperature safeguards for reliable operation.
DATA COMMUNICATION: VE.Direct port enables remote monitoring and integration with Victron system tools.
