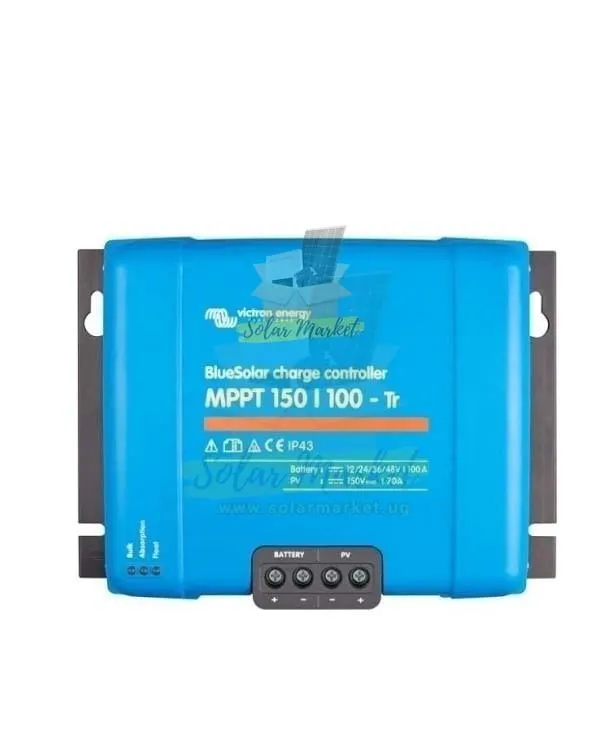

Victron 150/100 VE.Can MPPT Charge Controller 48V HV for Residential solar, Commercial solar, Institutional and
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
victron · MPPT Charge Controllers

Victron 150/100 VE.Can MPPT Charge Controller 48V HV for Residential solar, Commercial solar, Institutional and

UGX2,492,000
☆☆☆☆☆ No reviews yet ·Questions (0)
Delivery in 7 days1-yr warranty
Sold by
Masrcorp Solar Uganda ✓
Delivery in 7 days · In stock
UGX2,492,000
Want another price?Only one shop lists this right now. Send one request and other shops reply with their prices.
Similar products from other shops
Ajay Solar 60A MPPT Solar Charge Controller Ajay Solar 60A MPPT Solar Charge Controller UGX968,000 AJAY SOLAR 30A Ajay MPPT Charge Controller 30A Ajay MPPT Charge Controller UGX363,000 AJAY SOLAR
Ways to payAll options
Pay NowBank Transfer
Warranty and returns
Warranty
1 year · this product
Returns
7 Days · unused and not installed.
Refund
Replacement only
The warranty is this product's own (1 year). Returns and refunds follow Masrcorp Solar Uganda's signed policy. If the shop doesn't reply to a claim in 48 hours, SolarMarket steps in.
Complete your systemMatched to 48 V
Solar Panels
UGX429,000
Battery
UGX3,400,000
With this product:
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Brand Victron Model 150/100 VE.Can MPPT Charge Controller 48V HV
Rated Power 5800 W Max Charging Current 100 A
Max PV Open Circuit Voltage 150 V Nominal Voltage 48 V
Product Dimensions 246 x 295 x 103 mm Product Weight 4,5 kg
Communication VE.Can, VE.Direct and Bluetooth Efficiency 98 %
Operating Temperature -30 to +60 °C (full rated output up to 40 °C) Battery terminals 35mm² / AWG2
Charge voltage 'equalization' Default setting: 16,2 V / 32,4 V / 48,6 V / 64,8 V (adjustable) Charging Algorithm multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm
Current Rating 100 A Humidity 95 %, non-condensing
Ingress Protection PD3 Max. PV short circuit current 70 A (max 30 A per MC4 conn.)
Maximum output current 30 A (the MC4 connectors are parallel connected to one MPPT tracker) Nominal PV power, 12 V 1450 W
Permissible Altitude 5000m (full rated output up to 2000m) Programmable Relay DPST AC rating: 240 VAC / 4 A DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC
Protection IP43 (electronic components), IP22 (connection area) PV terminals Three pairs of MC4 connectors (MC4 models)
Remote On/Off Yes (2 pole connector) Safety EN/IEC 62109-1, UL 1741, CSA C22.2
Self Discharge consumption,Less than 35 mA @ 12 V / 20 mA @ 48 V Self-consumption Less than 35 mA @ 12 V / 20 mA @ 48 V
SKU SM-MPP-VIC-00251 Temperature Compensation Range -16 mV / -32 mV / -64 mV / °C

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

HV configuration. The Victron 150/100 VE.Can MPPT Charge Controller is engineered for robust solar installations in Uganda, supporting 12V, 24V, 36V (manual), and 48V battery banks within the low voltage (LV) class. Its 100A charge current and 150V PV input rating enable flexible system design for both single-phase and multi-phase

About this item

  • SYSTEM TOPOLOGY: HV architecture for compliant solar system design.
  • MPPT TECHNOLOGY: Tracks maximum power point for optimal solar energy harvest.
  • MULTI-VOLTAGE SUPPORT: Compatible with 12V, 24V, 36V (manual), and 48V LV battery systems.
  • HIGH CHARGE CURRENT: Delivers up to 100A for large-scale solar arrays.
  • ADVANCED COMMUNICATION: VE.Can, VE.Direct, and Bluetooth interfaces for system integration and monitoring.
  • PARALLEL OPERATION: Supports synchronized operation with up to 25 units via VE.Can.

Applications

  • Residential solar power systems
  • Commercial solar installations
  • Institutional and educational facilities
  • Off-grid and hybrid solar setups
  • Telecom and remote site power
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What battery voltages does the Victron 150/100 VE.Can support?
It supports 12V, 24V, and 48V battery banks with automatic selection, and 36V with manual configuration.
Is this charge controller suitable for single-phase and three-phase systems?
Yes, it can be integrated into both single-phase and multi-phase solar PV systems.
How many units can be operated in parallel?
Up to 25 units can be synchronized in parallel using VE.Can, or up to 10 units via Bluetooth.
What communication options are available?
The controller offers VE.Can, VE.Direct, and Bluetooth for data communication and remote monitoring.
Does the controller provide protection against electrical faults?
Yes, it includes protection for PV reverse polarity, output short circuit, and over temperature.
What is the maximum PV input voltage?
The absolute maximum PV open circuit voltage is 150V in the coldest conditions.
Can the charge algorithm be customized?
Yes, users can select from eight preprogrammed algorithms or define a custom charging profile.
