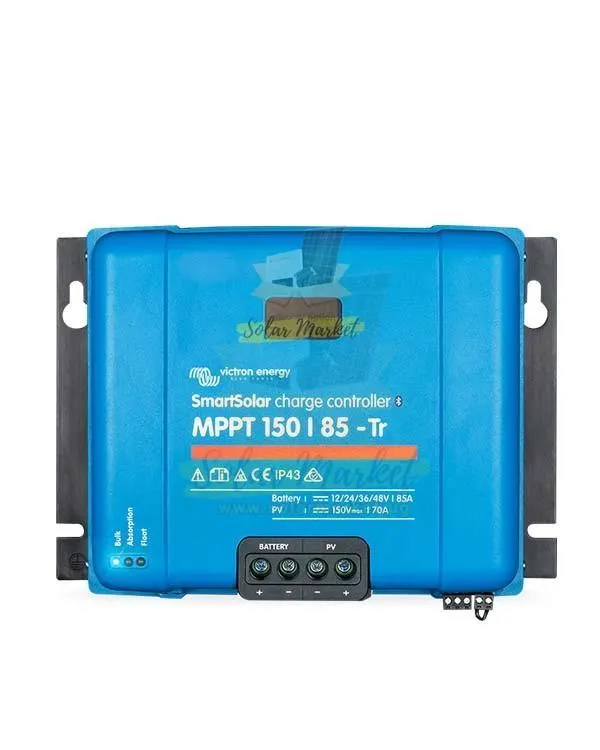

Victron SmartSolar MPPT 150/85 VE.Can 85A 12/24/48V Solar Charge Controller for Off-Grid Systems, 150V PV, 4900W at 48V, Bluetooth
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
victron · MPPT Charge Controllers

Victron SmartSolar MPPT 150/85 VE.Can 85A 12/24/48V Solar Charge Controller for Off-Grid Systems, 150V PV, 4900W at 48V, Bluetooth

UGX2,339,420
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX60,000Delivery in 7 days1-yr warranty
Christmas on SolarMarket Power for the holidays A gift that keeps the lights on. Pay safely through SolarMarket. Black Friday → Solar for every Christmas plan –Days–Hours–mins
Sold by
Masrcorp Solar Uganda ✓
Delivery in 7 days · In stock
UGX2,339,420
Want another price?Only one shop lists this right now. Send one request and other shops reply with their prices.
More from victronOther victron products on SolarMarket
See All victron →
Victron SmartSolar MPPT 250/70 70A Solar Charge Controller for Off-Grid Systems, 250V PV Input Victron SmartSolar MPPT 250/70 70A Solar Charge… UGX2,326,170 Masrcorp Solar UgandaView → Victron SmartSolar MPPT 150/100 VE.Can 100A 12/24/48V Solar Charge Controller for Off-Grid Systems, 150V PV, 5800W at 48V, Bluetooth Victron SmartSolar MPPT 150/100 VE.Can 100A… UGX2,641,520 Masrcorp Solar UgandaView → Victron SmartSolar MPPT 150/70 70A 12/24/48V Solar Charge Controller for Off-Grid Systems, 150V PV Input Victron SmartSolar MPPT 150/70 70A 12/24/48V… UGX2,791,404 Masrcorp Solar UgandaView → Victron SmartSolar MPPT 150/70 VE.Can 70A 12/24/48V Solar Charge Controller for Off-Grid Systems, 150V PV, 4000W at 48V, Bluetooth Victron SmartSolar MPPT 150/70 VE.Can 70A… UGX1,682,640 Masrcorp Solar UgandaView → Victron MPPT 150/60 60A Solar Charge Controller for Off-Grid Solar Systems, 150V PV Input Victron MPPT 150/60 60A Solar Charge Controller UGX1,401,840 Masrcorp Solar UgandaView → Victron MPPT 150/45 45A Solar Charge Controller for Off-Grid Solar Systems, 150V PV Input Victron MPPT 150/45 45A Solar Charge Controller UGX876,960 Masrcorp Solar UgandaView → Victron MPPT 100/50 50A 12/24V Solar Charge Controller for Off-Grid Solar Systems Victron MPPT 100/50 50A 12/24V Solar Charge… UGX771,120 Masrcorp Solar UgandaView → Victron MPPT 100/30 30A 12/24V Solar Charge Controller for Off-Grid Solar Systems Victron MPPT 100/30 30A 12/24V Solar Charge… UGX592,920 Masrcorp Solar UgandaView →
More choice from other shopsSimilar products near this price, sold by other shops on SolarMarket
See All MPPT Charge Controllers →
Ajay Solar 60A MPPT Solar Charge Controller Ajay Solar 60A MPPT Solar Charge Controller UGX950,400 AJAY SOLARView → 30A Ajay MPPT Charge Controller 30A Ajay MPPT Charge Controller UGX363,000 AJAY SOLARView → SRNE DM200 20A 12/24V MPPT Solar Street Light Controller with LED Driver, 100V PV, IP67 SRNE DM200 20A 12/24V MPPT Solar Street Light… UGX209,000 Renewable Uganda LimitedView →
Ways to payAll options
Pay NowBank Transfer
Warranty and returns
Warranty
1 year · this product
Returns
7 Days · unused and not installed.
Refund
Replacement only
The warranty is this product's own (1 year). Returns and refunds follow Masrcorp Solar Uganda's signed policy. If the shop doesn't reply to a claim in 48 hours, SolarMarket steps in.
Complete your systemPick one of each. They go in your cart with this product.
Matched to 12 V/24 V/48 V
Solar PanelsUGX429,000
BatteryUGX3,334,760
With this product
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Voltage Class
Low Voltage (LV)
Rated Charge Current
85A
Maximum PV Voltage
150V
Parallel Operation
Yes
Warranty
1 year
Brand Victron Model SmartSolar MPPT 150/85 VE.Can
Max PV Input Power 1200 W at 12 V, 2400 W at 24 V, 3600 W at 36 V, 4900 W at 48 V Max Charging Current 85 A
Nominal Voltage 12/24/48 V (36 V manual) Product Dimensions Tr models: 216 x 295 x 103 mm, MC4 models: 246 x 295 x 103 mm
Product Weight 4.5 KG Communication VE.Can, VE.Direct, Bluetooth
Efficiency 98 % Operating Temperature -30 to 60 C
Battery terminals 35mm² / AWG2 Charge voltage 'equalization' Default setting: 16,2 V / 32,4 V / 48,6 V / 64,8 V (adjustable)
Charging Algorithm multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm Controller Type MPPT
Humidity 95 %, non-condensing Ingress Protection IP43 (electronics), IP22 (connection area)
Max PV Voltage (DC) 150 V Max. PV short circuit current 70 A (max 30 A per MC4 conn.)
Maximum output current 30 A (the MC4 connectors are parallel connected to one MPPT tracker) Nominal PV power, 12 V 1200 W
Permissible Altitude 5000m (full rated output up to 2000m) Programmable Relay DPST AC rating: 240 VAC / 4 A DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC
Protection IP43 (electronic components), IP22 (connection area) PV terminals Three pairs of MC4 connectors (MC4 models)
Remote On/Off Yes (2 pole connector) Safety EN/IEC 62109-1, UL 1741, CSA C22.2
Self Discharge consumption,Less than 35 mA @ 12 V / 20 mA @ 48 V Self-consumption less than 35 mA at 12 V, 20 mA at 48 V
SKU SM-MPP-VIC-00250 Temperature Compensation Range -16 mV / -32 mV / -64 mV / °C

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

HV configuration. The Victron 150/85 VE.Can MPPT Charge Controller is engineered for reliable solar power management in Uganda’s diverse energy environments. Supporting low voltage (LV) battery banks with auto-selection for 12V, 24V, and 48V (manual for 36V), this controller is suitable for both single-phase and multi-phase

About this item

  • SYSTEM TOPOLOGY: HV architecture for compliant solar system design.
  • MULTI-VOLTAGE SUPPORT: Auto-selects 12V, 24V, or 48V battery banks; manual option for 36V systems.
  • HIGH CHARGE CURRENT: Delivers up to 85A rated charge current for large-scale solar arrays.
  • PARALLEL OPERATION: Supports synchronized operation of up to 25 units via VE.Can or 10 via Bluetooth.
  • ADAPTIVE CHARGING: Features multi-stage, user-configurable charging algorithms for optimal battery performance.
  • ROBUST PROTECTION: Safeguards against PV reverse polarity, output short circuit, and over-temperature conditions.

Applications

  • Residential solar power systems (single-phase and multi-phase)
  • Commercial and institutional solar installations
  • Off-grid and hybrid solar setups
  • Telecom and remote site power solutions
  • Battery storage integration projects
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What battery voltages does the Victron 150/85 VE.Can support?
It supports 12V, 24V, and 48V battery banks with automatic selection, and 36V with manual configuration.
Is this charge controller suitable for both single-phase and multi-phase systems?
Yes, it is designed for use in both single-phase and multi-phase solar installations.
Can multiple units be operated in parallel?
Yes, up to 25 units can be synchronized via VE.Can or up to 10 units via Bluetooth for larger systems.
What protection features are included?
The controller includes protection against PV reverse polarity, output short circuit, and over-temperature.
How is system data accessed and monitored?
Data can be accessed through VE.Can, VE.Direct, or Bluetooth interfaces, supporting integration with monitoring platforms.
What is the maximum PV input voltage?
The absolute maximum PV open circuit voltage is 150V under coldest conditions, with 145V as the operational maximum.
Is the controller suitable for indoor use in unconditioned environments?
Yes, it is rated for indoor, unconditioned environments and can operate in high humidity and a wide temperature range.
