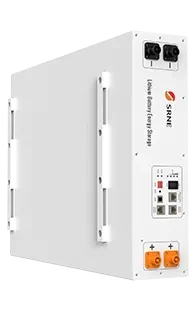

The SRNE EOC05B 5.12kWh 100Ah 48V LiFePO4 Lithium Battery is a high-performance energy storage solution designed for solar power systems, off-grid setups, and backup power applications. Built with advanced lithium iron phosphate (LFP) cells, it ensures long lifespan, efficient charging, and deep-cycle reliability.

With 6000+ cycle life, natural cooling, and parallel connection support up to 16 units, this battery is perfect for residential, commercial, and industrial energy storage needs.

Key Features and Benefits

High-Capacity 5.12kWh Energy Storage

• Provides 100Ah at 51.2V, delivering stable and reliable power for solar inverters, battery backup, and off-grid systems.

Long-Lasting 6000+ Cycle Life

• Designed for 20 years of use, with a cycle life of up to 6000 cycles at 80% Depth of Discharge (DOD).

Scalable Energy Storage

• Supports parallel connection of up to 16 units, expanding capacity to 81.92kWh for larger energy needs.

Fast and Efficient Charging

• Maximum charging current of 100A for rapid energy replenishment.
• Peak charging current of 110A, ensuring high-power availability when needed.

Safe and Reliable LiFePO4 Technology

• Integrated Battery Management System (BMS) protects against overcharging, over-discharging, and short circuits.
• Built with high-quality lithium iron phosphate cells, ensuring thermal stability and enhanced safety.

Smart Communication and Monitoring

• Compatible with CAN, RS485, and USB, allowing integration with solar inverters and remote monitoring.
• Supports real-time data tracking for optimized system performance.

Flexible Mounting Options

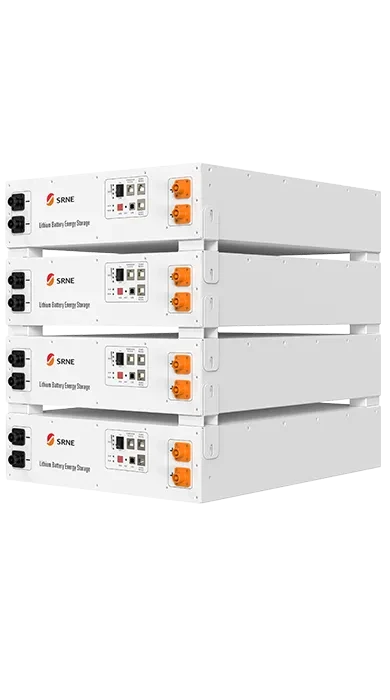

• Can be wall-mounted, floor-mounted, stacked, or rack-mounted, offering installation flexibility for different applications.

Low Maintenance and Natural Cooling

• Designed with natural cooling for silent operation and low internal resistance, reducing maintenance needs.

Ideal Applications

• Residential Solar Energy Storage
• Commercial and Industrial Backup Power
• Off-Grid Power Solutions
• Telecommunications and Remote Power Supply
• Hybrid Solar Systems with Grid Integration

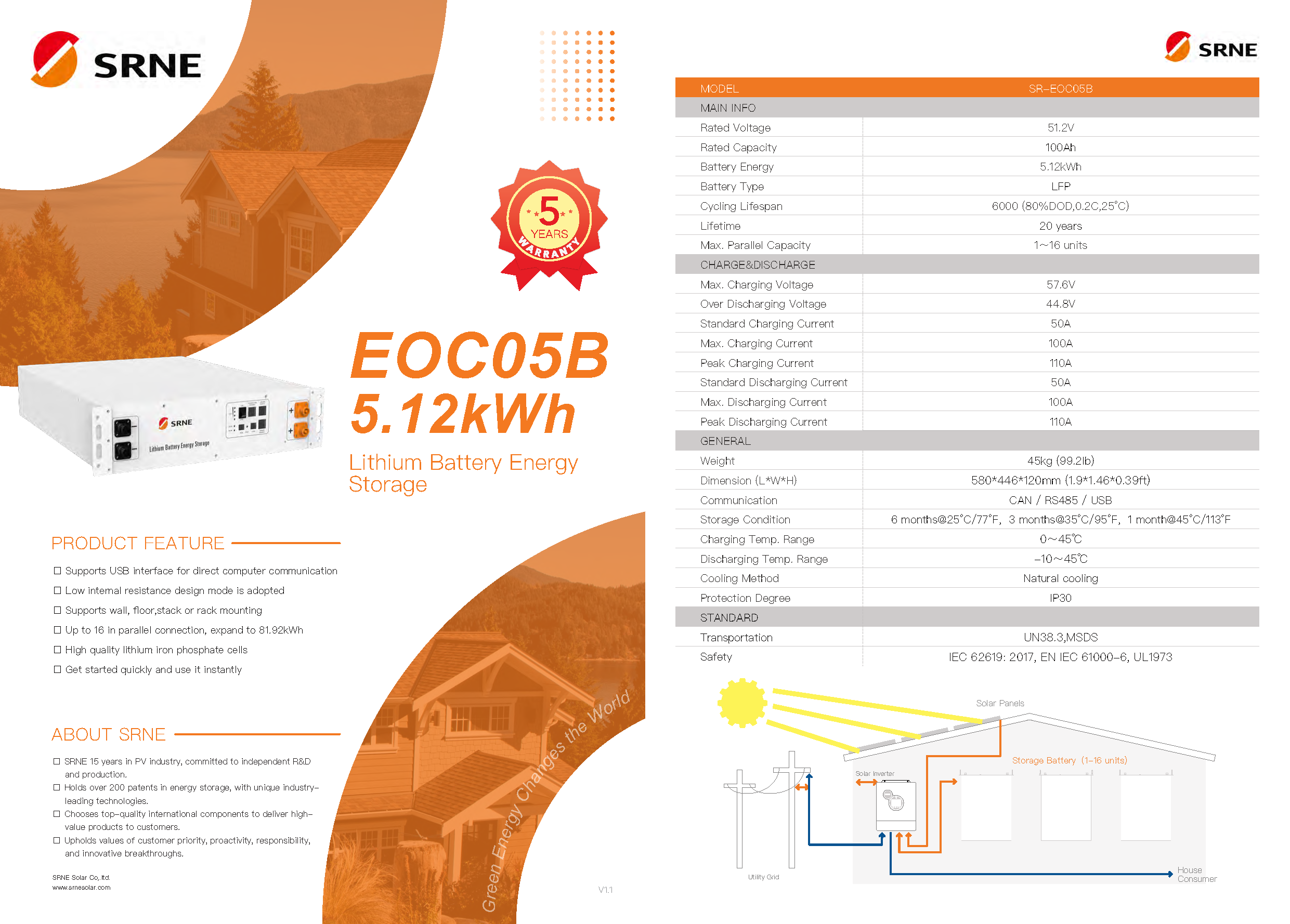

Technical Summary

• Model: EOC05B
• Battery Energy: 5.12kWh
• Rated Voltage: 51.2V
• Capacity: 100Ah
• Cycle Life: 6000 cycles (80% DOD, 0.2C, 25°C)
• Charging Current: Standard 50A / Max 100A / Peak 110A
• Discharge Current: Standard 50A / Max 100A / Peak 110A
• Parallel Connection: Up to 16 units (81.92kWh total)
• Weight: 45kg
• Dimensions: 580 × 446 × 120mm
• Communication: CAN / RS485 / USB
• Cooling: Natural cooling
• Protection Rating: IP30
• Warranty: 5 Years
