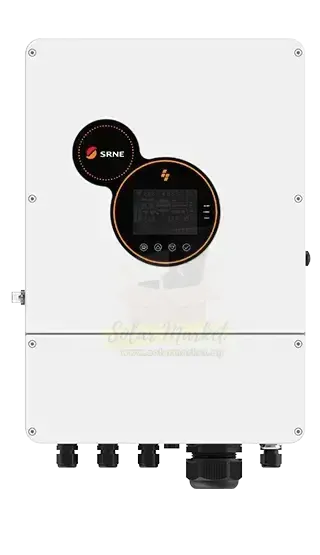

SRNE 12kW 24kVA Max Surge Hybrid Inverter for Home and Small Business Backup 48Vdc 230Vac Single-Phase Dual MPPT 125-425Vdc Parallel up to 6 Units IP20 Indoor (ASP48120S200-H)

Name: SRNE 12kW 24kVA Max Surge Hybrid Inverter for Home and Small Business Backup 48Vdc 230Vac Single-Phase Dual MPPT 125-425Vdc Parallel up to 6 Units IP20 Indoor (ASP48120S200-H)
Brand: SRNE
SKU: HYBRIDINVERTER-12000W-48V
Availability: InStock

SRNE

0 out of 5 | 0 Ratings | Q&A

About this item

Product spotlights

Highlights: SRNE ASP48120S200-H is a 12kW 48V hybrid inverter in Uganda. It supports up to 6.6kW PV input and is built for Home backup power, Small business, Off-grid solar where battery-backed continuity and stable AC output matter

UGX9,284,330

Variation

10 available

Minimum order qty 1

QTY

Order on WhatsApp

Selected Product Summery

SRNE 12kW 24kVA Max Surge Hybrid Inverter for Home and Small Business Backup 48Vdc 230Vac Single-Phase Dual MPPT 125-425... -

Compare With Similar capacity Hybrid Inverters

Sold by BLISON ENERGY

Message Seller

Brand SRNE

Products from this brand

Product Information

Technical specifications

Brand	SMA	Model	IP20
Rated Power	12000W	Max PV Input Power	6600 W
Max Charging Current	150Adc	MPPT Voltage Range	125-425Vdc/125-425Vdc
Max PV Open Circuit Voltage	500Vdc/500Vdc	Nominal Output Voltage	230Vac (Single-phase)
Nominal Output Frequency	50/60Hz	Nominal Voltage	48 V
Number of MPPT Trackers	2	Product Dimensions	620x445x130mm
Product Weight	27 KG	Communication	RS485/CAN/USB/Dry Contact
Waveform	Pure sine wave	Efficiency	99.9%
Warranty	2 years	AC Output Rated Current	50/60Hz
Battery Type	Li-ion / Lead-acid / User-defined	Built-in WiFi	No
Certification	IEC62109-1, IEC62109-2, EN61000-6-1, EN61000-6-3, RoHS	Chemistry	Lead-acid
Color Temperature	-10-55°C, >45°C Derate	Cooling Concept	Built-in fan
Cooling Method	Built-in fan	Current Rating	200
Discharging time	10ms (typical)	Energy	6HP
Ingress Protection	IP20 Indoor Only	Input AC Voltage Range	90-275Vac
Load Motor Capacity	6HP	Max PV Input Current	22A+22A
Max. AC Input/Output Apparent Power (VA)	24000VA	Max. Bypass Overload Current	63A
Max. Parallel Capacity	1～6 Units	Noise	<60dB
Parallel Capability	1～6 Units	Protection	Degree,IP20 Indoor Only
Rated AC Input/Output Active Power (W)	12000W	SKU	HYBRIDINVERTER-12000W-48V
Start Voltage	48	Storage Temperature	-10-55°C, >45°C Derate
Transfer Time	10ms (typical)	WIFI	No

Notice a wrong or outdated datasheet? Help us fix it.

Freelancers

Verified

Verified Solar Installers for this Product

View All

Kibozeeyi John

Skilled Solar Installer – Expertise in Felicity, CWorth, & other quality brands

Kampala

Solar Installation Solar Panel Cleaning Solar System Design

View Profile

Ndawula Muhamadi

Hybrid Solar Wholesale Supplier & Installer Expert

Masaka

Solar Installation Solar System Design Solar Energy Audits

View Profile

Osama Mathew

Solar | water pumps | Backup systems

Kampala

Lighting Troubleshooting CAD Design

View Profile

ANITA

Solar system installation

Kampala

Electrical Repairs Appliance Repair Solar Installation

View Profile

Okitwi Francis

Certified solar technician based in Tororo

Tororo

Solar Installation Inverter Setup Solar System Design

View Profile

Kizito Vincent

I am a technician dealing in hydro and solar power, security systems, networking...

Kampala

IT Support Electrical Repairs Battery Wiring

View Profile

Tamale Muhamad

Expert Solar Systems Designer & Installer – Powering Your Future!

Kampala

Solar Installation Solar Panel Cleaning Solar Water heater

View Profile

WASSWA Emmy

Solar installer

Bugiri

Electrical Repairs Solar System Design Electrical Installation

View Profile

Francis Ekapuloni

Professional Solar Expert

Kampala

Solar Installation Solar Energy Audits

View Profile

ETIENE MAATE

ElectroMechanical Engineer

Kampala

Project Management Solar Water heater Solar System Design

View Profile

Swipe/scroll to see more →

Description

Specs & details

Overview

SRNE ASP48120S200-H is a 12kW 48V hybrid inverter for Uganda power conditions. It supports up to 6.6kW PV input and is suitable for Home backup power, Small business, Off-grid solar where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

RATED OUTPUT POWER: 12,000W continuous with 24, maximum surge, supporting motor loads up to 6HP for pumps and appliances.
DUAL MPPT TRACKERS: Two independent MPPT inputs each rated for 6600W, with a voltage range of 125-425Vdc and 99.9% tracking efficiency.
BATTERY FLEXIBILITY: Compatible with 48V lithium-ion, lead-acid, or user-defined batteries; supports up to 200A hybrid charging current.
PARALLEL OPERATION: Expandable from 1 to 6 units in parallel for higher power demands, with automatic load sharing.
COMMUNICATION PORTS: Includes RS485, CAN, USB, and dry contact for monitoring, BMS integration, and generator control.
INDOOR INSTALLATION: IP20 protection rating, built-in fan cooling, and operates from -10°C to 55°C with derating above 45°C.

What's Included

1x SRNE ASP48120S200-H Hybrid Inverter, 1x User Manual, 1x Warranty Card

Applications

Home backup power during grid outages
Small business and shop power backup
Off-grid solar systems with battery storage
Hybrid grid-tie systems with solar and battery
Water pumping and motor loads up to 6HP

Product FAQs

SRNE ASP48120S200-H is a 12kW hybrid inverter in Uganda. Key specs include battery voltage range 48V, max PV input voltage 500Vdc/500Vdc, max PV input power 6.6kW, rated AC output 12kW, communication RS485/CAN, warranty 2 years.

Browse live offers

For SRNE ASP48120S200-H, use MPPT/operating voltage range 125-425Vdc/125-425Vdc, max PV input voltage 500Vdc/500Vdc, and max PV input power 6.6kW when designing strings.

Browse live offers Find technicians

SRNE ASP48120S200-H allows up to 6.6kW PV input power. Use MPPT range 125-425Vdc/125-425Vdc, max PV input voltage 500Vdc/500Vdc for string sizing checks.

Browse live offers

SRNE ASP48120S200-H is built for 48V battery systems. The battery voltage range is 48V, with maximum charging current 22A+22A.

Browse live offers

SRNE ASP48120S200-H has a rated AC output of 12kW. It operates with grid frequency 50/60Hz and AC voltage range 230Vac (Single-phase). If needed, use 90-275Vac for compatibility checks.

Browse live offers Request quotes Find technicians

Compare verified seller pricing, warranty terms, authenticity, and installer support for SRNE ASP48120S200-H. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.

Browse live offers Compare models Request quotes
