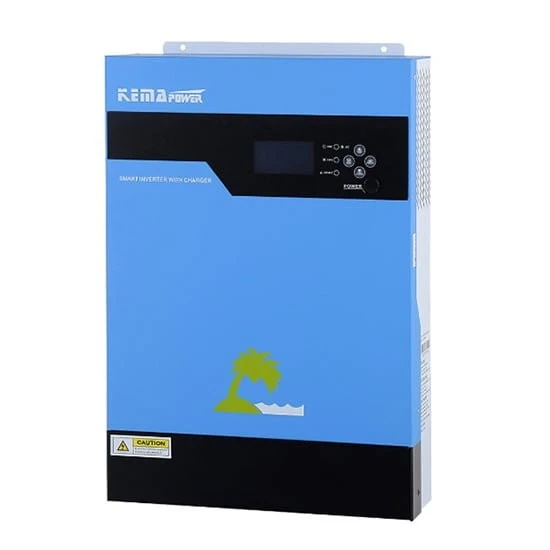

3.5kVA 24V Kema Solar Hybrid Inverter (N-SUB3500)

Top Selling Products

Felicity 5KVA, 48V Hybrid Inverter With MPPT 100A High Frequency

UGX2,490,000
3KVA, 24V Felicity Hybrid Solar Inverter With MPPT 100A High Frequency

UGX1,950,000
Masrcorp Solar Water Heater 120Ltrs Direct-Megasun

UGX3,800,000
Chloride Exide Chloride Solar Battery 100Ah 12V Ceil NXT

UGX635,000
15A 75V MPPT Victron Smart Solar charge Controller

UGX489,000
75A 150V MPPT Victron Smart Solar charge Controller Masrcorp

UGX2,290,000

Reviews & Ratings

0 out of 5.0

(0 reviews)

There have been no reviews for this product yet.

Description

Kema Power Inverters and Kema Hybrid Solar inverters are premium range puresine wave inverters for all kind of applications fro domestic to commercial solar systems in ? Off grid hybrid solar inverter SUB 3.5KW ?�3 in 1 design , Inverter MPPT controller AC Charger ?�Solar,Grid and Battery Energy complement each other,priority selectable ? Working without battery during daytime ? High efficiency sine wave output,Minimal self-consumption ? Wide MPPT range 120Vdc--450Vdc, 80A ? Intelligent 3 stage AC battery charger,60A adjustable ? Surge Twice the rated power for 5 seconds ?�Monitor, troubleshoot, or communication with USB/RS232 ?�Wifi Module option for App display Function

1. LCD display 2. Status indicator 3. Charging indicator 4. Fault indicator 5. Function buttons 6.�Power on/off switch 7. AC input 8. AC output 9. PV input 10.Battery input

�11. Circuit breaker 12. RS232 communication port 13. Parallel communication cable (only for parallel model) 14. Current sharing cable (only for parallel model) 15. Dry contact 16. USB communication port 17. Grounding

Buy kema solar hybrid inverter in Uganda

ITEM	Model	N-SUB1500	N-SUB3500	N-SUB5500
INPUT	RATED POWER	1.5KW	3.5KW	5.5KW
	Voltage	230 VAC
	Selectable Voltage Range	�170-280 VAC (For Personal Computers)
		90-280 VAC (For Home Appliances)
	Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT	Voltage	230VAC � 5%(Bat Mode)
	Surge Power	2 times Rated power for 5 seconds
	Overload Protection	5s@?150% load;�10s@110%~150% load
	Efficiency,PV to INV.	97% (Peak)
	Efficiency,Battery to INV.	94%(Peak)
	Transfer Time	10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Battery type		AGM/Flooded/user defined , Lithium ( need to mention when needed )
BATTERY & AC CHARGER	Battery Voltage	24 VDC	24 VDC	48 VDC
	Floating Charge Voltage	27 VDC	27 VDC	54 VDC
	Overcharge Protection	33 VDC	33 VDC	63 VDC
	Charge Current (Max)	60A	80A	80A
SOLAR CHARGER	PV Array Power (Max)	2000W	5KW	6KW
	MPPT Range	120 ~ 450 VDC
	PV Array VOC (Max)	500 VDC
	Charging Current (Max)	80A, AC Solar adjustable	Max100A AC Solar	Max100A AC Solar
	Efficiency (Max)	0.98
Display	LED	Line Mode or bat Mode, Charging status ,Fault
	LCD	Vac HZ, Charge Amp W, PV VDC Amp W , Load % VA W Amp ,bat % VDC ,,setup , Fault code, working mode,
Setup/Adjust parameter		Solar power /utility power/Battery priority, united Charge Current , AC Charge Amp, AC input range, VAC HZ, Bat VDC back to utility power, BAT VDC back to Bat Mode, Charge Source select ,Alarm on off , overload bypass, Bulk/ Floating Charge VDC, Bat Low Cut VDC ,��equalization Charge VDC / mins / days,
Output working Mode	utility power priority	default. Utility power priority, Solar and battery as backup when utility power not available
	Solar priority(SUB Mode)	solar power priority, utility power supplement to load when solar power is not enough , utility not available, battery supplement to load. Working on daytime while No Bat
	SBU priority	Solar power priority, When Solar power is not enough,battery to supplement.when battery power is not enough , utility power to load. Working on daytime while No Bat
Product size	LWH	448295105mm
Net Weight (kgs)	Kg	8.5	9	10
Carton size	LWH	590390208mm
Carton weight	Kg	11	11	11.8
