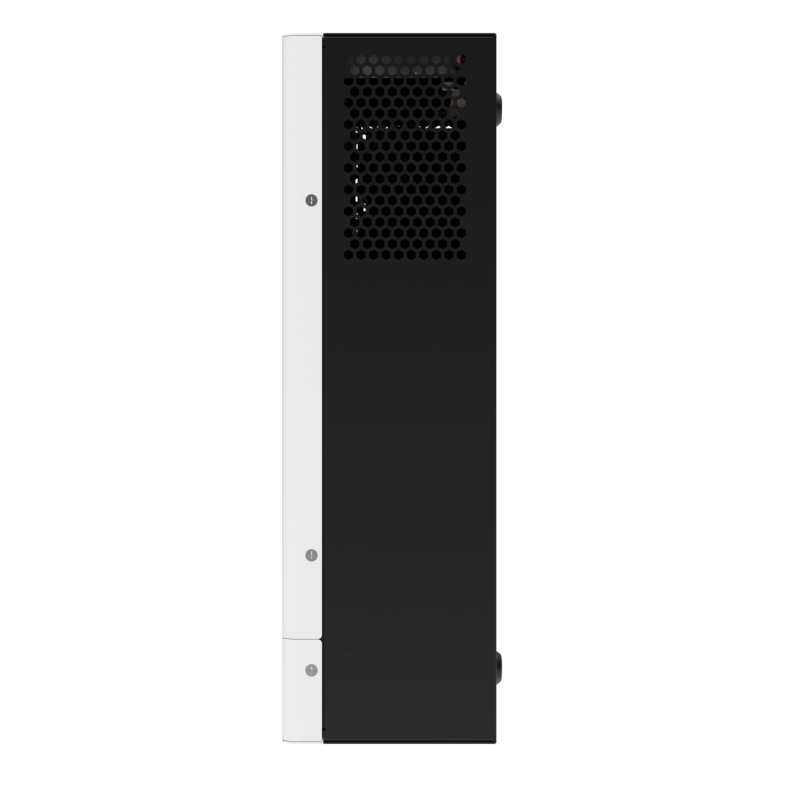

| Feature | SRNE HF1215S60-108 1.5kW 12V Hybrid Solar Inverter | Felicity IVCM1012 Hybrid Inverter 1kVA 12V for |
|---|---|---|
| Other Specs | ||
| Model | HF1215S60-108 | IVCM1012 PRO |
| Rated Power | 1, 500 W VA | W): 1000 VA/1000 W |
| MPPT Voltage Range | 15~90 VDC V | 15-90 V |
| Brand | SRNE | Felicity |
| Input AC Voltage Range | 15V Vac | 15-90V Vac |
| Max Charging Current | 60 A | 20 A |
| Max PV Input Power | 1, 000 W | 800 W |
| Max PV Open Circuit Voltage | 108 VDC V | 105 V |
| Nominal DC Input Voltage | 12 V | 12 V |
| Nominal Voltage | 12 V | 12 V |
| Number of MPPT Trackers | 1 | 1 |
| Package Dimensions | 357.5*235*103mm | (D*W*H), 422x330x181MM |
| Product Dimensions | 357.5*235*103 mm | 340x248x107 mm |
| Product Weight | 5.5 kg | 5.5 kg |
| Capacity | 1HP | - |
| Certification | RoHs/IEC 62109/EN61000/C2 | - |
| Chemistry | Lead-Acid / Li-ion | - |
| Communication | RS485/CAN | - |
| Cooling Concept | Fan Cooling | - |
| Efficiency | 99.9 % | - |
| Float Charge Voltage | - | 12 V |
| Ingress Protection | IP20 Only Indoor | - |
| Load Motor Capacity | 1HP | - |
| Max AC Input Voltage | 230 Vac | - |
| Max PV Input Current | 28.5 A | - |
| Max. Bypass Overload Current | 9.7 A | - |
| Max. Shorted Current | - | 10 A |
| Nominal Output Frequency | 50/60 Hz | - |
| Nominal Output Voltage | 230 Vac(Single-Phase) Vac | - |
| Operating Temperature | -10℃~55℃ °C | - |
| Overcharge Protection | - | Solar Charging & Grid Charging |
| Peak Current (15s) | - | 10 |
| Protection Features | Degree, IP20 Only Indoor | - |
| Storage Temperature | -10℃~55℃ °C | - |
| Surge Power | 3, 000 VA | - |
| Transfer Time | 10ms(typical) | - |
| Warranty | 2 Years | - |
| Waveform | Pure sine wave | - |
| Compatibility | ||
| Brand Compatibility | Official: , | Official: , |
