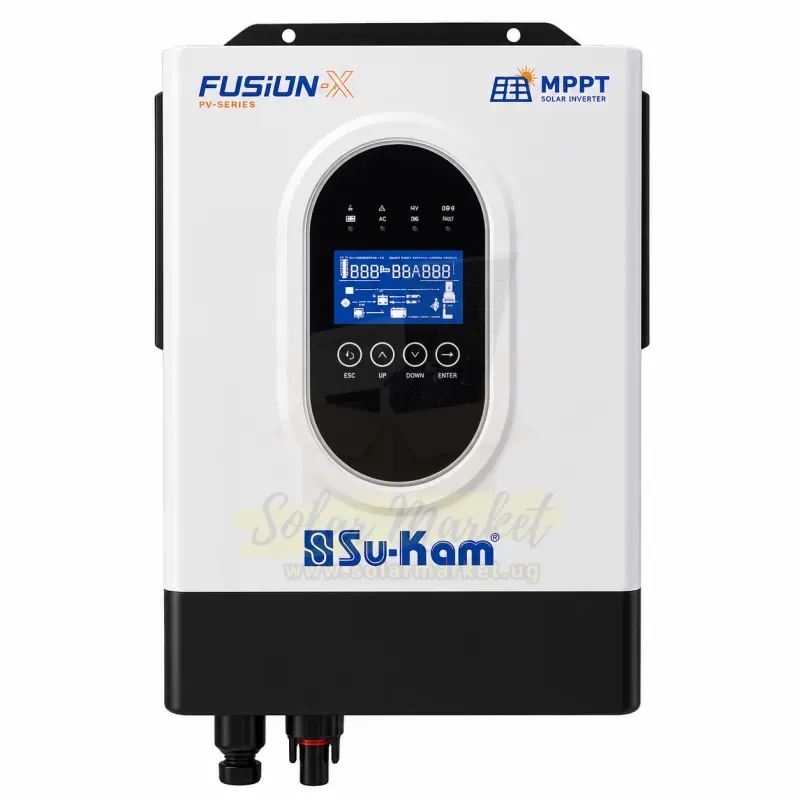

Sukam 6.2kVA/5500W Hybrid Inverter for Home and Small Business Backup 48VDC 230VAC Output 120A MPPT LCD & App Monitoring (FX6200-48H)
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
Sukam · Hybrid Inverters

Sukam 6.2kVA/5500W Hybrid Inverter for Home and Small Business Backup 48VDC 230VAC Output 120A MPPT LCD & App Monitoring (FX6200-48H)

UGX2,068,000
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX60,000Cash on Delivery2-yr warranty
Sold by
Auto Solutions plus ltd ✓
Kampala · 9 In stock
UGX2,068,000
Want another price?Only one shop lists this right now. Send one request and other shops reply with their prices.
Similar products from other shops

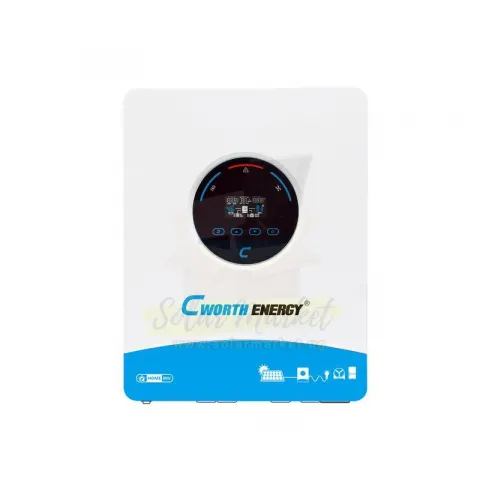

Cworth 4kW Hybrid Inverter for Home and Small Business Backup 24V DC Input 230VAC Output 120A MPPT Parallel up to 12 Units (CE-H4K) Cworth 4kW Hybrid Inverter for Home and Small Business Backup 24V DC I... UGX2,141,700 Cworth Energy 3kVA 24V 48V Tbb Riio Sun Ii All In One Solar Hybrid Inverter Versatile Solar And Backup Power Solution 3kVA 24V 48V Tbb Riio Sun Ii All In One Solar Hybrid Inverter Versatil... UGX1,894,000 Masrcorp Solar Uganda SRNE 6kW Hybrid Inverter for Home and Small Business Backup Dual MPPT 48V 230VAC Output Parallel up to 6 Units IP65 (AEP4860S135-H) SRNE 6kW Hybrid Inverter for Home and Small Business Backup Dual MPPT... UGX2,266,000 Masrcorp Solar Uganda 2kVA 24V Tbb Riio Sun Ii All In One Solar Hybrid Inverter Versatile Solar And Backup Power Solution 2kVA 24V Tbb Riio Sun Ii All In One Solar Hybrid Inverter Versatile So... UGX1,768,000 Masrcorp Solar Uganda
Ways to payAll options
Cash on DeliveryOrder now, pay Auto Solutions plus ltd in cash
Pay NowBank Transfer · Cash on Delivery
Warranty and returns
Warranty
2 years · this product
The warranty is this product's own (2 years). If the shop doesn't reply to a claim in 48 hours, SolarMarket steps in.
Complete your systemMatched to 48 V
Solar Panels
UGX429,000
Battery
UGX7,790,000
Cables, mounting and protection
UGX41,580
With this product:
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Brand Sukam Model 230VAC ± 5%
Rated Power 6200VA/5500W Max PV Input Power 6000 W
Max Charging Current 100A Max PV Open Circuit Voltage 500VDC
Nominal Output Voltage 230VAC Nominal Voltage 170-280 V
Number of MPPT Trackers 120A Surge Power 12400VA
Product Dimensions 550mm*393mm*196mm Product Weight 9.7kg
Waveform Pure Sine Wave AC Output Rated Current 120A
Current Rating 120 A Display LCD & App
Float Charge Voltage 56.0VDC Input Voltage Range 170-280VAC (UPS), 90-280VAC (Appliances)
Max. AC Input/Output Apparent Power (VA) 6200VA/5500W Over Discharging Voltage 44.0VDC
Overcharge Protection 64.0VDC Parallel Capability W/O
Power Factor 1 Rated AC Input/Output Active Power (W) 6200VA/5500W
SKU SM-HYB-SUK-01340 Zero load power (W) <40W

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

Sukam FX6200-48H is a 6.2kW hybrid inverter for Uganda power conditions. It supports up to 6kW PV input and is suitable for Home backup power, Small business power, Solar self-consumption where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

  • RATED POWER: 6.2kVA/5500W continuous output with 12.4kVA surge capacity for handling startup loads of appliances and tools.
  • BATTERY VOLTAGE: Operates on a 48VDC battery bank, with low battery alarm at 44.0VDC and recovery at 46.0VDC for system protection.
  • MPPT SOLAR CHARGING: Integrated 120A MPPT charge controller supports up to 6000W PV array with a maximum open circuit voltage of 500VDC.
  • AC INPUT RANGE: Selectable voltage range of 170-280VAC for UPS mode and 90-280VAC for appliance mode, accommodating unstable grid conditions common in Uganda.
  • MONITORING: LCD display and RS485 communication port for BMS integration, plus app-based monitoring for remote system management.
  • PURE SINE WAVE: Delivers clean 230VAC ±5% pure sine wave output at 50/60Hz auto-sensing, suitable for sensitive electronics.

What's Included

  • Sukam FX6200-48H Hybrid Inverter unit
  • User manual
  • RS485 communication cable
  • Mounting brackets and screws

Applications

  • Home backup power during grid outages
  • Small business power backup for shops and offices
  • Solar self-consumption systems with battery storage
  • Off-grid or hybrid residential solar installations
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What are the key specs of Sukam FX6200-48H in Uganda?
Sukam FX6200-48H is a 6.2kW hybrid inverter in Uganda. Key specs include max PV input voltage 500VDC, max PV input power 6kW, rated AC output 6.2kW, communication RS485.
What PV voltage limits should technicians use for Sukam FX6200-48H?
For Sukam FX6200-48H, use MPPT/operating voltage range 500VDC, max PV input voltage 500VDC, and max PV input power 6kW when designing strings.
How much solar PV can be connected to Sukam FX6200-48H?
Sukam FX6200-48H allows up to 6kW PV input power. Use max PV input voltage 500VDC for string sizing checks.
What battery and charge current settings apply to Sukam FX6200-48H?
Sukam FX6200-48H is built for the listed battery voltage battery systems. The battery voltage range is the listed battery voltage, with maximum charging current the listed charging current.
What AC output should buyers and installers expect from Sukam FX6200-48H?
Sukam FX6200-48H has a rated AC output of 6.2kW. It operates with grid frequency 50Hz/60Hz (Auto Sensing) and AC voltage range 170-280VAC (UPS), 90-280VAC (Appliances). If needed, use 170-280VAC (UPS), 90-280VAC (Appliances) for compatibility checks.
What should buyers compare before ordering Sukam FX6200-48H in Uganda?
Compare verified seller pricing, warranty terms, authenticity, and installer support for Sukam FX6200-48H. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.
