Sosen · Hybrid Inverters

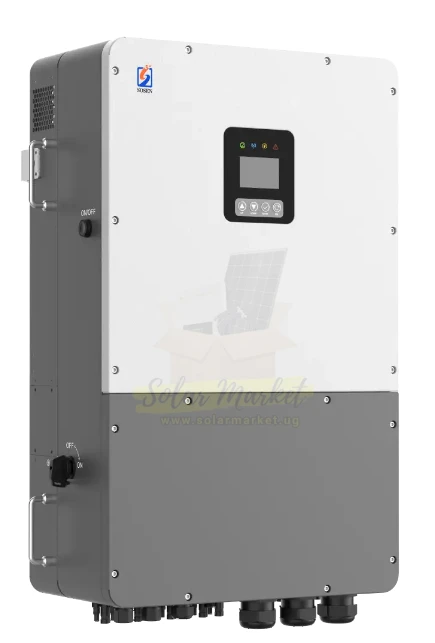

Sosen SSE-HH50K-P3EU 50kW High Voltage Three Phase Hybrid Inverter for Commercial and Industrial Backup, 4 MPPT 150-850V, 100kW PV, 135-850V Battery, 2x100A Charge, 380/400V, IP65, Up to 6 in Parallel

UGX17,810,000 VAT incl.
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX356,200Cash on Delivery
Christmas on SolarMarket Power for the holidays A gift that keeps the lights on. Pay safely through SolarMarket. Black Friday → Solar for every Christmas plan –Days–Hours–mins
Sold by
Collective Energy Africa ✓
Kampala · 1 In stock
UGX17,810,000
Ways to payAll options
Cash on DeliveryOrder now, pay Collective Energy Africa in cash
Pay NowBank Transfer · Cash on Delivery
Complete your systemPick one of each. They go in your cart with this product.
Matched to high voltage
Solar PanelsUGX429,000
BatteryUGX34,080,800
Cables, mounting and protectionUGX26,565
With this product
Technicians who install this
Swipe/scroll to see more →
Key specs
Brand Sosen Model SSE-HH50K-P3EU
Rated Power 55 kVA (EPS / generator port) Max PV Input Power 100 kW
Max Charging Current 2 x 100 A MPPT Voltage Range 150 ~ 850 V DC
Nominal Output Voltage 380 / 400 V AC, 3W+N+PE Nominal Output Frequency 50 / 60 Hz
Nominal Voltage 135 ~ 850 V DC Number of MPPT Trackers 4
Surge Power 110% 30 s / 120% 10 s / 150% 0.2 s Product Dimensions 680 x 1050 x 400 mm
Product Weight 88 kg Communication RS485 / WiFi / CAN / DRM; optional 4G, Bluetooth, LAN
Waveform Sine wave Efficiency 98.50% (Euro-efficiency 97.20%)
Operating Temperature -25 to +60 °C (derating above 45 °C) AC Output Rated Current 72 A
Battery Type Lithium / Lead-acid Certification Planned: CEI0-21, EN 50549-1, VDE-AR-N 4105, UNE 217002, NTS Type A, G99, AS/NZS 4777.2, CE LVD, CE EMC
DC Polarity Reverse Connection Protection Yes Display LED + app
Humidity (non-condensing) 0 - 95% (non-condensing) Ingress Protection IP65
Insulation Resistor Detection Yes Inverter Type Hybrid (high-voltage battery)
Max PV Input Current 8 x 20 A Max PV Voltage (DC) 1000 V
Max. AC Input/Output Apparent Power (VA) 55 kVA Max. PV short circuit current 8 x 30 A
Noise <65 dB Output Over Current Protection 153 A
Parallel Operation Yes, up to 6 units Permissible Altitude 4000 m (derating above 2000 m)
Phase Three phase Power Factor 0.8 leading ~ 0.8 lagging
Protection Ground fault current monitoring, earth fault detection, residual current (RCD) detection, overvoltage AC type III and DC type II, battery reverse connection protection PV Start-up Voltage 200 V DC
Residual Current (RCD) Detection Yes (residual current monitoring) SKU SM-HYB-SOS-01391
Storage Temperature -40 to +70 °C Transfer Time <20 ms

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

The Sosen SSE-HH50K-P3EU is a 50 kW three phase (380/400 V) hybrid inverter for high-voltage lithium or lead-acid battery banks. It takes up to 100 kW of solar on 4 MPPT trackers with 8 strings, charges and discharges the battery at up to 2 x 100 A, and keeps critical loads running from its EPS output, with a generator input and up to 6 units in parallel.

About this item

  • POWER: 50 kW rated output, 55 kVA on the EPS/generator port, 72 A continuous grid current; overload 110% 30 s, 120% 10 s, 150% 0.2 s.
  • BATTERY: lithium or lead-acid, 135 - 850 V DC range, 250 V nominal, 2 x 100 A charge and discharge, two battery inputs.
  • SOLAR: 4 MPPT trackers, 8 strings, up to 100 kW PV, 150 - 850 V MPPT range, 1000 V max, 200 V start-up, 8 x 20 A input current.
  • EFFICIENCY: up to 98.5% (97.2% Euro-efficiency), MPPT efficiency 99.9%.
  • PROTECTION: insulation and residual current monitoring, earth fault detection, AC type III and DC type II surge protection.
  • BUILD: IP65, 544 x 880 x 278 mm, 88 kg, -25 to +60 °C; LED display and app; RS485, WiFi, CAN, DRM.

Specifications from the Sosen SSE-HH30K-60K-P3EU three phase hybrid inverter datasheet.

Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What is the rated output power of the SSE-HH50K-P3EU?
The datasheet lists 138 / 50 kW rated power (input/output) and 50 kW EPS input/output active power for this model.
What battery voltage range does it support?
It supports a 135~850 Vdc battery voltage range with 250 V nominal battery voltage and lithium/lead-acid battery types.
How many MPPT trackers and PV strings does it have?
It has 4 MPPT trackers with 4/2+2+2+2 strings, 100 kW max PV array power, 1000 V max DC voltage, and 150~850 Vdc MPPT operating range.
Can it be paralleled?
Yes, the parallel function supports up to six units.
What are the output and protection ratings?
It provides 380 / 400 Vac, 3W+N+PE three-phase output, 72 Aac maximum continuous current, and 153 Aac max output overcurrent protection.
What is the protection degree and operating temperature?
IP65 protection degree, -25°C to +60°C operating ambient temperature with derating above 45°C, and <65 dB noise.
What communication and display options are available?
LED+APP display, with RS485/WiFi/CAN/DRM interfaces and optional 4G, Bluetooth, and LAN.
