Entelechy · Hybrid Inverters

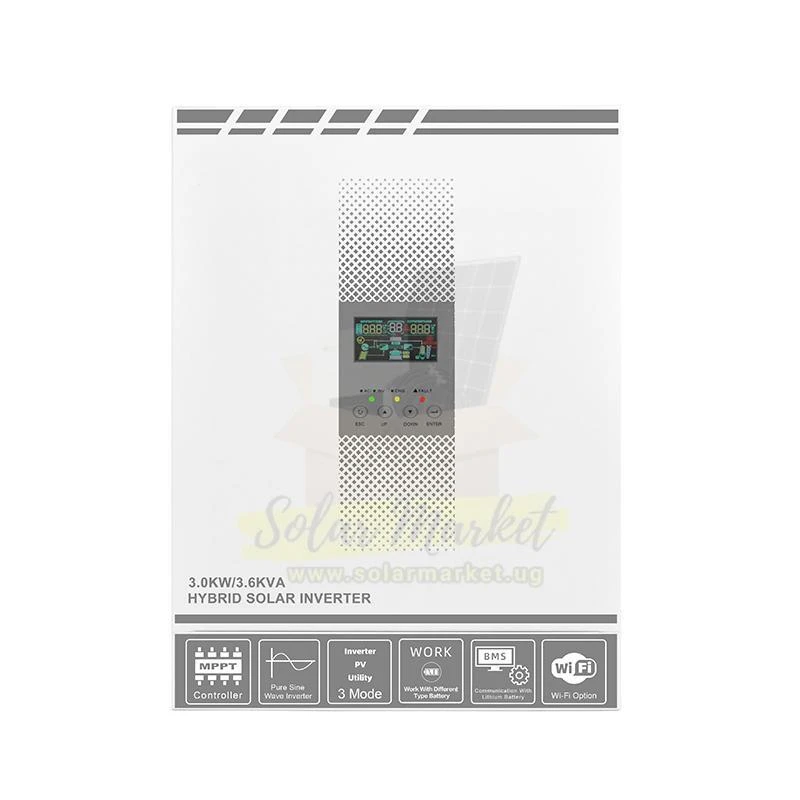

Entelechy BST-HPL-3000W 3kW 24V Solar Inverter for Home and Small Business Backup, 80A MPPT, 500V PV

UGX3,072,853
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX61,457
Christmas on SolarMarket Power for the holidays A gift that keeps the lights on. Pay safely through SolarMarket. Black Friday → Solar for every Christmas plan –Days–Hours–mins
Sold by
Entelechy Solar Solutions ✓
30 In stock
UGX3,072,853
Ways to payAll options
Pay NowBank Transfer
Complete your systemPick one of each. They go in your cart with this product.
Matched to 24 V
Solar PanelsUGX429,000
BatteryUGX4,324,800
Cables, mounting and protectionUGX15,939
With this product
Technicians who install this
Swipe/scroll to see more →
Key specs
Brand Entelechy Model RS232
Rated Power 3600VA/3000W Max PV Input Power 3000 W
Max Charging Current 100A Nominal Output Voltage 230VAC
Nominal Voltage 170-280 V Surge Power 6000W
Communication RS232(Standard) GPRS/IFI(Optional) Operating Temperature 0°C to 55° C
Current Rating 100 A Float Charge Voltage 27VDC
Input Voltage Range 170-280VAC Max PV Voltage (DC) 500 V
Max. AC Input/Output Apparent Power (VA) 3600VA/3000W Overcharge Protection 28.8VDC
SKU SM-HYB-ENT-01141 Solar Charger Type 3000W
Start Voltage 230VAC Storage Temperature -15°C to 60°C

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

Entelechy BST-HPL-3000W is a 3.6kW 500V hybrid inverter for Uganda power conditions. It supports the published PV input limit and is suitable for Home backup power, Small office power, Small retail shop where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

  • RATED POWER: 3.6kVA/3000W continuous output with 6000W surge capability for starting inductive loads like motors and compressors.
  • BATTERY COMPATIBILITY: Operates on a 24VDC battery bank with floating charge voltage of 27VDC and overcharge protection at 28.8VDC.
  • SOLAR CHARGING: Built-in 100A MPPT charge controller accepts PV array up to 3000W with maximum open circuit voltage of 500VDC.
  • AC OUTPUT: Delivers 230VAC pure sine wave output with voltage regulation of 230VAC +/- 5% in battery mode.
  • COMMUNICATION: Standard RS232 interface for local monitoring; optional GPRS or WiFi module for remote management.
  • OPERATING RANGE: Designed for 0C to 55C ambient temperature with storage capability from -15C to 60C.

What's Included

  • Entelechy BST-HPL-3000W hybrid inverter unit
  • User manual
  • RS232 communication cable
  • Mounting brackets and hardware

Applications

  • Home backup power for lighting, fans, TVs, and phone charging
  • Small office power for computers, printers, and networking equipment
  • Small retail shop power for POS systems and lighting
  • Remote monitoring stations and telecommunications equipment
  • Water pumping systems with appropriate inverter-rated pumps
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What are the key specs of Entelechy BST-HPL-3000W in Uganda?
Entelechy BST-HPL-3000W is a 3.6kW hybrid inverter in Uganda. Key specs include battery voltage range 24V, max PV input voltage 500VDC, rated AC output 3.6kW, communication RS232(Standard) GPRS/IFI(Optional), monitoring RS232(Standard) GPRS/IFI(Optional).
What PV voltage limits should technicians use for Entelechy BST-HPL-3000W?
For Entelechy BST-HPL-3000W, use MPPT/operating voltage range 500VDC, max PV input voltage 500VDC, and max PV input power the listed PV input power when designing strings.
How much solar PV can be connected to Entelechy BST-HPL-3000W?
Entelechy BST-HPL-3000W allows up to the listed limit PV input power. Use max PV input voltage 500VDC for string sizing checks.
What battery and charge current settings apply to Entelechy BST-HPL-3000W?
Entelechy BST-HPL-3000W is built for 24V battery systems. The battery voltage range is 24V, with maximum charging current the listed charging current.
What AC output should buyers and installers expect from Entelechy BST-HPL-3000W?
Entelechy BST-HPL-3000W has a rated AC output of 3.6kW. It operates with grid frequency 50Hz/60Hz (Auto sensing) and AC voltage range 170-280VAC. If needed, use 170-280VAC for compatibility checks.
What should buyers compare before ordering Entelechy BST-HPL-3000W in Uganda?
Compare verified seller pricing, warranty terms, authenticity, and installer support for Entelechy BST-HPL-3000W. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.
