Cworth · Solar Panels

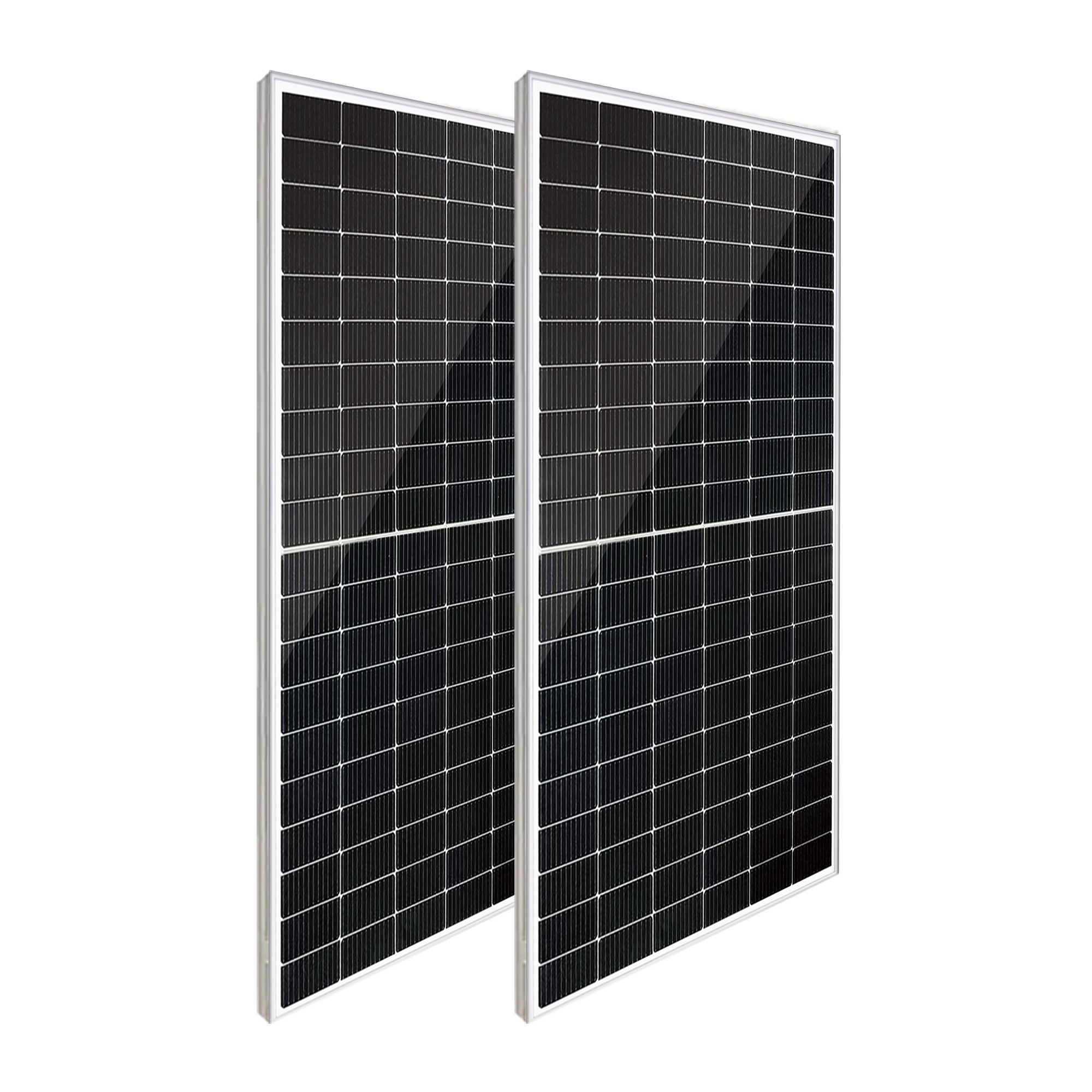

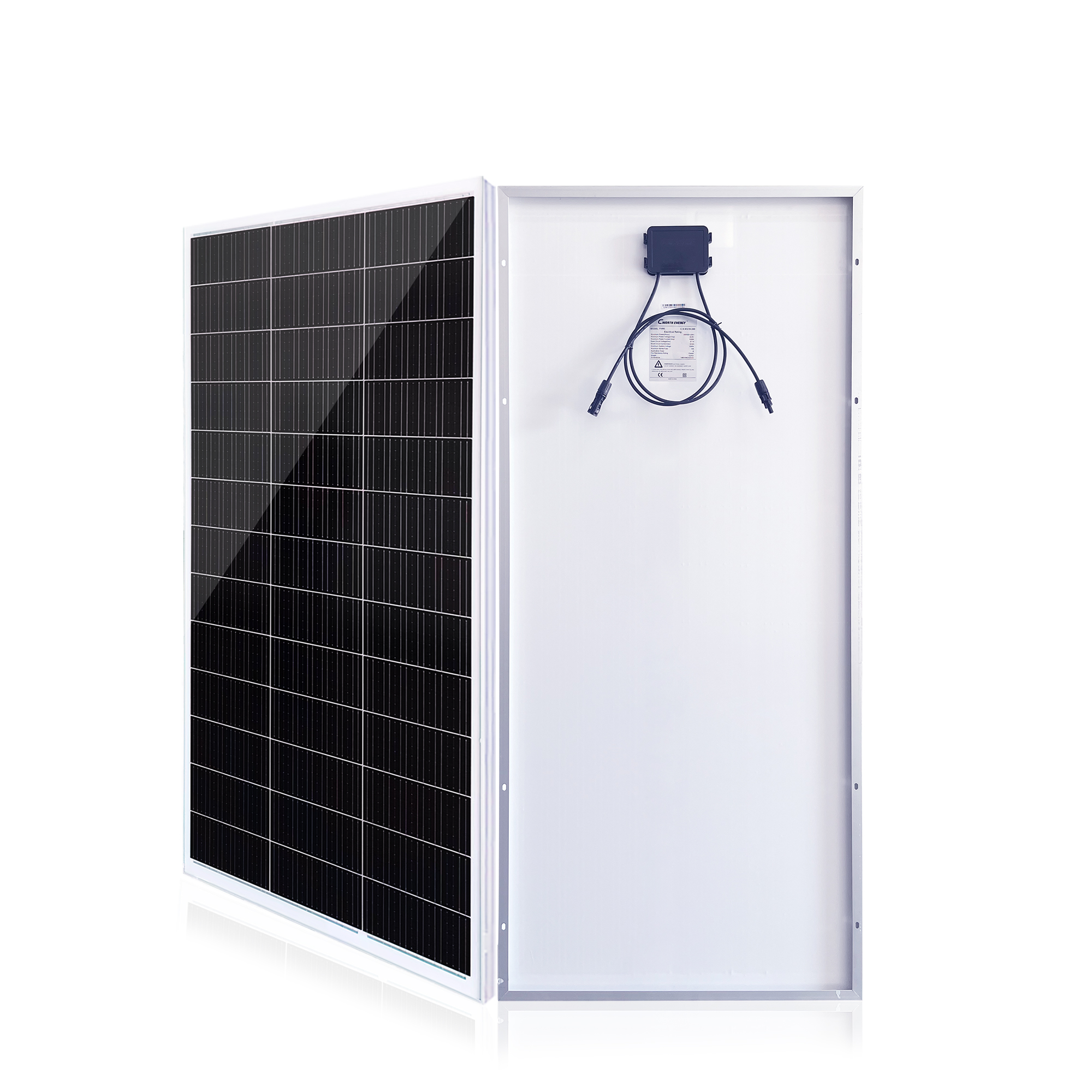

Cworth 500W Solar Panel for Residential and Commercial Solar Backup, Mono TOPCon 144 Cells, 22.3% Efficiency, 1000/1500VDC System Voltage, 12-Year Product Warranty (CE-500W)

UGX411,400
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX12,342
Christmas on SolarMarket Power for the holidays A gift that keeps the lights on. Pay safely through SolarMarket. Black Friday → Solar for every Christmas plan –Days–Hours–mins
Sold by
Cworth Energy ✓
160 In stock
UGX411,400
More choice from other shopsSimilar products near this price, sold by other shops on SolarMarket
See All Solar Panels →
Ways to payAll options
Pay NowBank Transfer
Complete your systemPick one of each. They go in your cart with this product.
InverterUGX1,674,000
BatteryUGX3,334,760
Cables, mounting and protectionUGX15,939
With this product
Technicians who install this
Swipe/scroll to see more →
Key specs
Brand Cworth Model CE-500W
Rated Power 500 W Nominal Voltage 1000/1500 V (IEC)
Product Dimensions 1908 x 1134 x 30 mm Product Weight 22.5 KG
Efficiency >= 23 % Operating Temperature -40°C~+85°C
Warranty 25 years Cell Type N-type mono TOPCon (182 x 182 mm), half-cut
Chemistry MONO TOPCon Current at Pmax (Imp) 12.3 A
Current Rating 12.3 A Frame Anodized Aluminium Alloy
Front Glass 3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass Junction Box (IP Rating) IP68
Max. PV short circuit current 13.01A Maximum Power (Pmax) 500 W (0 to +5 W)
Maximum Series Fuse Rating 30A Number of Cells 144 (12x12)
Open-Circuit Voltage (Voc) 48.2 V Output Cables (+): 500mm , (-): 500mm or Customized Length
Power Tolerance 0~+3% Short-circuit Current (Isc) 13.01 A
SKU SM-CAT-CWO-00879 Snow Load 5400 Pascal
Temperature Coefficient of Voc -0.35%/°C Voltage at Pmax (Vmp) 40.65 V
Wind Load 2400 Pascal

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

Cworth CE-500W is a solar panel for Uganda operating conditions. It is suitable for Residential rooftop, Commercial, Off-grid and backup, Grid-tied solar arrays. Buyers should also confirm Cell Type: MONO TOPCon 182x182mm; No. of cells: 144 (12x12); Dimensions: 2279x1134x35mm; Weight: 26-27kg, verified seller pricing, warranty terms, and installer compatibility before ordering

About this item

  • Cell Technology: Mono TOPCon 182x182mm cells with 144 half-cut cells for improved low-light performance and higher energy yield.
  • Module Efficiency: 22.3% STC efficiency, reducing the number of panels needed for a given system size.
  • Durability: 3.2mm tempered glass with anti-reflection coating, anodized aluminium frame, and IP68 junction box for long-term outdoor use.
  • Warranty: 12-year product warranty and 25-year linear power output warranty with 0.45% annual degradation.
  • Mechanical Load: Rated for 2400 Pascal wind load and 5400 Pascal snow load, suitable for various mounting conditions.
  • System Voltage: Maximum system voltage of 1000/1500VDC (IEC), compatible with standard residential and commercial inverters.

What's Included

  • 1x Cworth CE-500W solar panel
  • 1x IP68 junction box with 500mm output cables (+ and -)
  • 1x warranty card

Applications

  • Residential rooftop solar systems
  • Commercial and industrial solar installations
  • Off-grid and backup power systems
  • Grid-tied solar arrays
  • Solar water pumping systems
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What are the key specs of Cworth CE-500W in Uganda?
Cworth CE-500W is a solar panel in Uganda. Key datasheet specs include Cell Type: MONO TOPCon 182x182mm; No. of cells: 144 (12x12); Dimensions: 2279x1134x35mm; Weight: 26-27kg.
Which technical limits should installers verify for Cworth CE-500W?
Installers should verify Cell Type (MONO TOPCon 182x182mm), No. of cells (144 (12x12)), and Dimensions (2279x1134x35mm) before commissioning Cworth CE-500W.
What should buyers compare before ordering Cworth CE-500W in Uganda?
Compare verified seller price, warranty, authenticity, and after-sales support for Cworth CE-500W. Match all offers against the same datasheet values: Cell Type: MONO TOPCon 182x182mm; No. of cells: 144 (12x12); Dimensions: 2279x1134x35mm; Weight: 26-27kg.
What installation details matter most for Cworth CE-500W?
Installers should verify Weight (26-27kg), ensure the mounting or system fit matches the site, and confirm any protection or operating limits listed for Cworth CE-500W.
How should buyers judge durability or service life for Cworth CE-500W?
Durability should be judged using Front Glass (3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass) and Frame (Anodized Aluminium Alloy), plus the warranty term and the way the product is mounted or used.
Why is Cworth CE-500W a practical fit for local solar projects?
It is practical where the site needs Cell Type (MONO TOPCon 182x182mm), No. of cells (144 (12x12)), and Dimensions (2279x1134x35mm), because those are the model's core operating limits.
