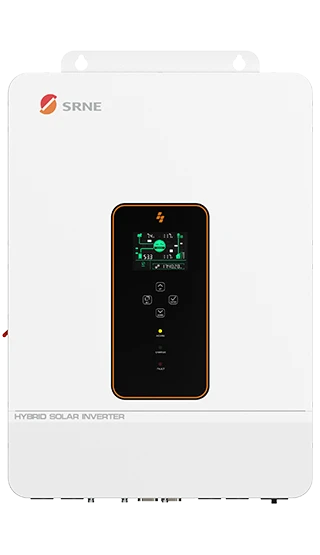

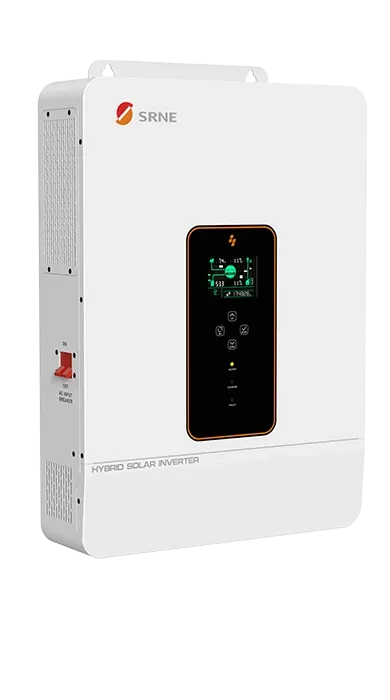

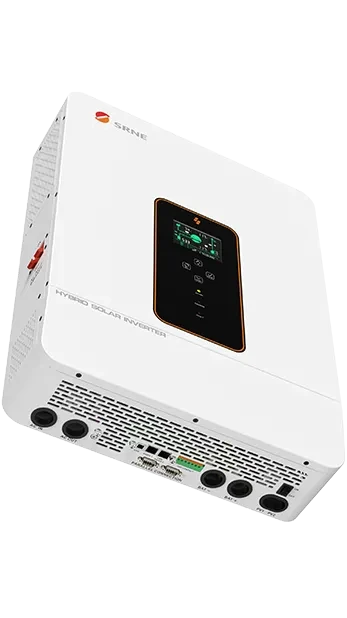

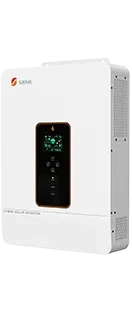

SRNE ASP48100S200-H Hybrid Solar Inverter Three Phase Pure Sine Wave with 63A MPPT Controller for Residential solar

Name: SRNE ASP48100S200-H Three Phase Hybrid Inverter | SolarMarket Uganda
Brand: SRNE
SKU: 48V-12000W-HYBRIDINVERTER
Price: 5940000.00 UGX
Availability: InStock

SRNE

0 out of 5 | 0 Ratings | Q&A

About this item

Product spotlights

Highlights: The SRNE ASP48100S200-H is a three-phase hybrid solar inverter designed for residential use. It converts solar and battery power to grid-compatible AC, providing energy independence and backup during outages. It features a 63A MPPT controller for efficient solar harvesting and outputs pure sine wave power for sensitive electronics.

UGX6,534,000

Variation

10 available

Minimum order qty 1

QTY

Order on WhatsApp

Selected Product Summery

SRNE ASP48100S200-H Hybrid Solar Inverter Three Phase Pure Sine Wave with 63A MPPT Controller for Residential solar -

Compare With Similar capacity this category

Inhouse product

Message Seller

Brand SRNE

Products from this brand

Product Information

Technical specifications

Brand	SRNE	Model	ASP48100S200-H
Rated Power	10,000	Max PV Input Power	5,500W + 5,500
Max Charging Current	200	MPPT Voltage Range	125～425Vdc
Max PV Open Circuit Voltage	500Vdc + 500Vdc	Nominal DC Input Voltage	2
Nominal Output Voltage	230Vac（single-phase）	Nominal Output Frequency	50/60
Number of MPPT Trackers	2	Surge Power	15,000W
Product Dimensions	620445130	Product Weight	27
Communication	RS485 / CAN / USB / Dry contact	Waveform	Pure Sine Wave
Efficiency	92%	Operating Temperature	-10~55℃, >45℃
Warranty	2	AC Output Rated Current	50/60Hz
Chemistry	Li-ion / Lead-Acid / User Defined	Cooling Concept	Internal Fan
EMC	EN61000-6-1, EN61000-6-3, FCC 15 class B	External Modules (Optional)	Wi-Fi / GPRS
Ingress Protection	IP20，Indoor Only	Load Motor Capacity	6HP
Max. Bypass Overload Current	63A	Noise	<60dB
Parallel Capability	1~6 units (single-phase / three-phase)	Protection Features	Degree,IP20，Indoor Only
Safety Regulation IEC 62109-1 /	IEC62109-1, IEC62109-2	SKU	48V-12000W-HYBRIDINVERTER
Transfer Time	10ms（typical）

Notice a wrong or outdated datasheet? Help us fix it.

Freelancers

Verified

Verified Solar Installers for this Product

View All

Ssonko David

Commercial and Industrial solar Engineer

Kampala

Solar Installation Solar Water heater Solar System Design

View Profile

Solaredge Solutions Limited

Hybrid Solar Systems | Wholesale Supply & Expert Installation

Kampala

Solar Installation Solar System Design Solar Energy Audits

View Profile

Ssekisambu Ronald

Experienced electrical installer

Kampala

Battery Wiring Solar Installation Solar Panel Cleaning

View Profile

Emer Christopher

Expert Solar Installation | Reliable, Affordable & Energy-Smart Solutions

Lira

Lighting Electrical Repairs Appliance Repair

View Profile

Oyirwoth

Trusted Solar installer and Electrical installation

Kampala

Appliance Repair Solar Installation Circuit Fixing

View Profile

Kibozeeyi John

Skilled Solar Installer – Expertise in Felicity, CWorth, & other quality brands

Kampala

Solar Installation Solar Panel Cleaning Solar System Design

View Profile

Francis Makayi

Reliable Solar Solutions Expert in Uganda – Power Your Home & Business with Clea...

Solar Installation Solar Panel Cleaning Solar System Design

View Profile

Kaswa Tom

Solar and Electrical expert

Mukono

Inverter Repair Generator Repair Solar System Design

View Profile

Bruno Arinda

Experienced Solar system installer,maintenance

KAMPALA

Electrical Design Solar Installation Solar System Design

View Profile

Mandela Nelson

Electrician/solar installer and TV installer

Arua city

Solar Installation Solar System Design Electrical Installation

View Profile

Swipe/scroll to see more →

Description

Specs & details

Overview

Three Phase configuration. The SRNE ASP48100S200-H Hybrid Solar Inverter delivers 10kW rated output power with a pure sine wave output, suitable for both single-phase and three-phase low voltage (LV) installations. This inverter is engineered for residential, commercial, and light industrial applications in Uganda, offering seamless integration with lithium-ion, lead-acid, or user-defined battery banks at 48V. With dual MPPT trackers and a combined PV input capacity of 11kW, it ensures high solar energy harvest and system efficiency. The unit supports parallel operation of up to six inverters, enabling scalable solutions for larger power requirements. Its robust protection features, flexible output modes (off-grid and hybrid), and multiple embedded communication interfaces make it a versatile choice for reliable solar power management. Designed for indoor installation, the ASP48100S200-H meets international safety and EMC standards, ensuring dependable performance in diverse Ugandan environments.

About this item

SYSTEM TOPOLOGY: Three Phase architecture for compliant solar system design.
DUAL MPPT TRACKERS: Two independent MPPT inputs maximize solar energy capture and system flexibility.
PARALLEL OPERATION: Supports up to six units in single-phase or three-phase configurations for scalable power solutions.
MULTI-BATTERY COMPATIBILITY: Works with 48V lithium-ion, lead-acid, or user-defined battery types for tailored energy storage.
PURE SINE WAVE OUTPUT: Delivers stable 230V AC power suitable for sensitive electronics and motor loads up to 6HP.
HYBRID & OFF-GRID MODES: Switches between off-grid and hybrid operation to optimize energy usage and backup.

Product FAQs

This inverter is designed for low voltage (48V) battery systems and can operate in both single-phase (230V AC) and three-phase configurations when paralleled.

Browse live offers

Yes, the ASP48100S200-H is compatible with 48V lithium-ion, lead-acid, and user-defined battery types.

Browse live offers

Up to six units can be paralleled for increased capacity, supporting both single-phase and three-phase systems.

Browse live offers

The inverter has an IP20 protection rating and is designed for indoor installation only.

Browse live offers Find technicians

The inverter supports a maximum PV array input of 11kW (5.5kW per MPPT tracker).

Browse live offers

Yes, it can accept generator input for hybrid charging and backup power.

Browse live offers

It complies with IEC62109-1, IEC62109-2 safety standards and EMC requirements (EN61000-6-1, EN61000-6-3, FCC 15 class B).
