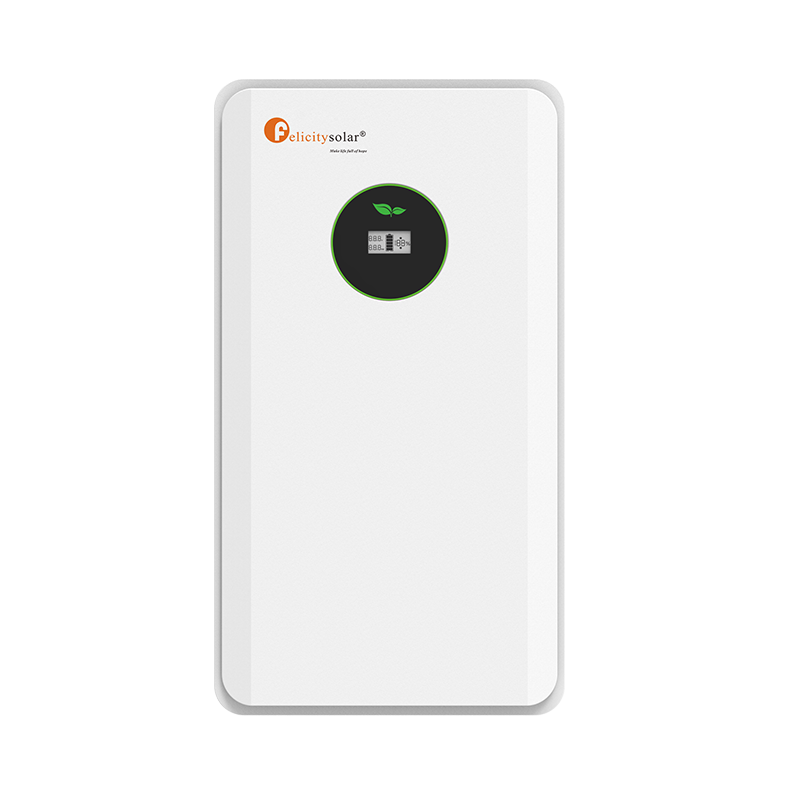

| Feature | - | Felicity FLA48100 5.12kWh 51.2V 100Ah LiFePO4 Batt... |
|---|---|---|
| Overview | ||
| Model | - | FLA48100 |
| Display Type | - | LCD+LED |
| Battery Type | - | LiFePO4 |
| Brand | - | Felicity |
| Power | ||
| Rated Power | - | 5000 W |
| Electrical | ||
| Chemistry | - | LiFePO4 |
| Energy | - | 5.12 KWH |
| Capacity | - | 100 Ah |
| Nominal Voltage | - | 51.2 V |
| MPPT Voltage Range | - | , 44.8-57.6 V |
| Input AC Voltage Range | - | 44.8-57.6V Vac |
| Peak Current (15s) | - | 100 |
| Short Circuit Current (Isc) | - | <100 A |
| Battery Capacity (Wh) | - | 5120 Wh |
| Current Rating | - | 100 A |
| Performance | ||
| Max Charge/Discharge Power (15s) | - | 7, 500 W |
| Float Charge Voltage | - | 51.2 V |
| Max Charging Current | - | 150 A |
| Parallel Capability | - | Max. 15 pcs in Parallel (76.8kWh) |
| Recommended Charge/Discharge Power | - | <5, 000 W |
| Protection | - | Degree, IP21 |
| Ingress Protection | - | IP21 |
| Cycle Life | - | 6000 Cycles |
| Depth of Discharge (DOD) | - | 295 % |
| Connectivity | ||
| Communication | - | RS485/CAN |
| Display | - | Type, LCD+LED |
| Protection | ||
| Certification | - | UN38.3, CE-EMC, UN38.3, CE-EMC, IEC 62619 IEC 62619, CB |
| Physical | ||
| Package Dimensions | - | 782X522X262 mm |
| Product Weight | - | 48 kg |
| Operating Temperature | - | 0°C~+55° C |
| Module Dimensions | - | 663X400X178 mm |
| Product Dimensions | - | 663X400X178 mm |
| Warranty | - | 7 Years |
| Installation | - | Wall-Mounted / Floor-Mounted |
| Operating Temperature Range Discharge | - | 0°C~+55 °C |
| Compatibility | ||
| Brand Compatibility | Not specified | Official: , |
