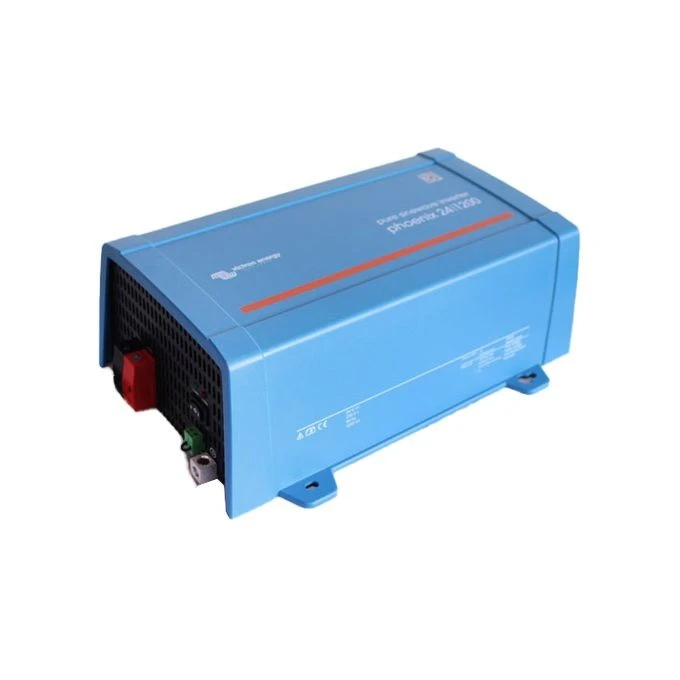

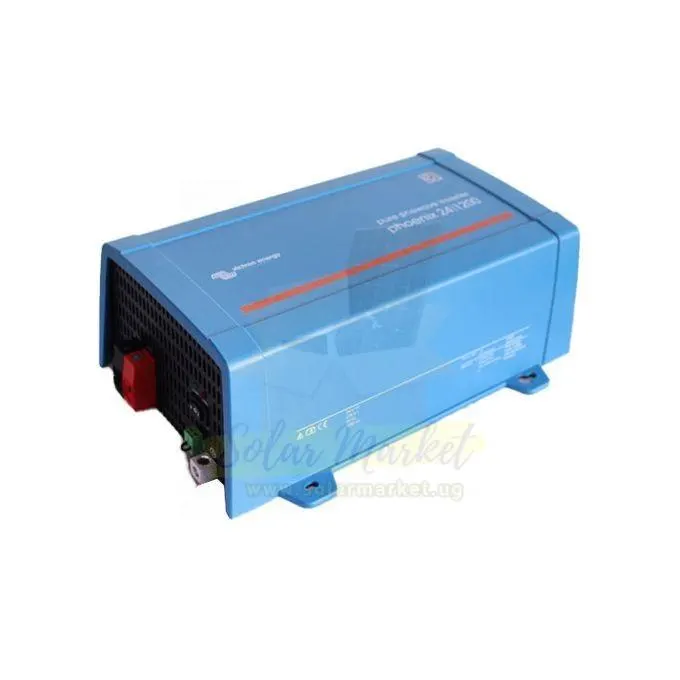

Victron 12/1200 Solar Inverter PSW 1.2kVA 17V for Residential solar, Off-grid homes and, Telecommunications
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
victron

Victron 12/1200 Solar Inverter PSW 1.2kVA 17V for Residential solar, Off-grid homes and, Telecommunications

UGX1,267,920
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX38,038Delivery in 7 days1-yr warranty
Sold by
Masrcorp Solar Uganda ✓
Delivery in 7 days · In stock
UGX1,267,920
Want another price?Only one shop lists this right now. Send one request and other shops reply with their prices.
Ways to payAll options
Pay NowBank Transfer
Warranty and returns
Warranty
1 year · this product
Returns
7 Days · manufacturing defects
The warranty is this product's own (1 year). 7-day return window for manufacturing defects. Contact Masrcorp Solar support with your order reference to arrange an exchange or repair. If the shop doesn't reply to a claim in 48 hours, SolarMarket steps in.
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Brand Victron Model 12/1200
Rated Power 1200VA Nominal Output Frequency 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0.1%
Nominal Voltage 9.2 - 17 V Surge Power 2200W
Product Dimensions 117 x 232 x 327 mm Product Weight 7.4 KG
Efficiency 91% Operating Temperature -40 to +65°C (fan assisted cooling), Derate 1.25% per °C above 40°C
Battery charged detect (adjustable) 14.0V Battery Type connection,Screw terminals
Battery-connection Screw terminals Continuous power at 25°C / 40°C 1200VA
DC low restart and alarm (adjustable) 10.9V DC low shut down (adjustable) 9.3V
EMC EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3 Humidity condensing),max 95%
Humidity (non-condensing) max 95% Ingress Protection IP 21
Input AC Voltage Range 9.2 - 17V Integrated Transfer switch Filax
Material & Colour,Steel chassis and plastic cover (blue Ral 5012) Material & Colour Steel chassis and plastic cover (blue Ral 5012)
Maximum cable cross-section 25mm² / AWG4 Protection IP 21
Remote On/Off Yes Safety EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458
SKU 125 Standard AC outlets 230V: Schuko (CEE 7/4), IEC-320 (male plug included); 120V: Nema 5-15R, GFCI
Zero load power (W) 10W Zero load power in AES mode (W) 1W

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

The Victron 12/1200 Solar Inverter PSW delivers 1.2kVA continuous power at 25°C, making it suitable for residential and light commercial solar installations in Uganda. This low voltage (LV) single phase inverter provides pure sine wave output, ensuring compatibility with sensitive electronics and appliances. With selectable 230VAC or 120VAC output and a wide input voltage range (9.2–17V), it adapts to various battery configurations. The inverter features remote on-off functionality, an automatic transfer switch (Filax), and multiple protection mechanisms for safe operation. Its robust steel chassis and IP21 rating support reliable performance in demanding environments, while ECO mode minimises standby consumption. The Victron 12/1200 is engineered for efficient energy conversion and flexible integration into off-grid or backup solar systems.

About this item

  • PURE SINE WAVE OUTPUT: Delivers stable AC power suitable for sensitive electronics and appliances.
  • LOW VOLTAGE SINGLE PHASE: Operates at 12V DC input, supporting single phase 230V or 120V AC output.
  • REMOTE ON-OFF CAPABILITY: Allows convenient system control and integration with external switches.
  • HIGH EFFICIENCY: Achieves up to 91% efficiency, reducing energy losses in solar setups.
  • ECO MODE: Adjustable settings minimise zero-load power consumption for improved system efficiency.
  • ROBUST PROTECTION: Includes multiple safety features and compliance with international standards.

Applications

  • Residential solar backup systems
  • Off-grid homes and cabins
  • Telecommunications equipment
  • Small business backup power
  • Mobile and remote site installations
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What is the voltage class and phase of the Victron 12/1200 inverter?
The Victron 12/1200 is a low voltage (LV) inverter designed for single phase AC output.
Can the inverter output both 230V and 120V AC?
Yes, the output AC voltage is selectable between 230V and 120V, making it suitable for various appliances.
Is remote on-off control supported?
Yes, the inverter includes remote on-off functionality for integration with external switches or control systems.
What type of appliances can be powered by this inverter?
The pure sine wave output is suitable for sensitive electronics, household appliances, and telecommunications equipment.
Does the inverter include an automatic transfer switch?
Yes, it features a Filax automatic transfer switch for seamless transition between power sources.
What protection features are included?
The inverter offers multiple protection mechanisms, including overload, over-temperature, and short circuit protection.
Is the inverter suitable for off-grid solar systems in Uganda?
Yes, it is designed for off-grid and backup solar applications, supporting reliable power supply in Uganda.
