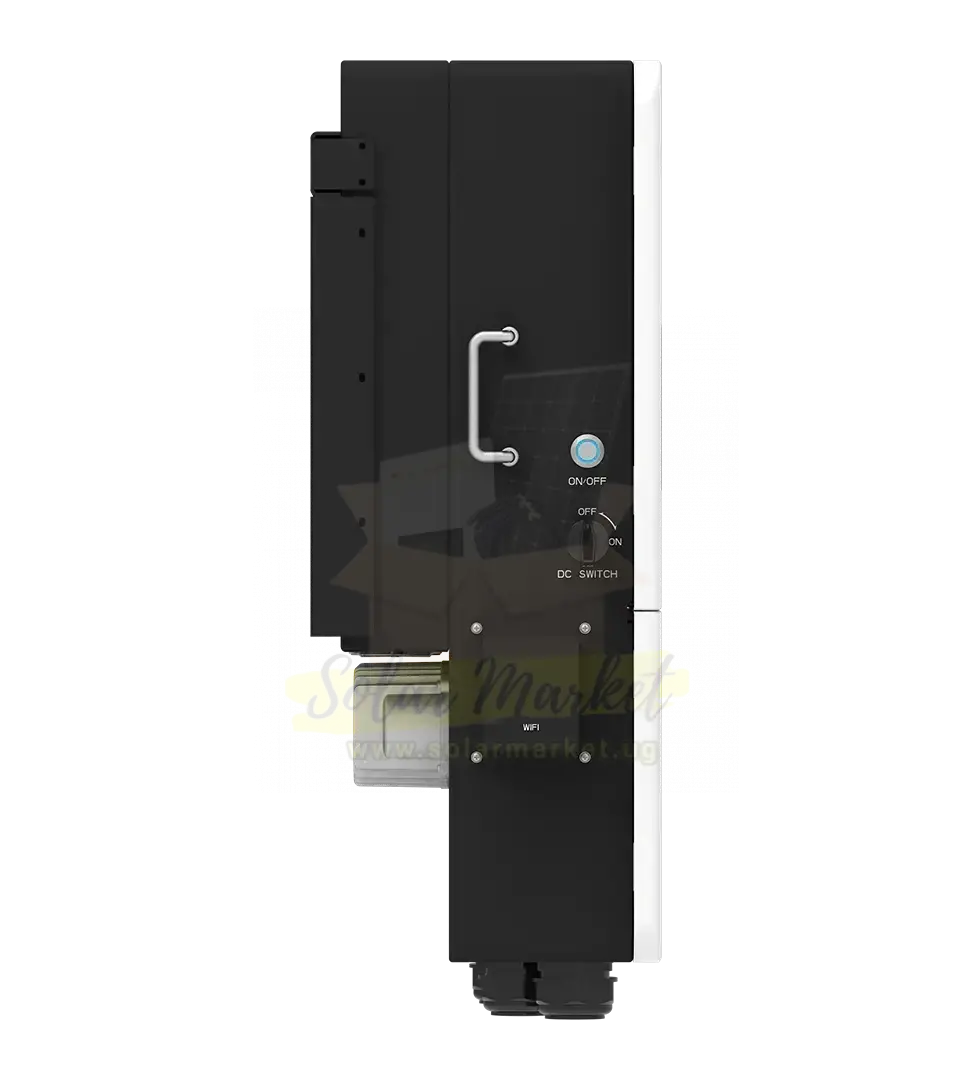

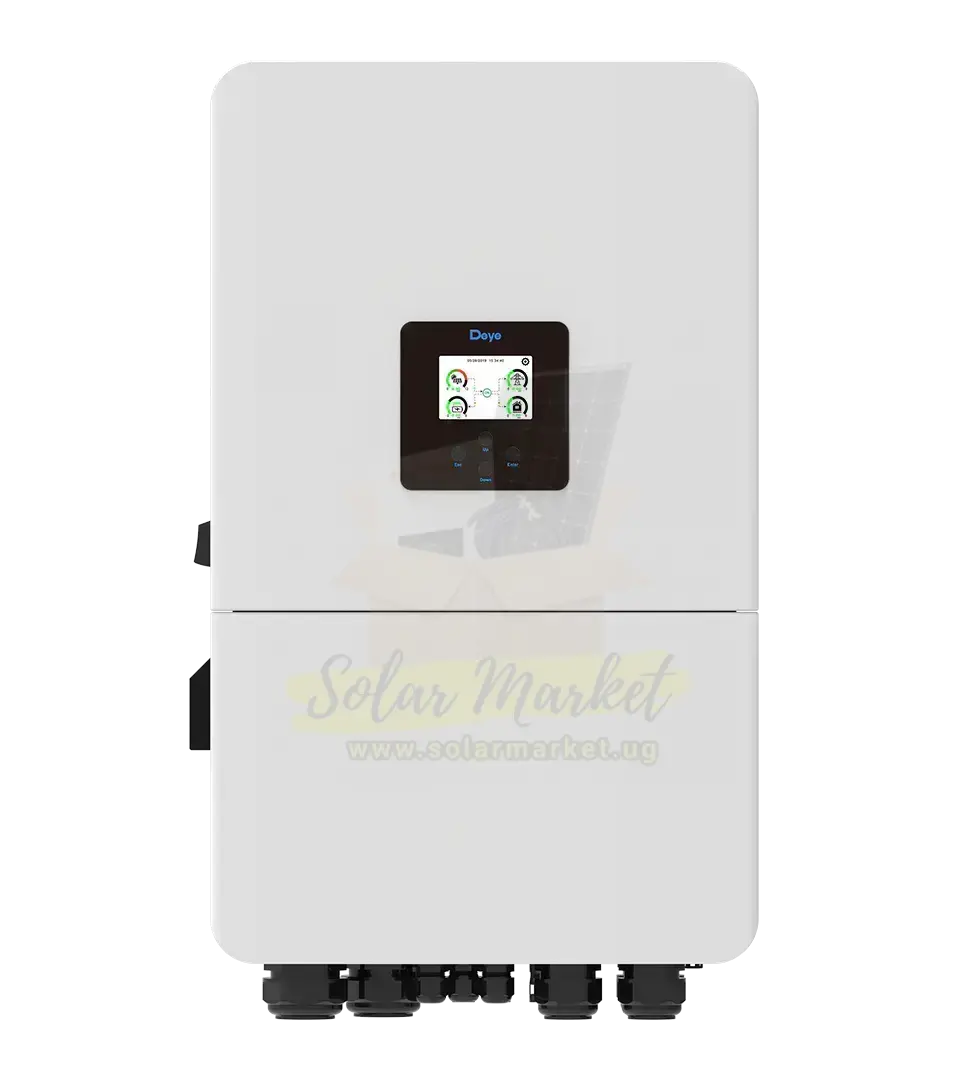

DEYE 20kW Three Phase Hybrid Inverter for Commercial and Industrial Solar Backup 800V PV Input Dual MPPT 160-650V 48V Battery 350A Charge/Discharge IP65 (SUN-20K-SG05LP3-EU-SM2)

Name: DEYE 20kW Three Phase Hybrid Inverter for Commercial and Industrial Solar Backup 800V PV Input Dual MPPT 160-650V 48V Battery 350A Charge/Discharge IP65 (SUN-20K-SG05LP3-EU-SM2)
Brand: Deye
SKU: SM-HYB-DEY-00734
Price: 13503000.00 UGX
Availability: InStock

Deye

0 out of 5 | 0 Ratings | Q&A

About this item

Product spotlights

Highlights: DEYE SUN-20K-SG05LP3-EU-SM2 is a 20kW 800V Three Phase hybrid inverter in Uganda. It supports up to 32kW PV input and is built for Commercial, Three phase grid-tied, Large residential where battery-backed continuity and stable AC output matter

UGX13,503,000

FREE delivery · 7 Days

10 available

Minimum order qty 1

QTY

Compare With Similar capacity Hybrid Inverters

Estimate Shipping Time 7 Days

Inhouse product

Message Seller

Brand Deye

Products from this brand

Product Information

Technical specifications

Brand	DEYE	Model	IP65
Rated Power	20000	Max PV Input Power	40000 W
Max Charging Current	350 A	MPPT Voltage Range	160-650
Nominal Voltage	40-60 V	Surge Power	d)(W),"2 times of rated power, 10s"
Product Dimensions	456×750×268.5 mm	Product Weight	51.9 KG
Communication	RS485/RS232/CAN	Efficiency	97.6%
Operating Temperature	Range (℃),"-40 to +60℃, >45℃ Derating"	Warranty	5 Years/10 Years
AC Output Rated Current	30.4/29	Battery Type	Lead-acid or Lithium-ion
Chemistry	Lead-acid	Current Rating	350
DC Injection Current	<0.5% In	Input AC Voltage Range	220/380V, 230/400V 0.85Un-1.1Un
Inverter Type	Non-Isolated	Junction Box (IP Rating)	IP 65
Max AC Input Voltage	800 V	Max PV Input Current	36+36
Max. AC Input/Output Apparent Power (VA)	22000	Max. Continuous AC Passthrough	70 A
Max. PV short circuit current	350	Monitor Module	GPRS/WIFI/Bluetooth/4G/LAN(optional)
Number of Battery Modules	1	Over Voltage Category	OVC II(DC), OVC III(AC)
Permissible Altitude	0-100%	Power Factor	0.8 leading to 0.8 lagging
Protection	TYPE II(DC), TYPE II(AC)	PV Start-up Voltage	160 V
Rated AC Input/Output Active Power (W)	20000 W	SKU	SM-HYB-DEY-00734
Start Voltage	up Voltage (V),160

Notice a wrong or outdated datasheet? Help us fix it.

Freelancers

Verified

Verified Solar Installers for this Product

View All

Ndawula Muhamadi

Hybrid Solar Wholesale Supplier & Installer Expert

Masaka

Solar Installation Solar System Design Solar Energy Audits

View Profile

Francis Ekapuloni

Professional Solar Expert

Kampala

Solar Installation Solar Energy Audits

View Profile

Kibozeeyi John

Skilled Solar Installer – Expertise in Felicity, CWorth, & other quality brands

Kampala

Solar Installation Solar Panel Cleaning Solar System Design

View Profile

Kizito Vincent

I am a technician dealing in hydro and solar power, security systems, networking...

Kampala

IT Support Electrical Repairs Battery Wiring

View Profile

ANITA

Solar system installation

Kampala

Electrical Repairs Appliance Repair Solar Installation

View Profile

Osama Mathew

Solar | water pumps | Backup systems

Kampala

Lighting Troubleshooting CAD Design

View Profile

WASSWA Emmy

Solar installer

Bugiri

Electrical Repairs Solar System Design Electrical Installation

View Profile

Tamale Muhamad

Expert Solar Systems Designer & Installer – Powering Your Future!

Kampala

Solar Installation Solar Panel Cleaning Solar Water heater

View Profile

ETIENE MAATE

ElectroMechanical Engineer

Kampala

Project Management Solar Water heater Solar System Design

View Profile

Okitwi Francis

Certified solar technician based in Tororo

Tororo

Solar Installation Inverter Setup Solar System Design

View Profile

Swipe/scroll to see more →

Description

Specs & details

Overview

DEYE SUN-20K-SG05LP3-EU-SM2 is a 20kW 800V Three Phase hybrid inverter for Uganda power conditions. It supports up to 32kW PV input and is suitable for Commercial, Three phase grid-tied, Large residential where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

SYSTEM TOPOLOGY: Three Phase architecture for compliant solar system design.
THREE PHASE OUTPUT: Delivers 20kW rated active power with 22kVA apparent power at 220/380V or 230/400V, suitable for commercial and industrial three phase loads.
DUAL MPPT TRACKING: Two independent MPPT channels with 160-650V range and 99% efficiency maximize energy harvest from different roof orientations or string configurations.
HIGH PV INPUT CAPACITY: Accepts up to 32kW of PV power (40kW peak) with 800V maximum input voltage, supporting large solar arrays for high-yield systems.
48V BATTERY COMPATIBILITY: Works with lead-acid or lithium-ion batteries at 40-60V range, with 350A charge and discharge current for rapid energy storage and retrieval.
IP65 OUTDOOR RATING: Weatherproof enclosure allows installation outdoors or in dusty environments without additional shelter, ideal for Ugandan site conditions.

What's Included

DEYE SUN-20K-SG05LP3-EU-SM2 Three Phase Hybrid Inverter
Mounting bracket and hardware
Communication cable (RS485)
User manual and installation guide
Warranty card

Applications

Commercial and industrial solar backup systems
Three phase grid-tied solar installations with battery storage
Large residential estates requiring three phase power
Agricultural processing facilities with three phase equipment
Small to medium manufacturing operations
Office buildings and retail complexes

Product FAQs

DEYE SUN-20K-SG05LP3-EU-SM2 is a 20kW Three Phase hybrid inverter in Uganda. Key specs include battery voltage range 48V, max PV input voltage 800, max PV input power 32kW, rated AC output 20kW, communication RS485/CAN, monitoring WiFi Monitoring, warranty 5 Years/10 Years.

Browse live offers

For DEYE SUN-20K-SG05LP3-EU-SM2, use MPPT/operating voltage range 160-650, max PV input voltage 800, and max PV input power 32kW when designing strings.

Browse live offers Find technicians

DEYE SUN-20K-SG05LP3-EU-SM2 allows up to 32kW PV input power. Use MPPT range 160-650, max PV input voltage 800 for string sizing checks.

Browse live offers

DEYE SUN-20K-SG05LP3-EU-SM2 is built for 48V battery systems. The battery voltage range is 48V, with maximum charging current 350 and maximum discharging current 350.

Browse live offers

DEYE SUN-20K-SG05LP3-EU-SM2 has a rated AC output of 20kW on Three Phase output. It operates with grid frequency the listed grid frequency and AC voltage range 220/380V, 230/400V 0.85Un-1.1Un. If needed, use 20000 for compatibility checks.

Browse live offers Request quotes Find technicians

Compare verified seller pricing, warranty terms, authenticity, and installer support for DEYE SUN-20K-SG05LP3-EU-SM2. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.
